Fire-Lite CMP-2401B User Manual

Controls, Indicators and Operation
12
Document #50907 Rev.A1 12/03/02 P/N 50907:A1
1.3 Controls, Indicators and Operation
1.3.1 Front Panel Slide Switches
All switches are illustrated in their normal position. The function of each switch is listed below.
System Reset
The function of this nonlatching switch is:
1.
to reset the FACP and the smoke detectors provided the alarm condition has been cleared and 60 seconds has
elapsed since the first alarm
2.
LED test
Signal Silence - Zone 1
Placing the switch in the Silence position will silence the Notification Appliance Circuit if 60 seconds has elapsed
since the first alarm. A trouble condition is indicated while the switch is in the Silence position. If an alarm
occurs on the silenced zone, the alarm LED will indicate the alarm condition and the alarm relay will transfer.
Signal Silence - Zone 2 (CMP-2402B only)
Placing the switch in the Silence position will silence the Notification Appliance Circuit if 60 seconds has elapsed
since the first alarm. A trouble condition is indicated while the switch is in the Silence position. If an alarm
occurs on the silenced zone, the alarm LED will indicate the alarm condition and the alarm relay will transfer.
Trouble Silence
This latching, two-position switch, will silence the piezo sounder. The trouble LED will continue to indicate a
trouble condition. An intermittent tone will sound when the trouble is cleared to indicate that this switch should
be returned to its normal position.
SIGNAL
OUTPUT
CUT IF 4X
OPTION
BOARD IS
PRE SENT
INI TIAT
ZONE 1
INI TIAT
ZONE 2
TBL SI LE NCE
SIG SILENCE
ZONE 1
SIG SILENCE
ZONE 2
SYSTEM RES ET
-
-
-
+
+
+
TB2
R14
SW4
SW2
SW1
SW3

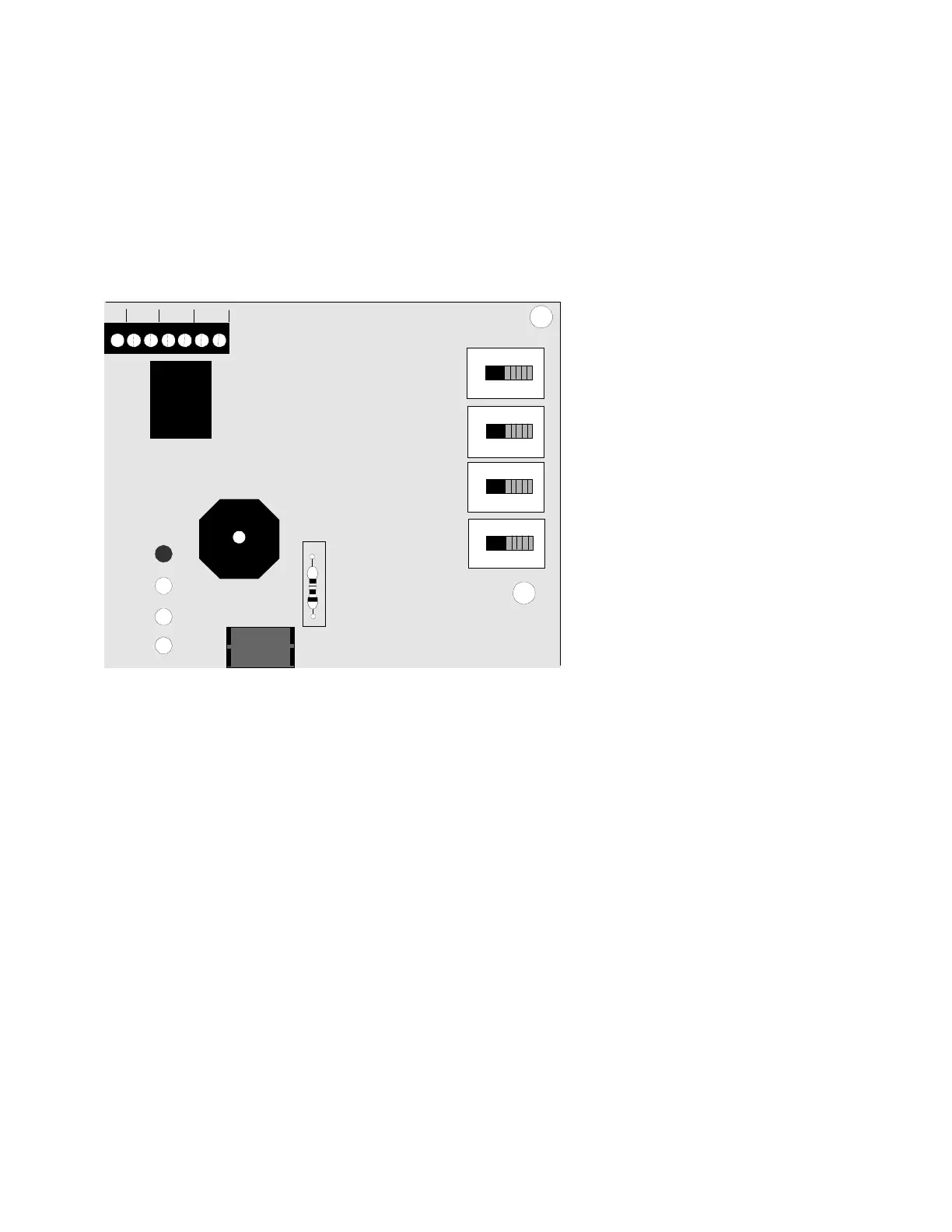

FIGURE 1-2:
CMP-2401B/CMP-2402B Control Switches
System Reset
Signal Silence Zone 1
Signal Silence Zone 2
(CMP-2402B only)
Trouble Silence
2402SWTC.CDR
