Fire-Lite CMP-2401B User Manual

Document #50907 Rev. A1 12/03/02 P/N 50907:A1
25
Installation of Optional Module
2.7.2 RTB - Remote Trouble Buzzer
The RTB is a Remote Trouble Buzzer which provides a green AC Power LED and a yellow Trouble LED along
with a piezo sounder, all of which mimic the condition of the control panel. The RTB can be mounted remotely in
a single-gang electrical box. Four wires are required to connect the RTB to the CMP-2401B/CMP-2402B control
panel as illustrated in Figure 2-11.
F2
J5
TB1
GND
+24V
REG
RES
BUZ TROUBLE
SIGNAL
OUTPUT
INI TIAT
ZONE 1
INI TIAT
ZONE 2
ALARM
NC NCCC
-
-
-
+
+
+
NO
NO
TBLAC
TB2

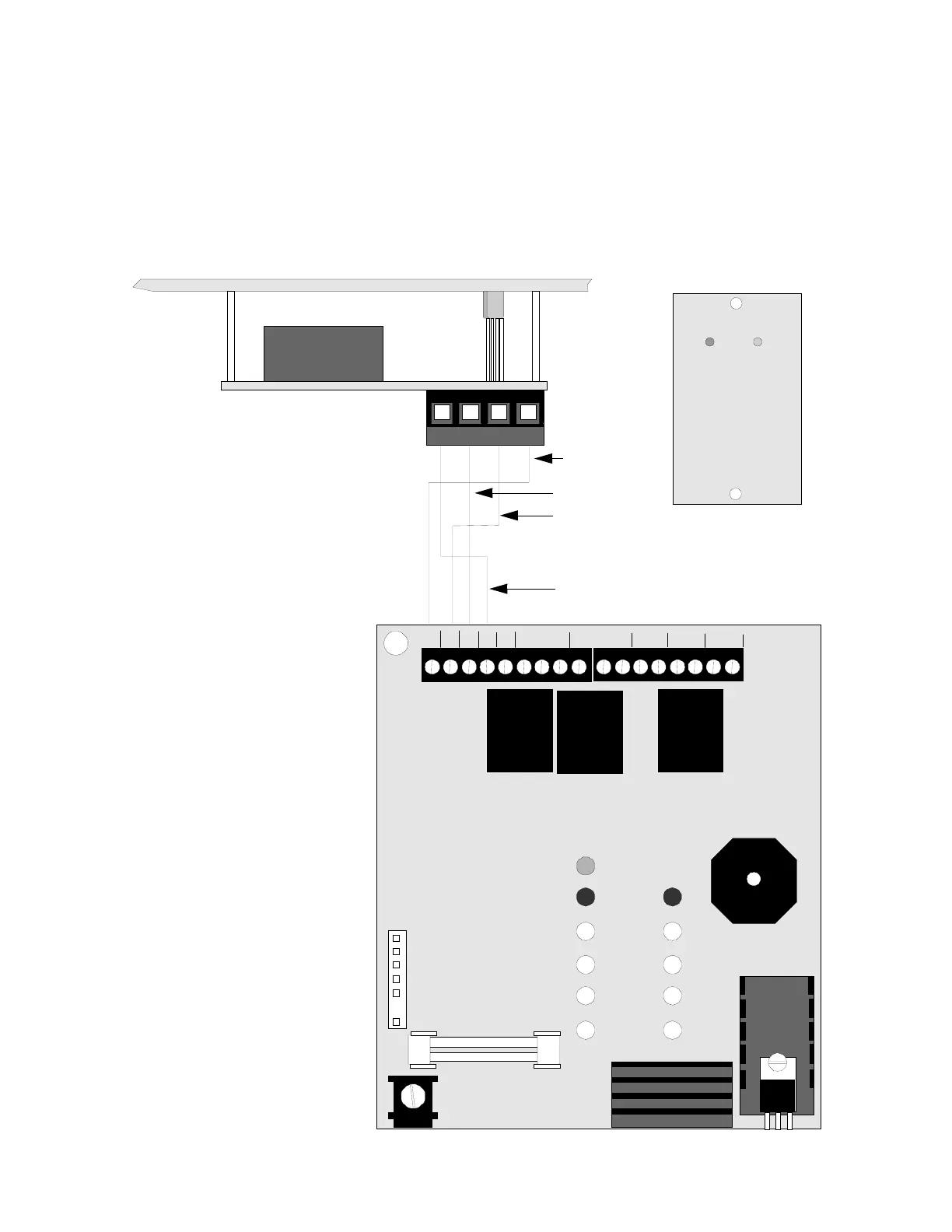

FIGURE 2-11:
RTB Remote Trouble Buzzer Connection
Ground
Trouble LED
AC Power LED
Buzzer
CMP-2401B/CMP-2402B
RTB Remote Trouble Buzzer
2402RTB.CDR
RTBBUZZ.CDR
