13. PCB Layouts
Figure 13 illustrates the control board for the DUO-CEL 8-zone panel with the PCB cover fitted.
ZONE 1
Z1 + Z1 –
ZONE 2
Z2+ Z2 –
ZONE 3
Z3+ Z3 –
ZONE 4
Z4+ Z4 –
ZONE 5
Z5+ Z5 –
ZONE 6
Z6+ Z6 –
ZONE 7
Z7+ Z7 –
ZONE 8
Z8+ Z8 –
FIRE SIGNAL
+ –
FIRE RELAY
N/O P N/C
FAULT RELAY
N/O P N/C
REMOTE
I/P 0V DIS. EVAC. BUZ.
AUX 0.25A
24V 0V
REPEATER
A B BA0V24V
ALARM CIRCUITS
AL1+ AL1 – AL2+ AL2 – AL3+ AL3 – AL4+ AL4 –
ZONE INPUTS.
Also provides
outputs for Twin-
Wire Sounders on
Twin-Wire panels.
FIRE
ROUTING
FIRE
RELAY
FAULT
RELAY
REMOTE
CONTROL
INPUT:
Class Change
Alert
Evacuate
Silence Alarms
Reset System
REMOTE
OUTPUTS:
Disabled
Evacuate
Buzzer Active
ALARM CIRCUITS
FUSED
24VDC
OUTPUT
RS485
COMMS.
TERMINALS
UNFUSED
24VDC
OUTPUT
BATTERY
LEADS
THERMISTOR
LEAD
POWER
SUPPLY
LEAD
BATTERY
FUSE
ALARM
COUNTER
RESET
BUTTON
REPEATER
FAULT LEDs
GENERAL LED
INDICATORS
USER
CONTROLS
INTERNAL
BUZZER
MICROCONTROLLER
PROGRAMMING
SOCKET
ZONAL FIRE LEDs
ZONAL FAULT LEDs
MOUNTING
TAB
PCB
COVER
PCB
CONFIGURATION
DIL SWITCHES
EARTH FAULT
DISABLE LINK
ZONE
LOCATION
INSERT
ACCESS KEY
ENTRY
REMOTE O/PS
SOUNDER FLT / DIS / TST
FIRE SIGNAL FLT / DIS / TST

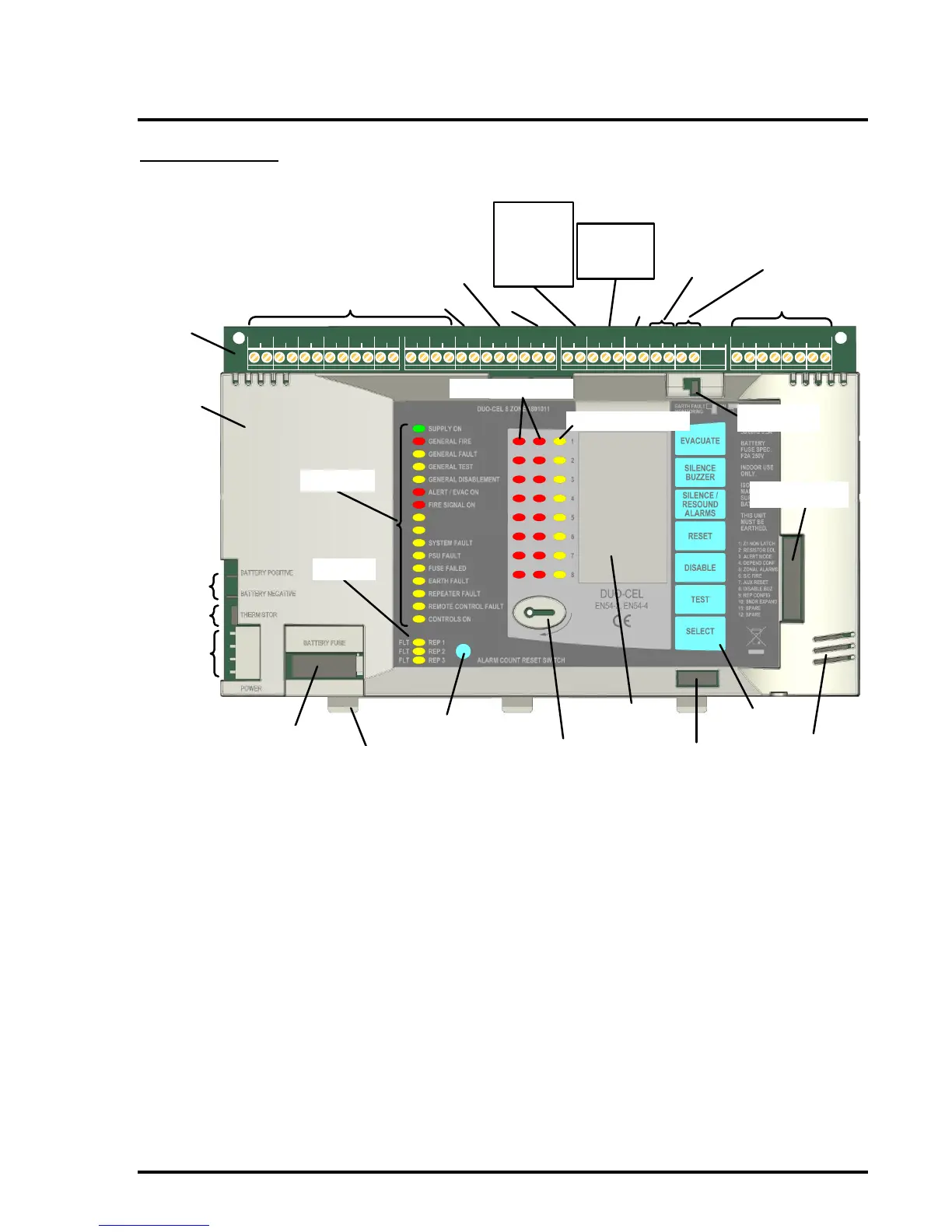

Figure 13 – Panel control board and PCB cover
Note:
The Microcontroller programming socket is for use during manufacturing only and should not have any links
fitted across any of the pins. Improper use of the connector may result in permanent damage to the control
board.
