FireClass DUO-CEL - Circuit Connection Details

EQUIPMENT: DUO-CEL WRITTEN BY: RKP
PUBLICATION: OM_DUO-CEL_INST CHECKED BY: AJC
ISSUE No. & DATE: 2 13/10/10
PAGE 26 of 30

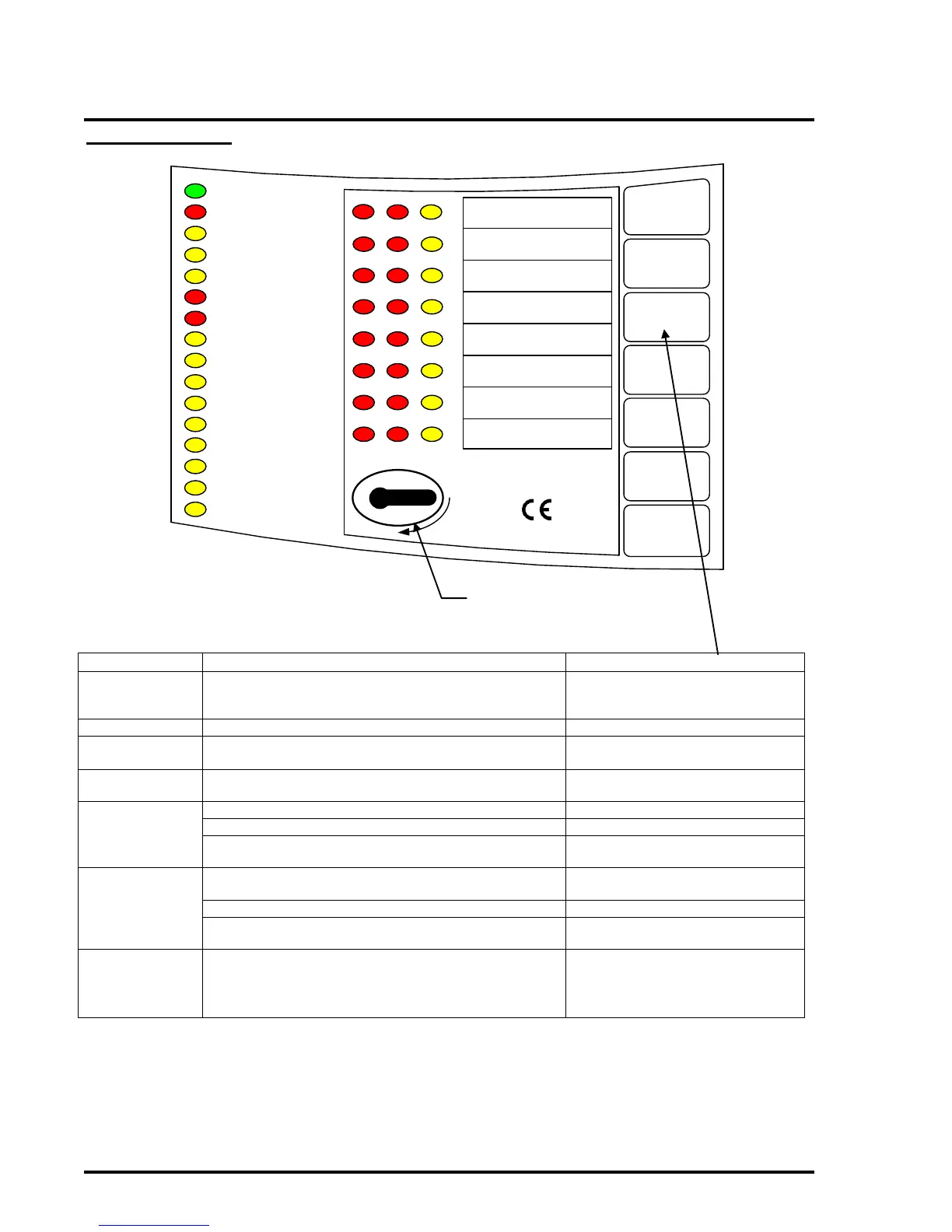

12. User Controls
SILENCE
BUZZER
SILENCE/
RESOUND
ALARMS
RESET
DISABLE
TEST
SELECT
EVACUATE
1
2
3
4
5
6
7
8
DUO-CEL
SUPPLY ON
GENERAL FIRE
GENERAL FAULT
GENERAL TEST
GENERAL DISABLEMENT
ALERT/EVAC ON
FIRE SIGNAL ON
FIRE SIGNAL FLT / DIS / TST
SOUNDER FLT / DIS / TST
SYSTEM FAULT
PSU FAULT
FUSE FAILED
EARTH FAULT
REPEATER FAULT
REMOTE CONTROL FAULT
CONTROLS ON
Switch
Functionality
Button Availability
Evacuate
Operates all sounders continuously and illuminates the
Alert/Evac On LED until the Silence/Resound Alarms
button is operated
When controls are unlocked.
Silence Buzzer
Silences the internal buzzer on the Panel & Repeaters.
When controls are locked or unlocked
Silence/Resound
Alarms
When any sounders are active, press to silence sounders.
Press again to resound the silenced sounders.
When controls are unlocked
Reset
Press to clear any fault & alarm conditions and return the
panel to the quiescent state
When controls are unlocked
Disable
Displays Alarm Counter
When controls are locked
Illuminates only the currently disabled circuits
When controls are unlocked
Toggles the selected circuit between Disabled & Enabled
states.
When controls are unlocked and in
circuit select mode
Test
Press to illuminate all LEDs and sound the buzzer for 5
seconds.
When controls are locked
Illuminates only the circuits currently in test
When controls are unlocked
Toggles the selected circuit between Test & Normal states.
When controls are unlocked and in
circuit select mode
Select
First operation enables the circuit select mode; subsequent
operations move the flashing cursor through the available
circuits until the last circuit, then exits the circuit select
mode.
When controls are unlocked
Access Controls Keyswitch
