FireClass DUO-CEL - Diagram; Iring Diagram

EQUIPMENT: DUO-CEL WRITTEN BY: RKP
PUBLICATION: OM_DUO-CEL_INST CHECKED BY: AJC
ISSUE No. & DATE: 2 13/10/10
PAGE 7 of 30
Detector.
Smoke or Heat
Detector with
diode base
ZONE 1
Z1 + Z1 –
+
-
+
-
+
-
+
10uF 35V
end-of-line Capacitor
1 2
1A 2A
Manual Call Point.
ALERT:
CP200, CP230,
CP260
or equivalent with
internal resistor
between 470R & 1K
EVACUATE:
CP211
Or equivalent with
internal resistor
between 360R & 220R

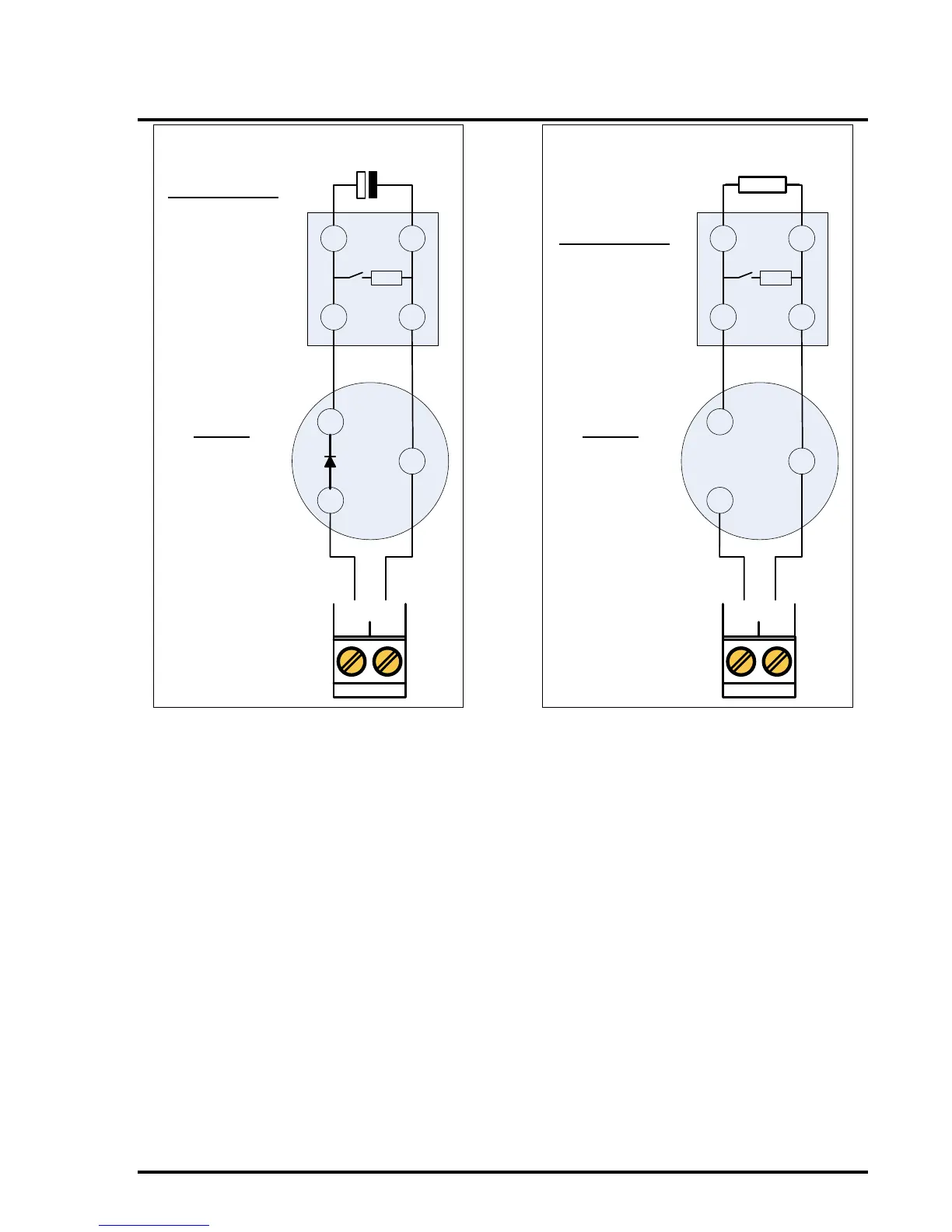

Figure 6 – Standard Zone Wiring Diagram
Detector.
Smoke or Heat
Detector without
diode base
ZONE 1
Z1 + Z1 –
+
-
+
-
+
-
+
6K8 to 3K9 (¼ 4W)
end-of-line resistor
1 2
1A 2A
Manual Call Point.
CP200, CP211,
CP230, CP260,
or equivalent with
internal resistor
between 220R & 1K
Figure 7 – Resistor EOL Zone Wiring Diagram
