EQUIPMENT: FIRECLASS DUO -CEL WRITTEN BY: RKP
PUBLICATION: OM_FC_DUO-CEL_INST CHECKED BY: AP
ISSUE No. & DATE: 0 01/03/12
PAGE 7 of 29

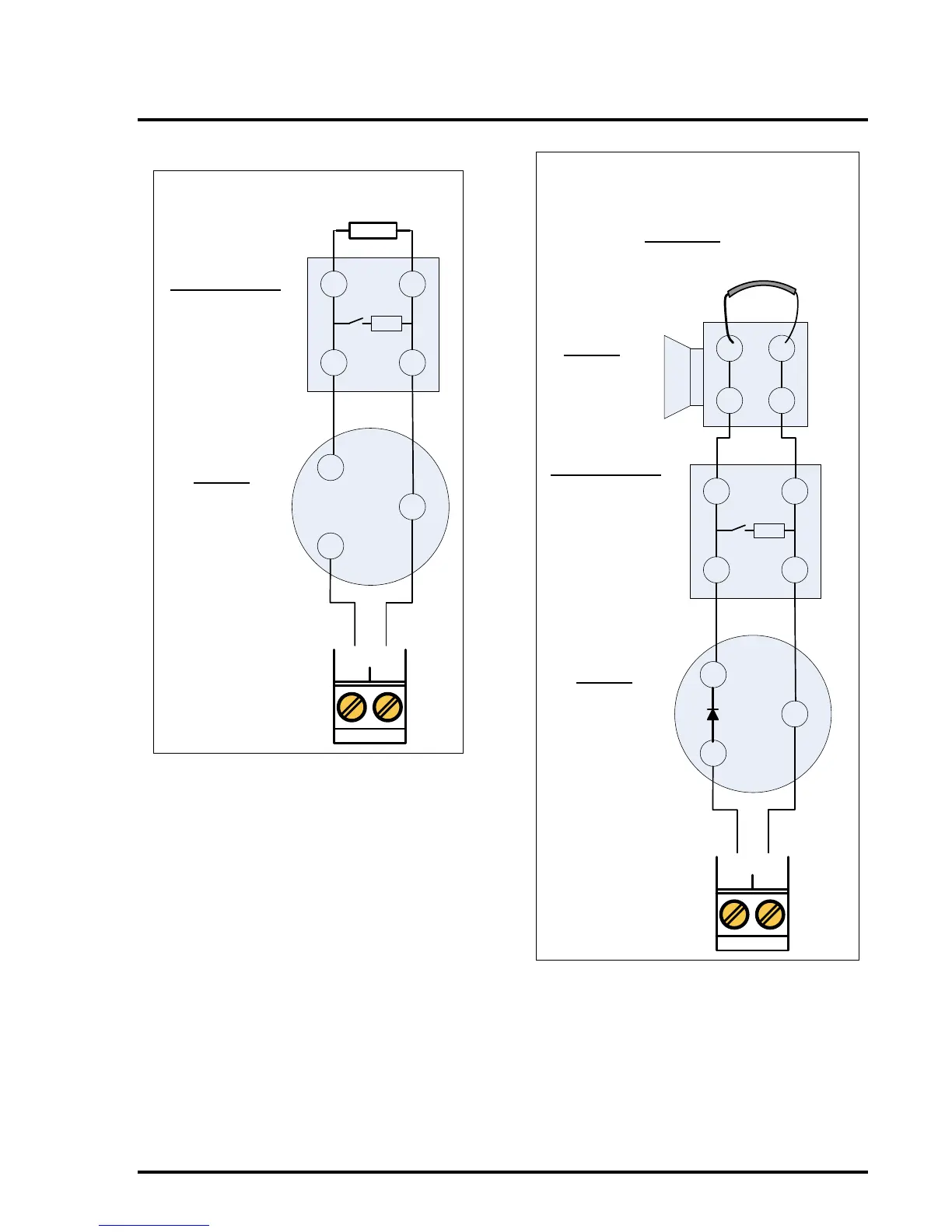

Figure 7 – Resistor EOL Zone Wiring
Diagram
Detector.
Smoke or Heat
Detector without
diode base
ZONE 1
Z1 + Z1 –
+
-
+
-
+
-
+
6K8 to 3K9 (¼ 4W)
end-of-line resistor
1 2
1A 2A
Manual Call Point.
CP200, CP211,
CP230, CP260,
or equivalent with
internal resistor
between 220R & 1K
Figure 8 – Twin-Wire Zone Wiring Diagram
Detector.
Smoke or Heat
Detector with
1N4002 diode
base
ZONE 1
Z1 + Z1 –
+
-
+
-
+
-
+
1 2
1A 2A
Manual Call Point.
ALERT:
CP200, CP230,
CP260
or equivalent with
internal resistor
between 470R & 1K
EVACUATE:
CP211 ONLY
-
-
+
+
Sounder.
Fulleon twin-wire
sounder
EOL Device.
Zener & Resistor
