4.2 Pre-installation Checks
1. Carefully remove the control panel from the
packing and lay the panel on a suitable flat
surface.
2. Undo the three screws holding the front cover
to the back box (one at the top, two at the
bottom).
3. Remove the front cover and return it to the
packing box.
4. Locate the spares bag and check that the
following items are present.
a) Set of battery leads (1 each of Red,
Black & Blue)
b) Plastic keys for control panel control
access (2-off).
c) Rubber bung for Keyswitch.
d) 10uF capacitors (or composite zone
EOL devices for twin-wire panels), 1 for
each zone. These may already be fitted
in the panel terminals.
e) Up to six 10k resistors (1 for Fire Signal
output EOL, 1 for Remote Input EOL, 4
for Alarm EOL dependant on number of
alarm circuits)
f) 1 each of 2k2, 220R, 1k, 4k7 and 470R
resistors for the Remote Input Switches.
g) 1 Terminal cover-plate for the power
supply unit.
h) 1 Cable Tie for holding the mains cable
i) 1 blank insert for zone text
j) 1 Battery Fuse, 2A fast blow 20mm
glass.
k) 1 Battery clamp (may already be fitted in
panel)
All items, except for the battery fuse, will be
required for the installation of the panel.
4.2.1 DUO-CEL Panel Installation
Instructions
The front cover should have been removed as
detailed above in the pre-installation checks. The
front cover is not required during installation and
commissioning, so leave it safely stored in the
original packing box.
1. Remove the control board complete with
cover as follows:
a. Disconnect the two power leads at the
left-hand side of the control board.
b. Undo the two screws at the top of the
control board and remove the control
board complete with the cover. Place
the control board & cover inside the
original packing box for safety.
c. The two screws can be re-inserted into
the threaded bushes for convenience.
The power supply should not be removed.
2. Identify the indented holes in the back of the
enclosure that are used to mount the
enclosure.
3. Determine the best location for the
enclosure. This should be dust & moisture
free, not subject to mechanical vibration or
shock. The panel should be mounted at least
2 metres away from any radio transmitting
equipment such as pager systems and other
wireless equipment.
4. Position the enclosure against the wall and
mark the location of the keyhole at the top-
centre on the back box.
5. Drill and loosely fix the enclosure using
suitable fixings (not supplied).
6. Level the enclosure and mark the four fixing
holes at each corner of the back box.
7. Drill and firmly fix the enclosure to the wall.

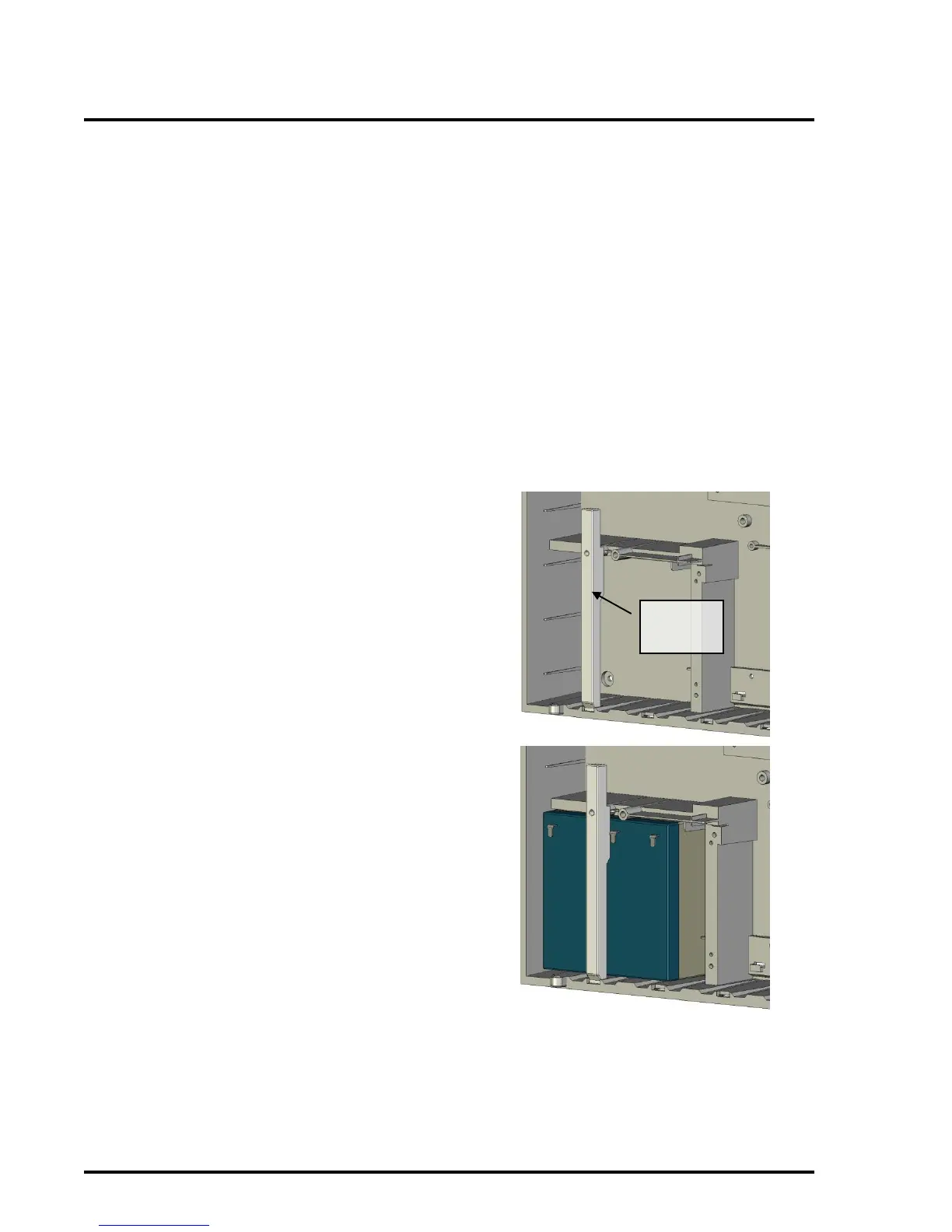

8. Remove the battery clamp which is held in by
one screw (if fitted).
9. Insert the two 3.4Ah Powersonic batteries,
positioning them with the spade terminals at
the top.
10. Fix the battery clamp back into position to
firmly hold the batteries.
11. Attach the black battery lead to the black
spade terminal on the right-hand battery. Do
not connect any other battery leads.
