FireClass FC501 Series - HELP Key; Auto Addressing Procedure

+
At the first start-up the panel will prompt for the
User Interface language, press the cursor keys to
select the Language and then press ENTER.
Later:
Ø
press the 1 key to enter in PROGRAMMING mode.
Ø
Enter the Installer PIN (00000) at default, each digit
will be masked by
* (asterisk).
9. Select option 8: SYSTEM; LANGUAGE: the system
language selection page.
10. Press Right key to select the next language.
11. Press Left key to select the previous language.
12. Press ENTER Key accepts the selection.
n
HELP key
To explain the information on the LCD display in the dif
-
ferent pages, a embedded help feature is present on
the panel LCD display.
For each User Interface page active, when the help key
is pressed the full text in memory will be scrolled, line by
line, in the window of Help page.
A dedicated text will be present in every page of User in
-
terface.
n
Auto addressing procedure
For auto-addressing is intended a sequence of opera
-
tion that allow to the installer to make all the devices ac
-
cessible by the panel without executing any previous
configuration action on the devices , during their instal
-
lation phase (device acquire phase).
ENGLISH 17
DEVICE MAPPING RUNNING 0=stop
Evt time type add counter 017
016 10:15:33 PH L1:---
017 10:17:19 PH L1:---
AUTO ADDRESSING END
Found: 018 detectors, 004 modules
ENT to DEVICE MAPPING, ESC to exit
DEVICE MAPPING STOPPED 1=run
Evt time type add done:000/022
001>10:15:33 PH L1:---< enter the add.
002 10:17:19 PH L1:---
DEVICE MAPPING STOPPED 1=run
Evt time type add done:017/022
--- unique RIM L1:---< enter the add.
--- unique LPAV L2:---
DEVICE MAPPING STOPPED 1=run
Evt time type add done:001/022
001>10:15:33 PH L1:089< ENT to config.
002 10:17:19 PH L1:---
DEVICE MAPPING STOPPED 1=run
Evt time type add done:020/022
--->*active*LPSB L3:---<enter the add.
--- --:--:--LPSB L3:---
DEVICE MAPPING STOPPED 1=run
Evt time type add done:018/022
--->unique RIM L1:015< ENT to config.
--- unique LPAV L2:---
DEVICE MAPPING STOPPED 1=run
Evt time type add done:021/022
--->--:--:--LPSB L3:005<ENT to config.
--- --:--:--LPSB L3:---
EXIT
MAIN PAGE
DEVICE MAPPING PHASE
(charge of the Installer)
BASIC DEVICE
CONFIGURATION PHASE
Notes:
AUTO ADDRESSING RUNNING
PLEASE WAIT
ESC to exit
FC501 panel Lev.3: Program
Detector: 50 Modules: 44
Iloop=073 mA (400ma MAX)
Not addressed dev.> ENT to AUTO-ADDRESS
PANEL IS READY TO WORK
AT THIS TIME
(with the default basic programming)
MS: Det 089 lev.3 :PROGRAM
WORKING MODE Master panel
[First flo ]
^
MS: Det 089 lev.3 :PROGRAM
DEVICE NAME Master panel
MS: Det 089 lev.3 :PROGRAM
ASSIGNED ZONE Master panel
[First flo ]
^
MS: Det 089 lev.3 :PROGRAM
DEVICE NAME Master panel
[First flo ]
^
MS: Det 015 lev.3 :PROGRAM
TRIGGER ZONE EVENT Master panel
[First flo ]
^
MS: Det 089 lev.3 :PROGRAM
DEVICE NAME Master panel
MS: Det 015 lev.3 :PROGRAM
TRIGGER ZONE#1 Master panel
[First flo ]
^
MS: Det 089 lev.3 :PROGRAM
DEVICE NAME Master panel
MS: Det 015 lev.3 :PROGRAM
TRIGGER ZONE#1 Master panel
[First flo ]
^
MS: Det 015 lev.3 :PROGRAM
DEVICE NAME Master panel
[First flo ]
^
MS: Det 005 lev.3 :PROGRAM
TRIGGER ZONE EVENT Master panel
[First flo ]
^
MS: Det 089 lev.3 :PROGRAM
DEVICE NAME Master panel
MS: Det 005 lev.3 :PROGRAM
TRIGGER ZONE#1 Master panel
[First flo ]
^
MS: Det 089 lev.3 :PROGRAM
DEVICE NAME Master panel
MS: Det 005 lev.3 :PROGRAM
TRIGGER ZONE#1 Master panel
[First flo ]
^
MS: Det 005 lev.3 :PROGRAM
DEVICE NAME Master panel
[First flo ]
^
BY WALKING
(Panel +installer)
ESC
ESC
ESC
0
]
EXIT
MAIN PAGE
DEVICE ACQUIRING
(charge of the Panel)
BY DEVICE
“Unique”, in the time field, indicates that it is the only device of it's type on the loop.
For example if only one FC410DDM module is used in the system, it is tagged as “Unique”. so it is not
necessary to activate it , the installer knows where it is.
“Active”, in the time field, indicates that the relevant device is active, it is applicable ONLY to the output
device type like sounders, beacons, SNM modules, etc.,
When the installer, scanning the list of previously auto-addressed devices, reaches an output-only device
type, this device becomes active (a sounder starts do sound, a beacon starts to flash, an output module
illuminates its LED) until a new device is selected or the permanent address is entered. In this way it will be
p
ossible to locate where the device is.
EXIT
FAULT PAGE
(not addressable devices)
ESC
EXIT
FAULT PAGE
(not addressable devices)

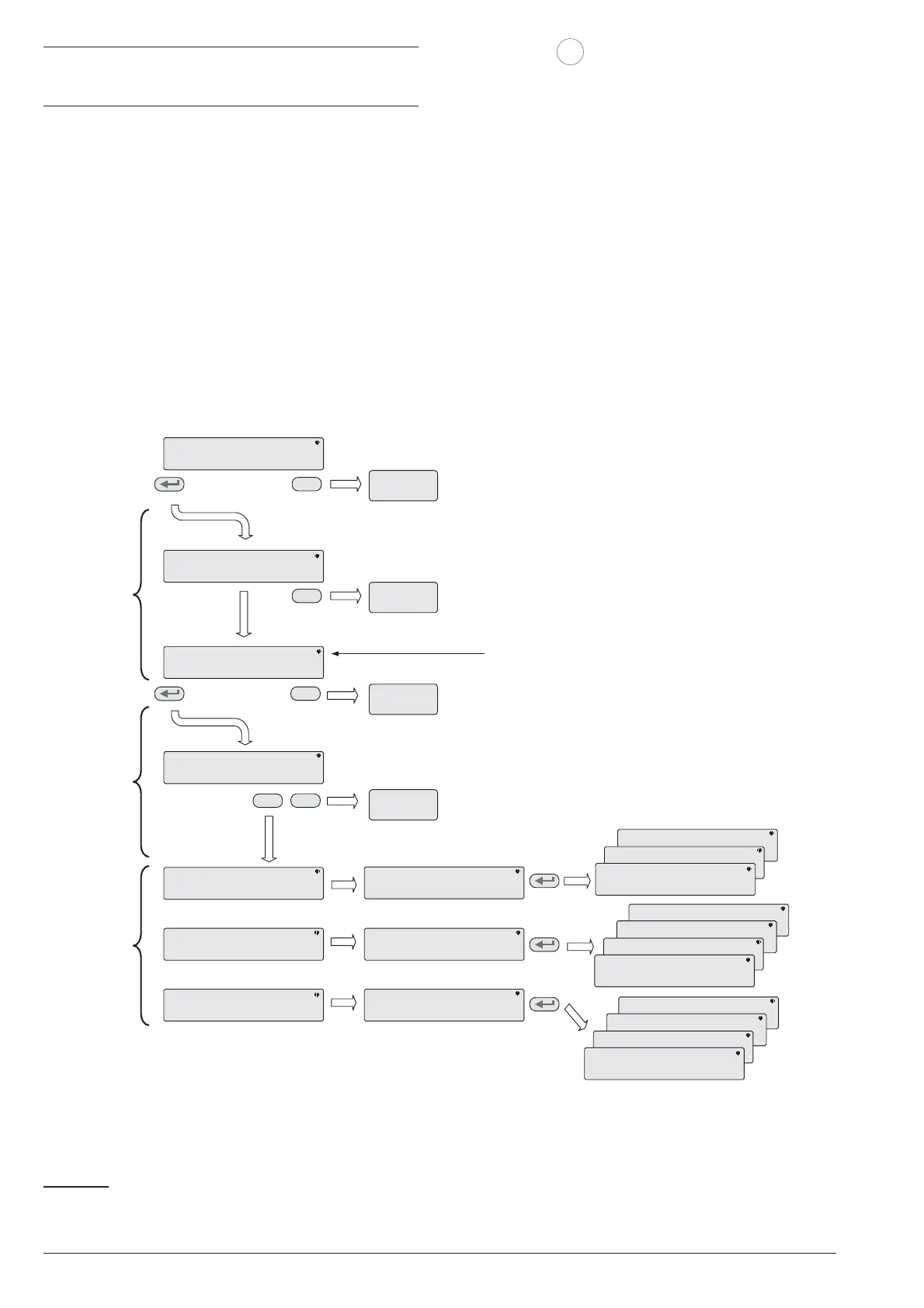

Figure 6 Autoaddressing procedure
?
