MANUAL for the basic control panel | CCB2.0
18

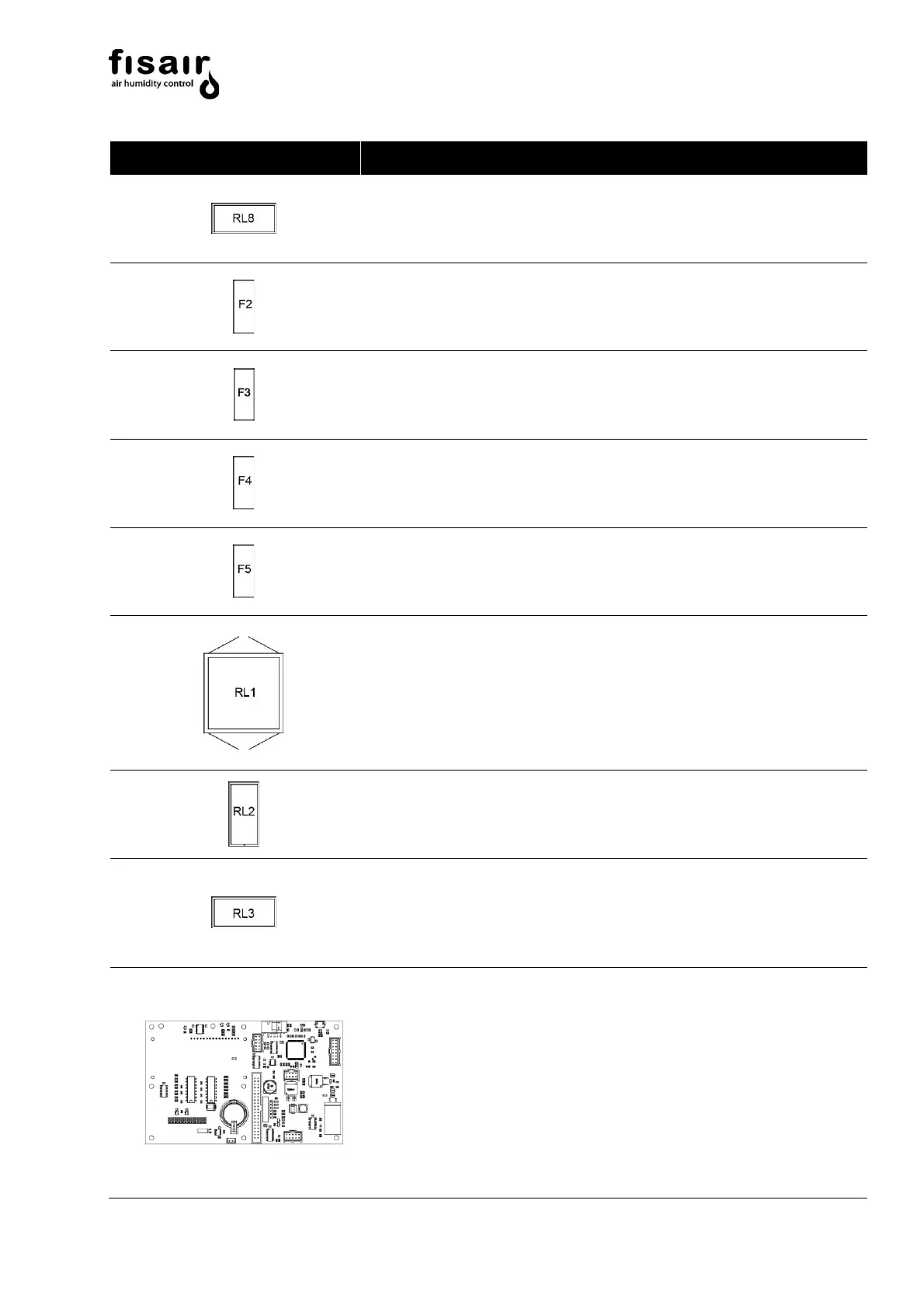

LED / Key / Component
Ref.
Description, Function and Article Code
21
RL8 relay for motor-valve drain/emptying Code Art:
64130018
23
Fuse F2 for auxiliary power protection
Art. Cod.: 64600012
24
Fuse F3 to protect the water supply solenoid valve
Art. Cod.: 64600012
25
Fuse F4 for drain/emptying motor valve protection
Art. Cod.: 64600012
26
Fuse F5 for UV lamp protection
Art. Cod.: 64600013
27
Relay RL1 for water recirculation pump
Art. Cod.: 64130019
28
Relay RL2 for UV lamp
Art. Cod.: 64130018
29
Relay RL3 for water supply solenoid valve
Art. Cod.: 64130018
30
Central processing card SEF-025.1
Art. Cod.: 52300010
