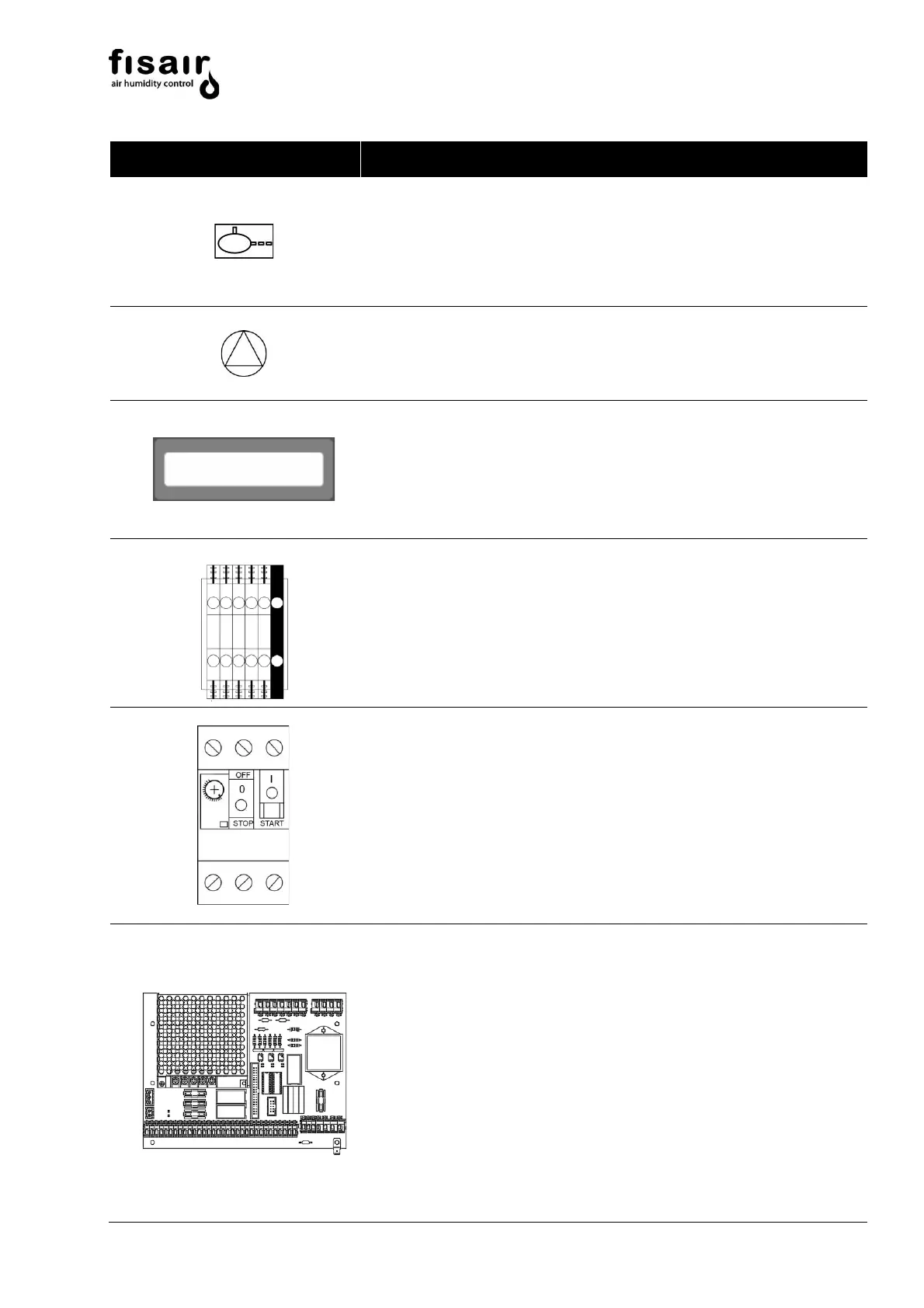

LED / Key/ Component
Ref.
Description, Function and Article Code
15
Float switch status LED:
 Yellow. Indicates level below minimum
 Green. Indicates operating level
 Red. Indicates maximum water level
 Flashing red: Indicates fault
16
Water pump status LED:
 Green. Water pump running
 Red. Malfunction
17
Display screen
18
Power terminals (X1)
19
Magneto-thermal circuit breaker (U1 in electrical
diagram) to protect water pump
Art. Cod.: 64350005 (55 W single-phase pump)
Art. Cod.: 64350002 (60 W 3-phase pump)
Art. Cod.: 64350010 (90 W single-phase pump)
Art. Cod.: 64350004 (125 W 3-phase pump)
Art. Cod.: 64350005 (240W 3-phase pump)
Art. Cod.: 64350020 (370W single-phase pump)
20
Electronic power card SEF-028.1
Art. Cod.: 523000013
