Panda xControl
Seite/Page 154 - Kaptitel/Chapter 11: Panda xControl 10.6.16
as the control of the output voltage and the generator speed.
The xControl GC-S is suitable for both, 12 V and 24 V starter battery systems. The connected consumers are
provided with the supply voltage through the switching outputs.
The current measurement is single-phase and can be done directly by an external current sensor. An additional
three-phase measuring module is necessary for three-phase generators.
11.0.3 xControl - CB-G
(Connection Box - Generator)

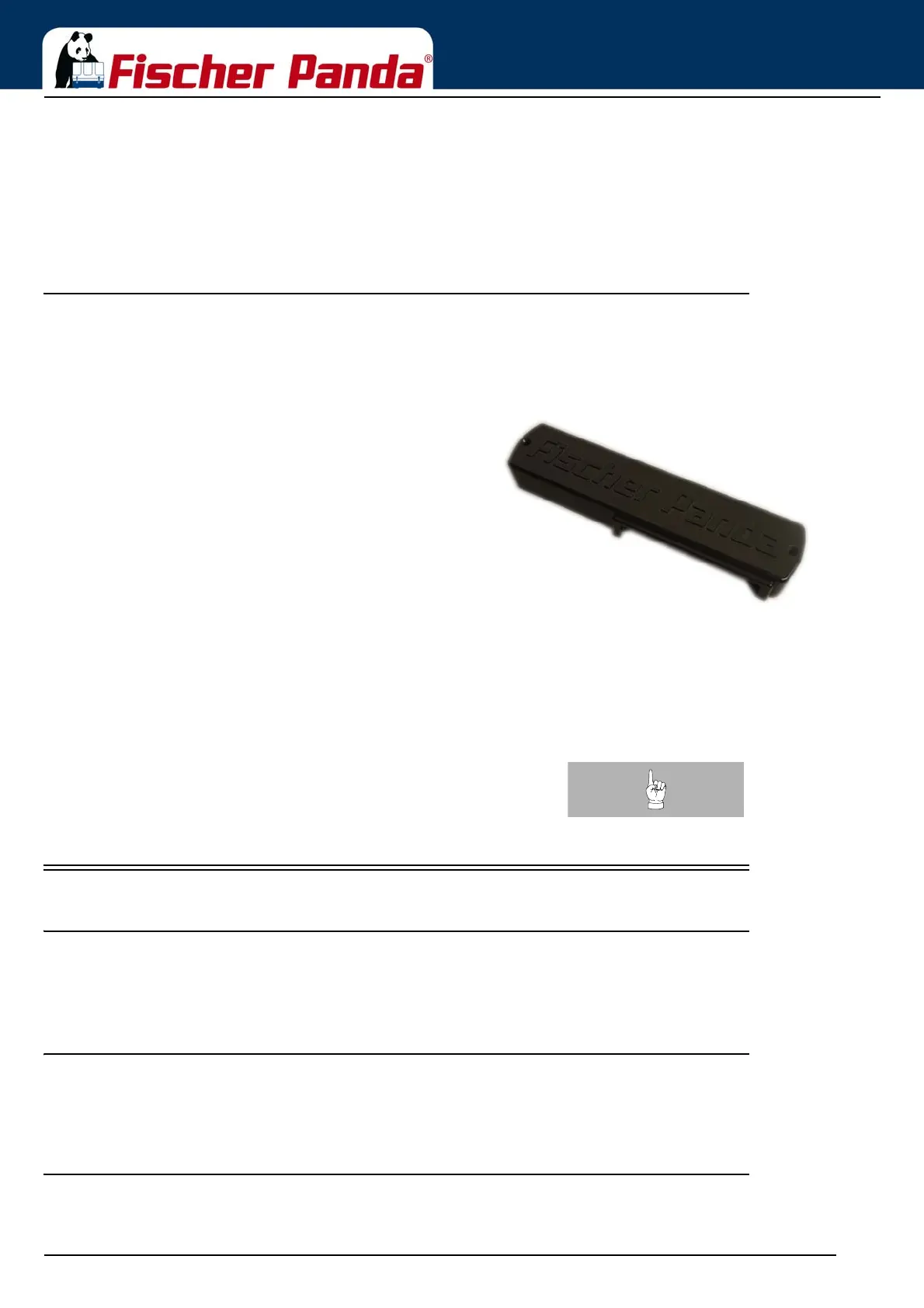

Fig. 11.0.3-1: Connection Box - GeneratorThe xControl CB-G is normaly mounted outside at the
generator capsule.
The xControl CB-G is the external interface of the generator equipped with a xControl System.
The panel and the fuel pump are connected at this interface. It is optionally possible to connect emergency stop,
auto start, load contactor and boost.
Note:Only a electrical trained person should do any work at
xControl CB-G.
Installation
11.0.4 Installation of the Electronic Control Unit (ECU) xControl - GC-S
The ECU xControl - GC-S is pre-installed. The ECU can easily be replaced. All connectors are mechanical coded
and not interchangeable.
11.0.5 Installation of the Connection Box xControl - CB-G
The connection Box is pre-installed. For the connection of the external units, see the installation guide and wiring
diagram of your generator.
11.0.6 Installation of the xControl - CP-G
The xContol - CP-G is a CAN Bus module. All Fischer Panda Can Bus modules has two RJ45 sockets. One is to
connect the module to the CAN Bus. In the second another Modul can be plugged in to continue the CAN Bus. The
