The Panda Generator
Seite/Page 38 - Kaptitel/Chapter 4: The Panda Generator 10.6.16
4.2.3 Front View

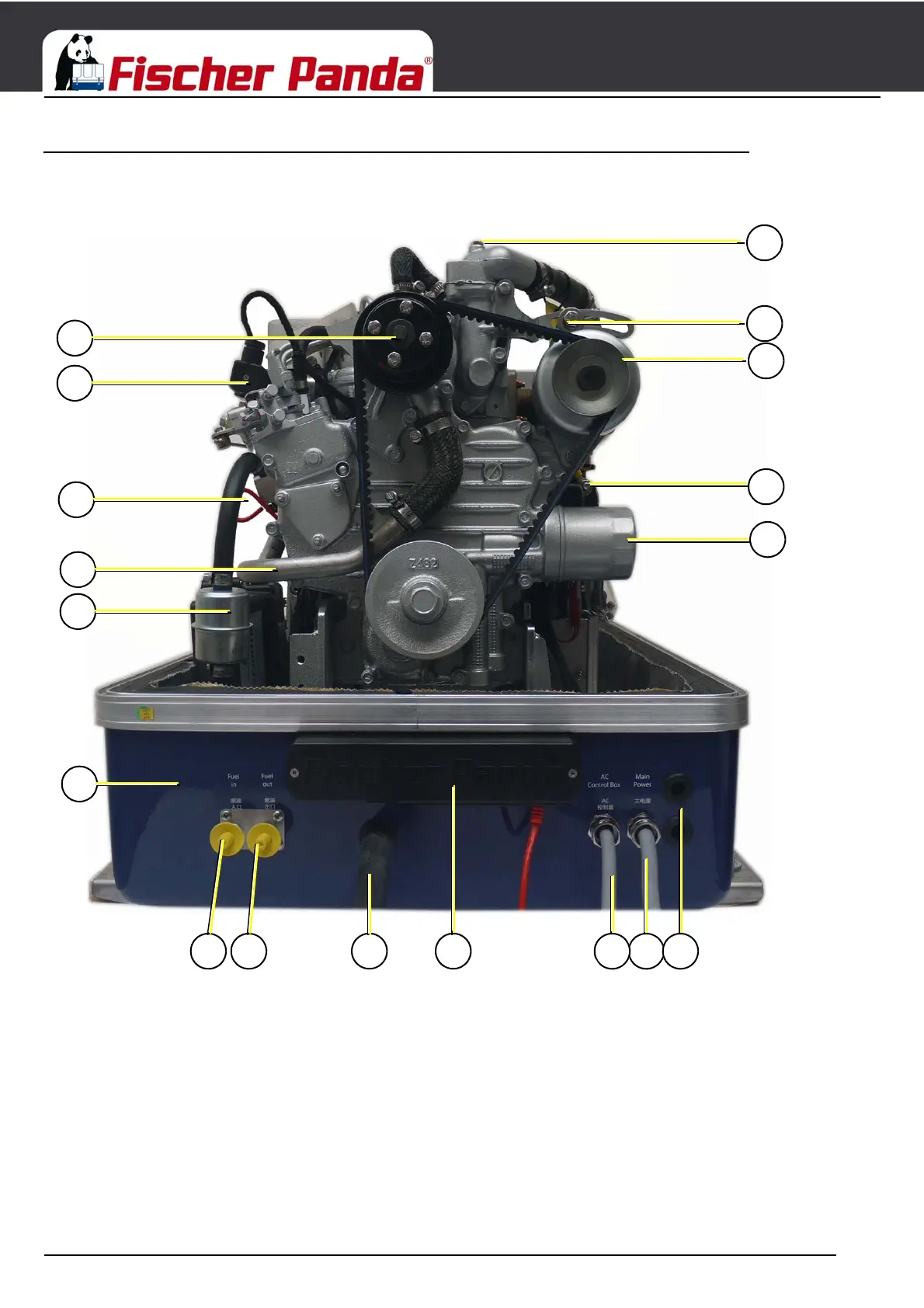

Fig. 4.2.3-1: Front view
16
15
14
12 1307 08 11
01
02
03
04
05
06
17
18
09 10
01. Pulley for internal cooling water pump
02. Fuel solenoid valve
03. Oil dipstick
04. Cooling water intake pipe
05. Fuel filter
06. Sound cover base part
07. Connection fuel in
08. Connection fuel out
09. Oil drain hose
10. xControl connection panel
11. Cable AC-Control box
12. Cable Load
13. Passage for starter battery minus (-) and plus (+)
14. Oil filter
15. V-belt for DC-alternator nnd internal cooling water pump
16. DC-alternator
17. Clamp device for DC-alternator
18. Ventilation screw thermostat housing
