Fischer Panda 10000x - Set up the Operation Mode for the Opt. DC-Power (DP) Output of the CP-G; Set up the Follow-Up Time for the Opt. DP Output of the CP-G; Switch the Outputs of the CP-G

Panda xControl
Seite/Page 176 - Kaptitel/Chapter 11: Panda xControl 10.6.16

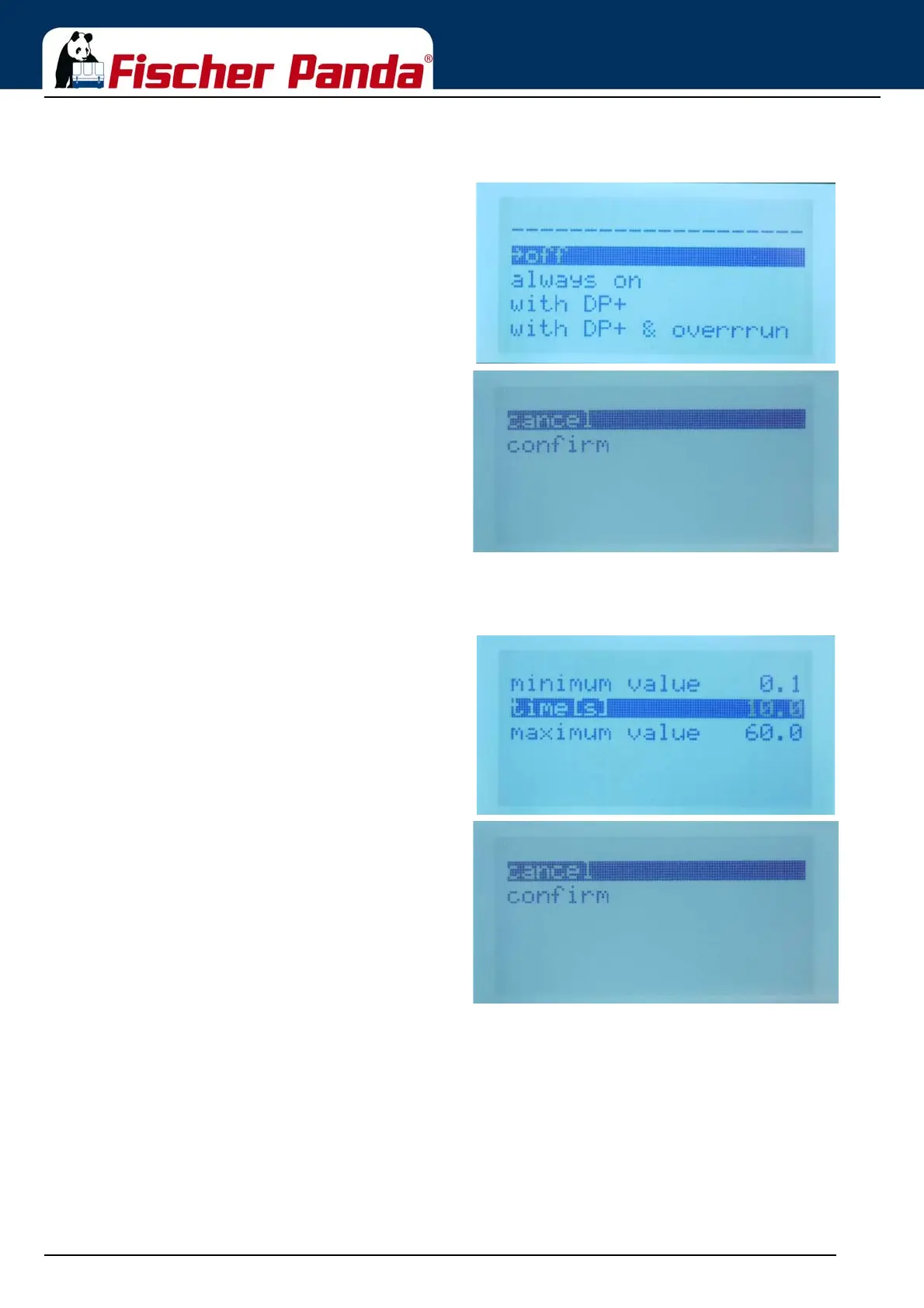

11.1.8.3 Set up the operation mode for the opt. DC-Power (DP) output of the CP-G
Fig. 11.1.8.3-1: Submenu „operation model“
11.1.8.4 Set up the follow-up time for the opt. DP output of the CP-G
Fig. 11.1.8.4-1: Submenu „follow-up time“Increase /decrease with the „Step-up“/“Step-down“ buttons
the value and confirm with the „Start/Stop - Enter“ button.
Choose cancel or confirm with the „Step-up“/“Step-down“
buttons and confirm with the „Start/Stop - Enter“ button.
11.1.8.5 Switch the outputs of the CP-G
Scroll with the „Step-up“/“Step-down“ buttons to the menu point „switch outputs“ and confirm with the „Start/Stop -
Enter“ button. You enter the menu point switch outputs.
