5.9.3.3 Installation on the vehicle wall
Please note:
• Minimum distance to vehicle wall: 100 mm.
• Min. distance to gas exhaust (heat and dirt source): 500 mm.
• The max. permissible vehicle length or width must not be exceeded.
• During operation, the exhaust flow must be uninhibited for at least 3 meters.

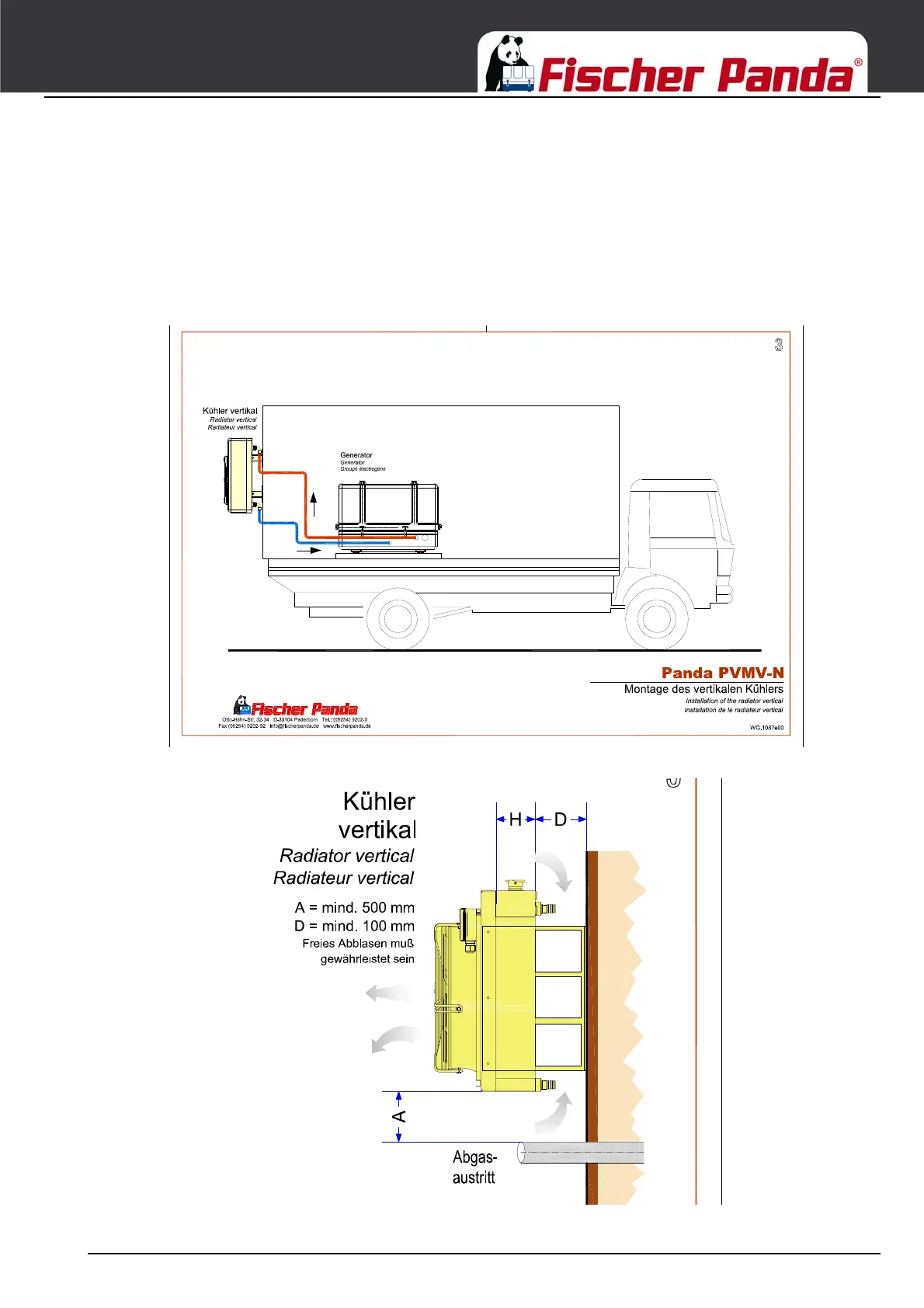

Fig. 5.9.3.3-1: Schematic: radiator, vehicle wall installation
Fig. 5.9.3.3-2: Schematic: radiator, vehicle wall installation
