Installation Instructions
Seite/Page 70 - Kaptitel/Chapter 5: Installation Instructions 10.6.16
5.12 Exhaust installation
5.12.1 Exhaust connection for roof outlet

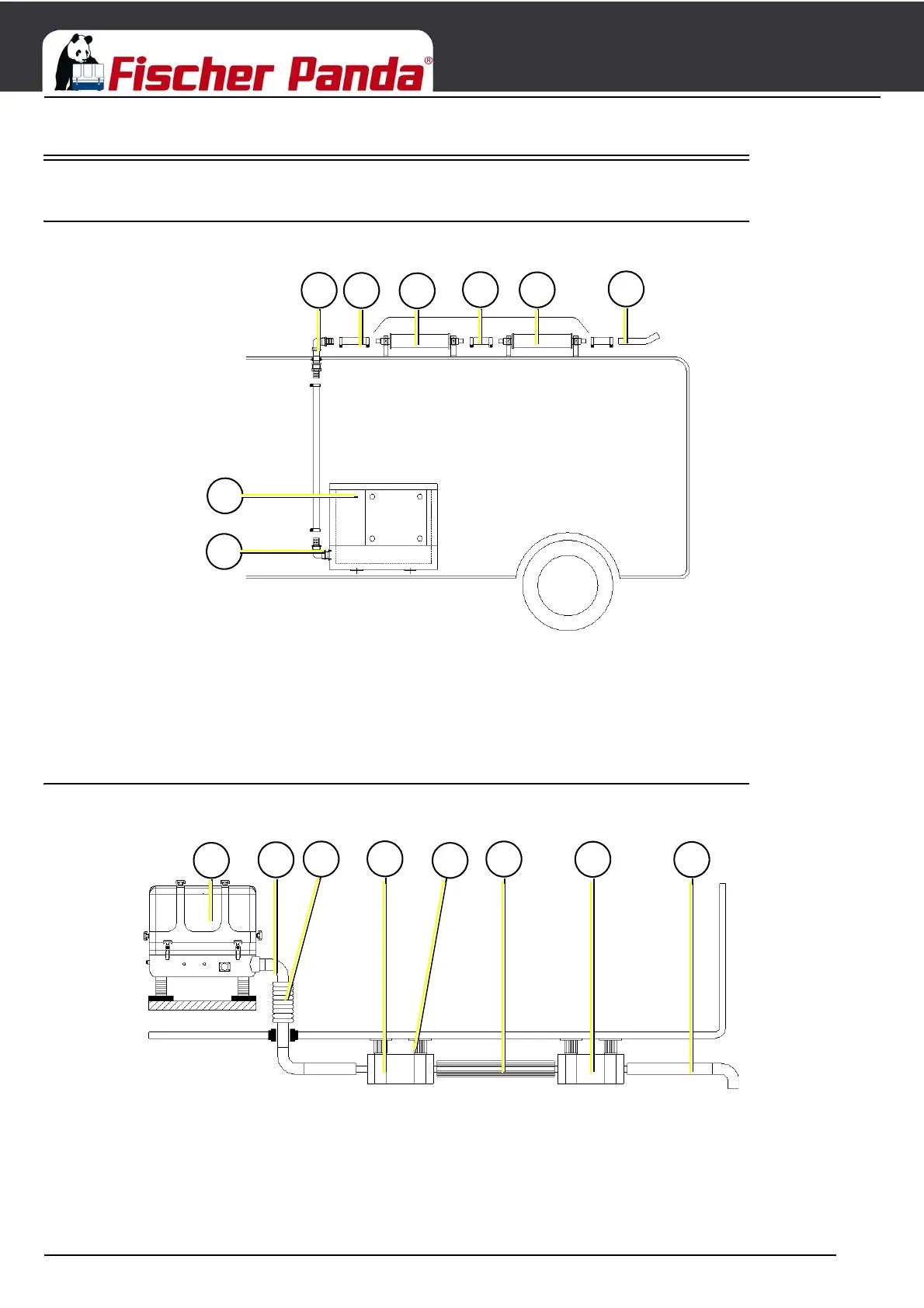

Fig. 5.12.1-1: Exhaust installation - scheme
5.12.2 Exhaust connection for mounting below the vehicle
Fig. 5.12.2-1: Exhaust installation - scheme
3
2
1
4
5
6
7
8
1. Exhaust outlet
2. Generator
3. Roof through fitting
4. Vibration damper (option)
5. External pre-silencer (option)
6. Exhaust pipe
7. External series silencer (option)
8. End pipe
1
2
3
4
5
6
7
8
1. Generator
2. Exhaust outlet
3. Compensator (option)
4. External pre-silencer (option)
5. Vibration damper
6. Exhaust pipe
7. External series silencer (option)
8. End pipe
