MOUNTING THE SPREADER
SWING AWAY
®
SPREADER
NOTE: The spreader shall be installed according
to instructions supplied. Your local outlet is
trained to provide this service and service your
spreader with factory original parts.
CAUTION
During removal or mounting, securely grip
spreader to avoid dropping.

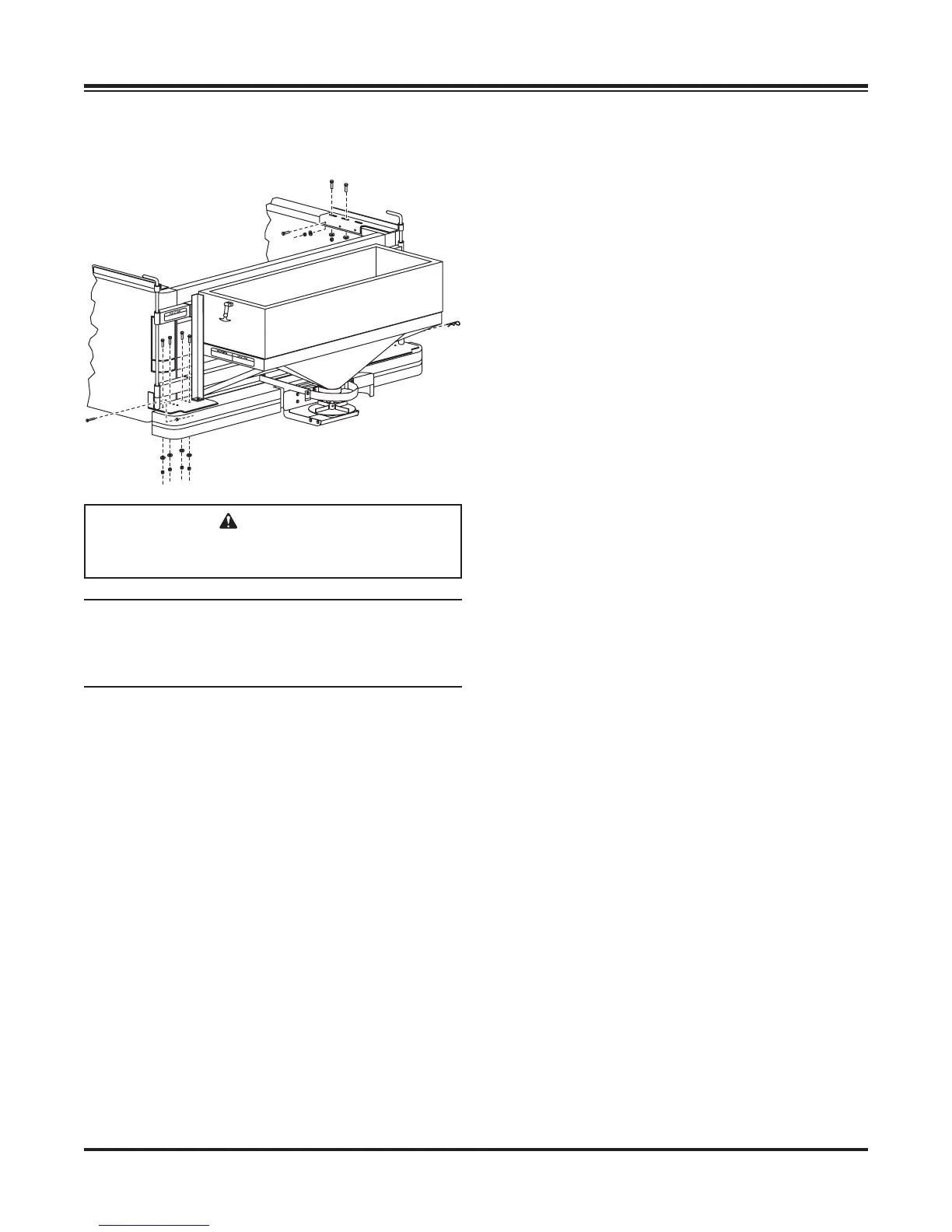

1. Fasten the left and right top brackets along
with any shims to the truck bed rail with two
1/2" cap screws, two 1/2" at washers and two
1/2" locknuts per bracket. Install the two 5/16" cap
screws and locknuts to the side of the top
brackets.
2. Place the left and right base plates on the bumper
of the truck and line up with the holes in the
bumper.
3. Attach the base plates to the bumper using three
3/8" cap screws, three 3/8" plain washers, any
shims and three 3/8" locknuts per side.
4. Place the spreader on the base plates and insert
the hinge pins. Secure the hinge side by installing
one 1/4" cap screw and 1/4" locknut through the
hole in the base plate boss and hinge pin.
5. Install hitch pin clip through the base plate boss
and the removable hinge pin.
6. Plug the spreader harness into the vehicle
harness.
7. Plug the center high mounted stoplight (CHMSL)
cord into the vehicle stoplight harness.
