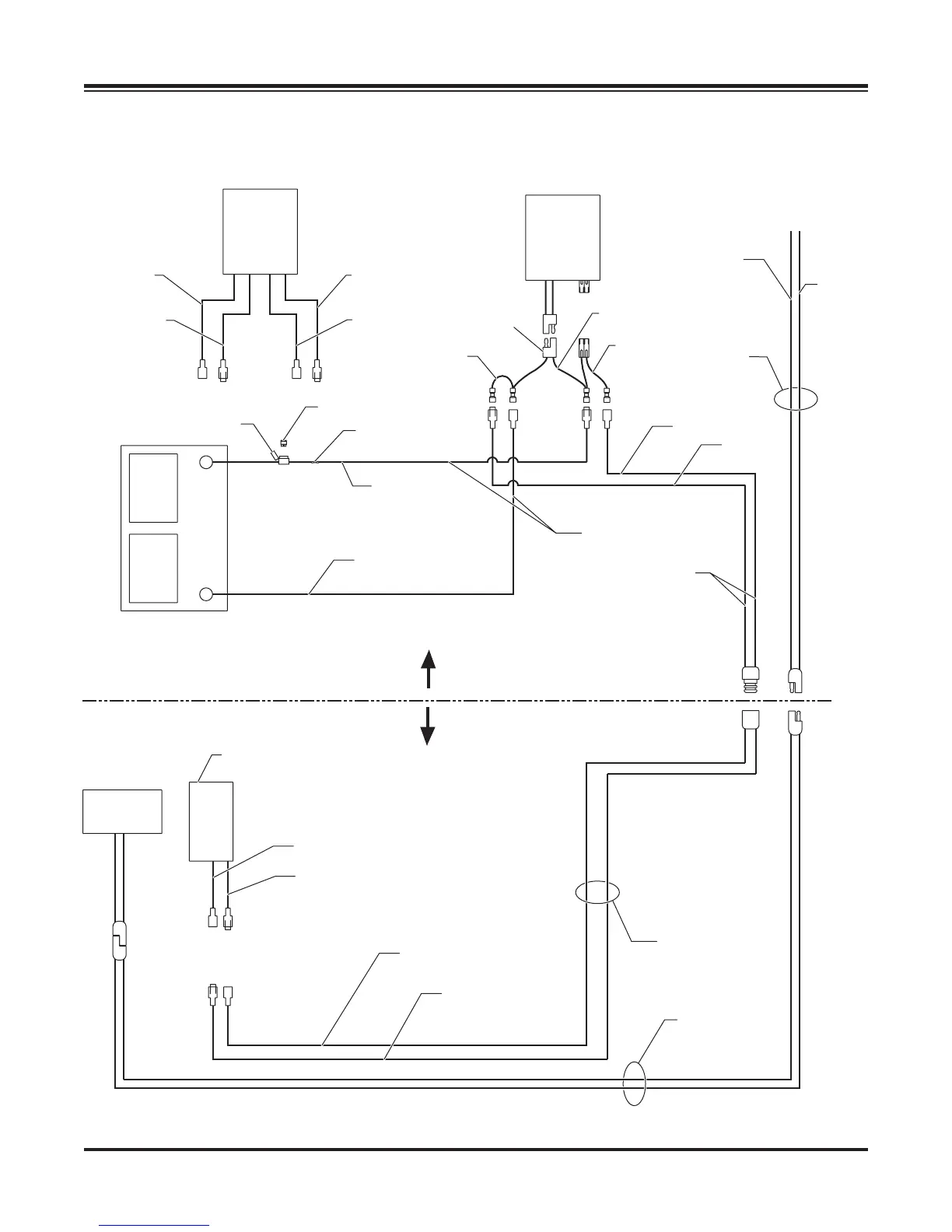

Fisher 1000 - 2-PIN HARNESS WIRING DIAGRAM

Lit. No. 94430/94431, Rev. 07 24 January 15, 2014
Vehicle Wiring Harness
Spreader Wiring Harness
CHMSL
White
Vehicle
Harness
White
Black
Orange
Black
Black
White
Black
Battery
Motor
+
_
Battery
Harness
Spreader
Harness
Fuse
Fuse holder
Butt
Connector
Red
Power Lead
Black
To
CHMSL
Vehicle
Stoplight
Harness
CHMSL
Extension
Cord
Speed
Control
White
Black
Red
Black
Speed
Control
Black
Red
White
Old Style
(no adapter required)
New Style
(adapter required)
12V DC (0.4kW motor)
Adapter
2‑PIN HARNESS WIRING DIAGRAM – LOW‑PROFILE SPREADERS
