Fisher 1000 - 4-PIN HARNESS WIRING DIAGRAM

Lit. No. 94430/94431, Rev. 07 23 January 15, 2014

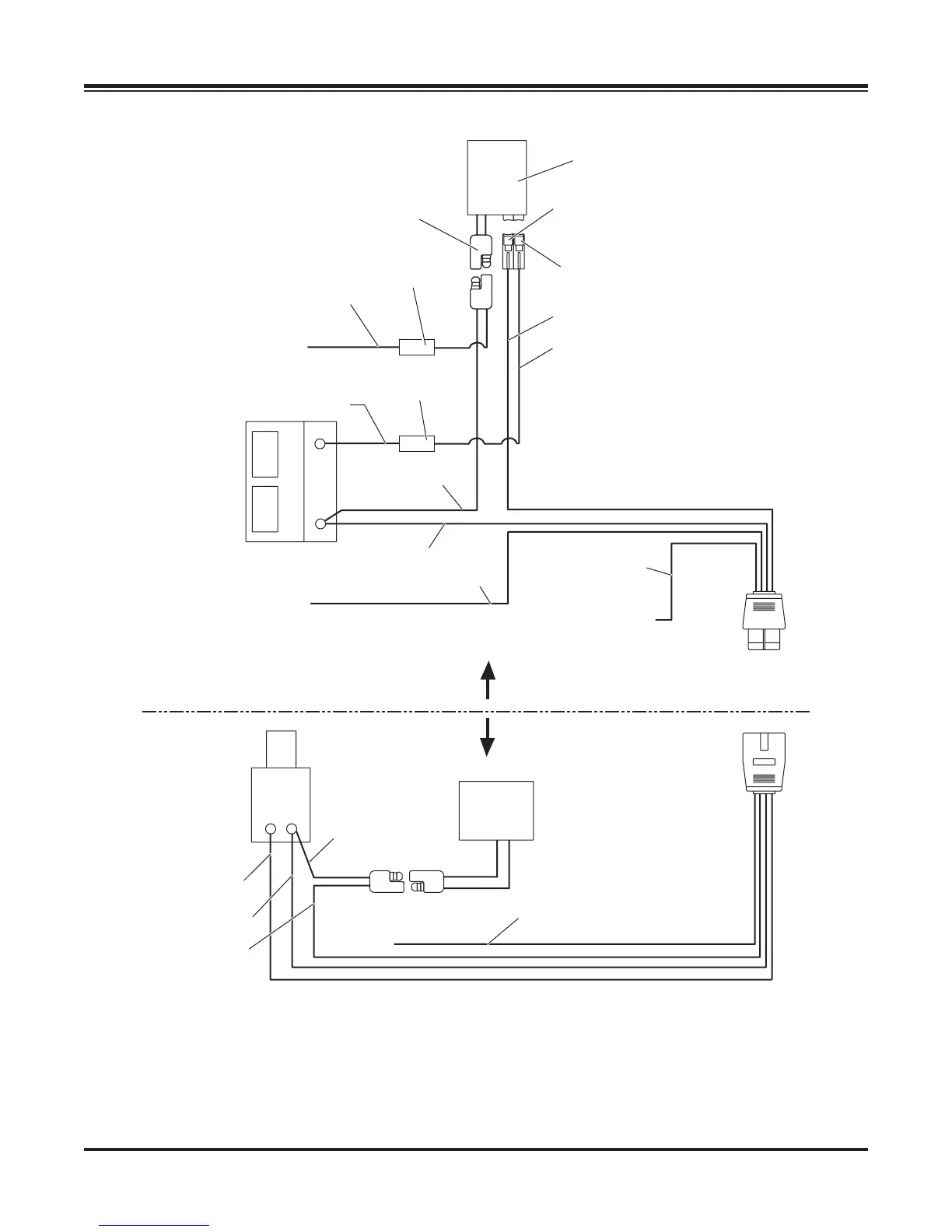

4‑PIN HARNESS WIRING DIAGRAM – LOW‑PROFILE SPREADERS
Cab Control
White Connector
Red Connector
8 ga Red
8 ga Red
Two-Way Molded
Connector
6 Amp Fuse
14 ga Red
To vehicle ignition
(accessory wire or
fuse box)
10 ga Red
30 Amp Fuse
14 ga Black
8 ga Black
14 ga Orange
To vehicle
CHMSL signal
Battery
+
_
Vehicle Wiring Harness
Spreader Wiring Harness
Motor
CHMSL
Assy
14 ga Orange
8 ga Black
14 ga Black
A
B
Accessory Circuit
(12 Amp MAX)
14 ga Yellow
8 ga Red
14 ga Yellow
Accessory Circuit
Motor Specification: 12 Volt DC, .56 kW
