Spreader Wiring Harness
Vehicle Wiring Harness

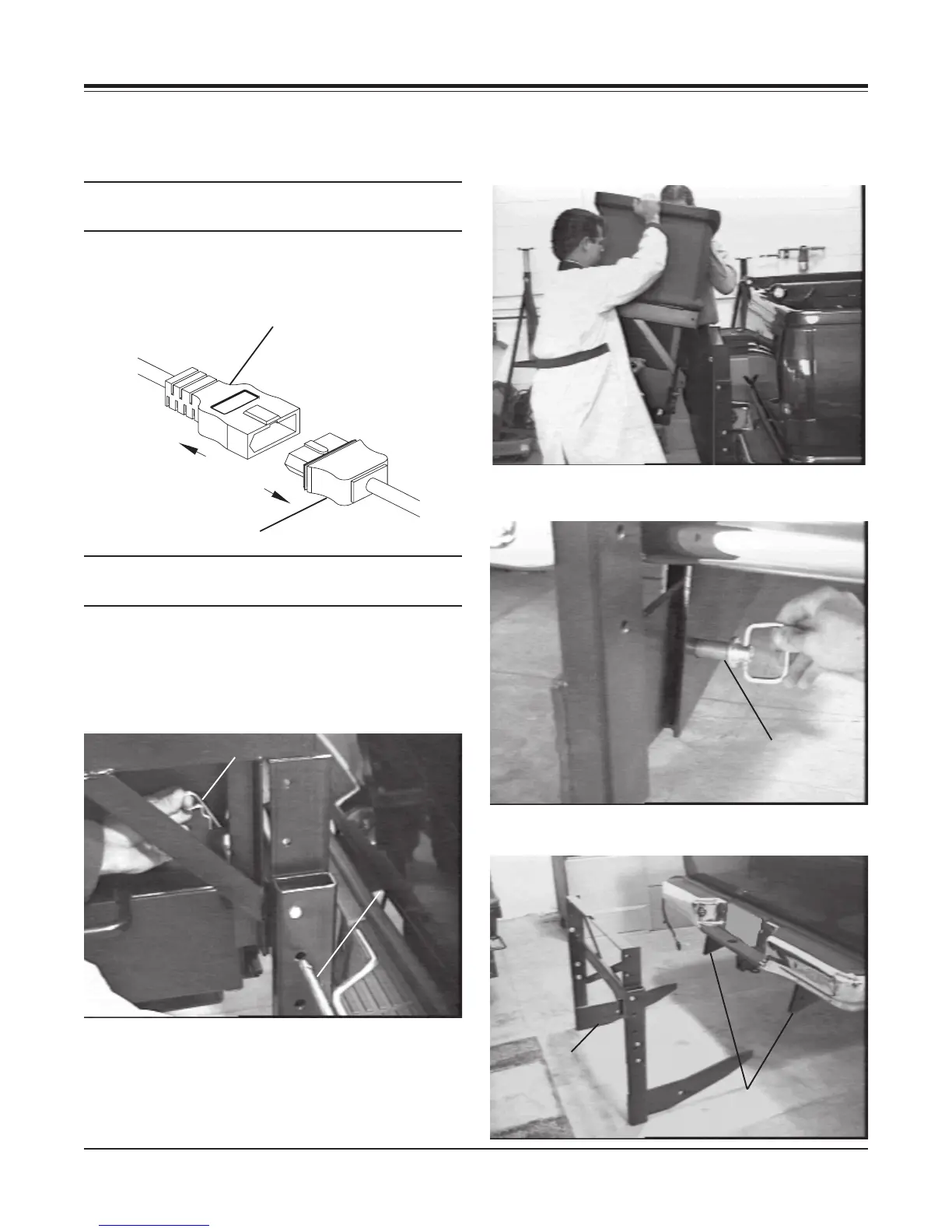

REMOVING THE SPREADER
Hitch Pin
Secondary
Frame
Subframe
Hairpin Cotter
Pin
Hold-down
Pin
Under-Frame Mount
NOTE: Empty the hopper before removing the
spreader.
1. Disconnect the spreader wiring harness from the
vehicle wiring harness.
NOTE: Grease the electrical connections using
dielectric grease.
2. Install the plug cover over the vehicle harness
plug.
3. Remove the hairpin cotter pins and the hold-down
pins.
4. Using a hoist or two people, tip the hopper assembly
forward and lift it off of the mount assembly.
5. Remove the linchpins and hitch pins retaining the
secondary frame.
6. Remove the secondary frame assembly from the
subframe.
