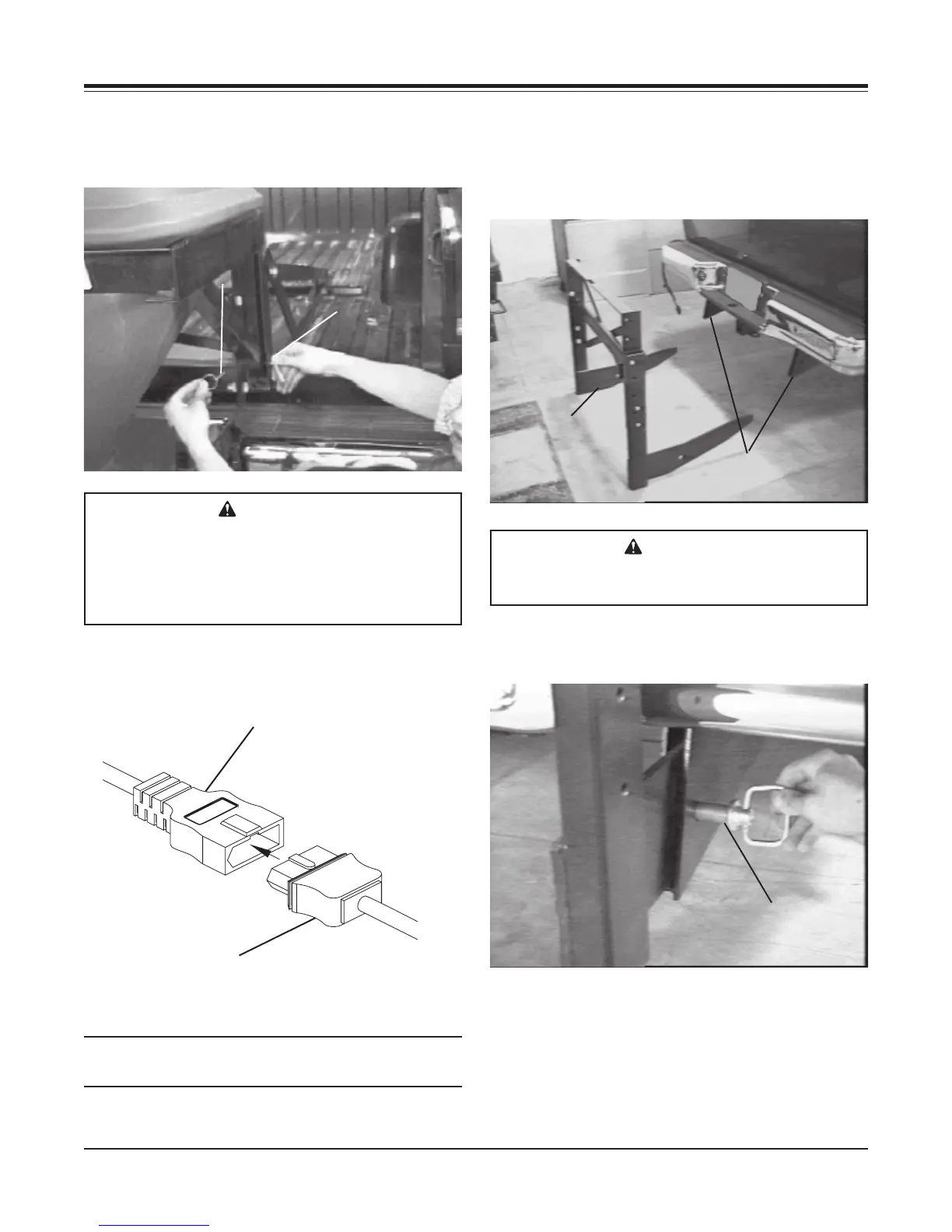

August 10, 2005 6 Lit. No. 13648/9511, Rev. 07
Under-Frame Mount
1. Install the secondary frame into the subframe.
2. Insert the hitch pin on each side, and secure with
linch pins.
MOUNTING THE SPREADER
Hitch Pin
Secondary
Frame
Subframe
Hairpin Cotter
Pin
Hold-down
Pin
Spreader Wiring Harness
Vehicle Wiring Harness
CAUTION
Visually check Hitch Pin holes before assembly.
Never use a finger to check alignment.
8. Insert hold-down pins and secure with hairpin
cotter pins.
9. Connect the spreader wiring harness to the
vehicle wiring harness.
10. Verify proper stoplight and spreader operation.
NOTE: Grease all electrical connections with
dielectric grease.
CAUTION
Both hold-down pins must be in place and
secured with hairpin cotter pins. The hopper
assembly may become unstable if the pins are
not properly secure while the vehicle is in
motion. Never use a finger to check alignment.
