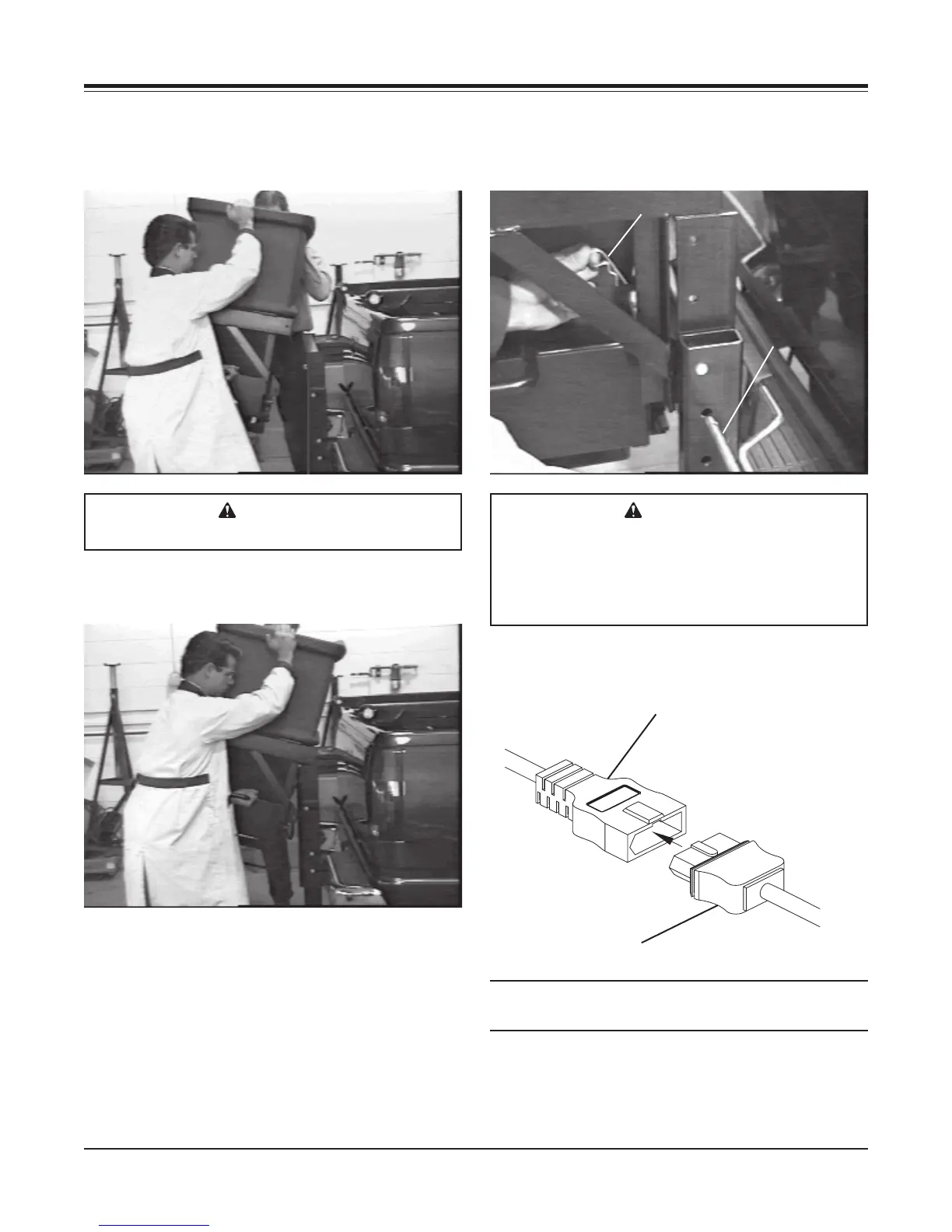

MOUNTING THE SPREADER
Spreader Wiring Harness
Vehicle Wiring Harness
Hairpin Cotter Pin
Hold-down
Pin
CAUTION
Visually align tabs into the secondary frame.
CAUTION
Both hold-down pins must be in place and
secured with hairpin cotter pins. The hopper
assembly may become unstable if the pins are
not properly secure while the vehicle is in
motion. Never use a finger to check alignment.
3. Lift the hopper assembly using a hoist or two
people, and tip slightly forward.
4. Position tabs on the hopper assembly over the top
of the mount assembly, and lower the assembly.
5. Insert pin on each side and secure with hairpin
cotter pin.
6. Connect spreader wiring harness to the vehicle
wiring harness.
NOTE: Grease all electrical connections with
dielectric grease.
7. Verify proper stoplight and spreader operation.
