FlashPoint eVOLV 200 R2 - Understanding the eVOLV200 Components; Flash Heads and Body Identification; Main Unit Controls and Ports; Battery and Mounting Accessories

6

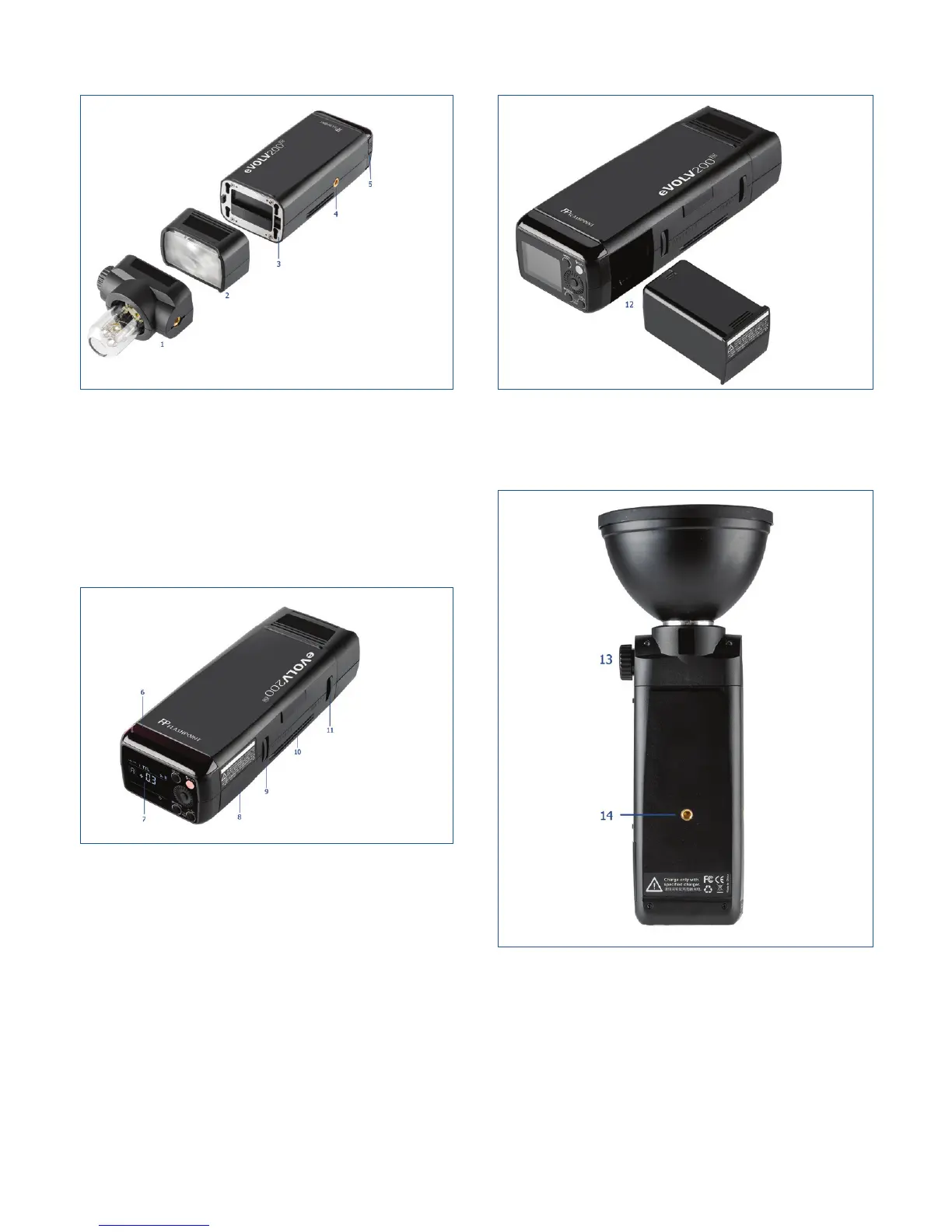

Figure A
1. Barebulb Flash Head
2. Fresnel “Speedlite” Flash Head
3. Head Mounting System
4. Support Mounting Socket (¼”x20 thread)
5. Power Switch
6. R2 Wireless Radio and Optic Light
Sensor
7. LCD Control Panel
8. Battery Compartment
9. Battery Release Button
10. Wireless Control Port/USB Port
and 3.5mm Sync Cord Jack
11. Head Release Button
Figure B
13. Barebulb Head Accessory Lock Knob
14. Mounting Socket (¼”x20 thread)
12. Lithium Battery
Name of Parts
Figure D
Figure C
