4 Installation

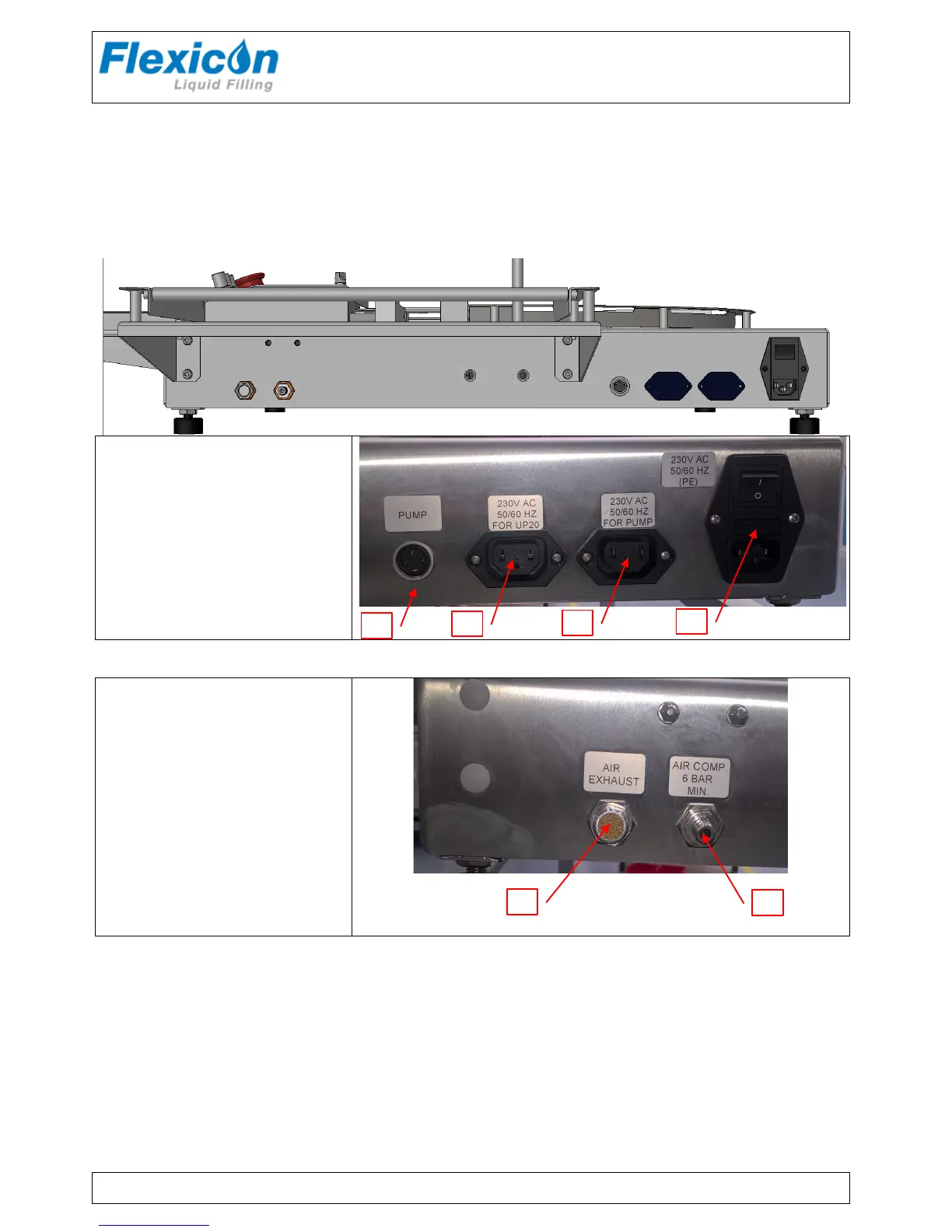

4.1 Connections
FF20 must be placed on a stable and horizontal bedplate.
The mains cable (1) is connected
to a single-phase power supply
with earth.
The filler is connected to (2)
See section 3.5.8
A UP20 can be connected to (3).
Flexnet from the pump is
connected to (4).
Compressed air is connected to
(1) by use of the supplied quick
release clutch.
All exhaust air is collected and
exhausted through the exhaust
filter (2)
4
3
2
1
2
1
