Flexicon FF20 - Mounting of Filling Stand

INSTRUCTION HANDBOOK
FF20
FF20 IH EN 74-215-051 v1.02.doc Version: 1.02 Page 8 of 21

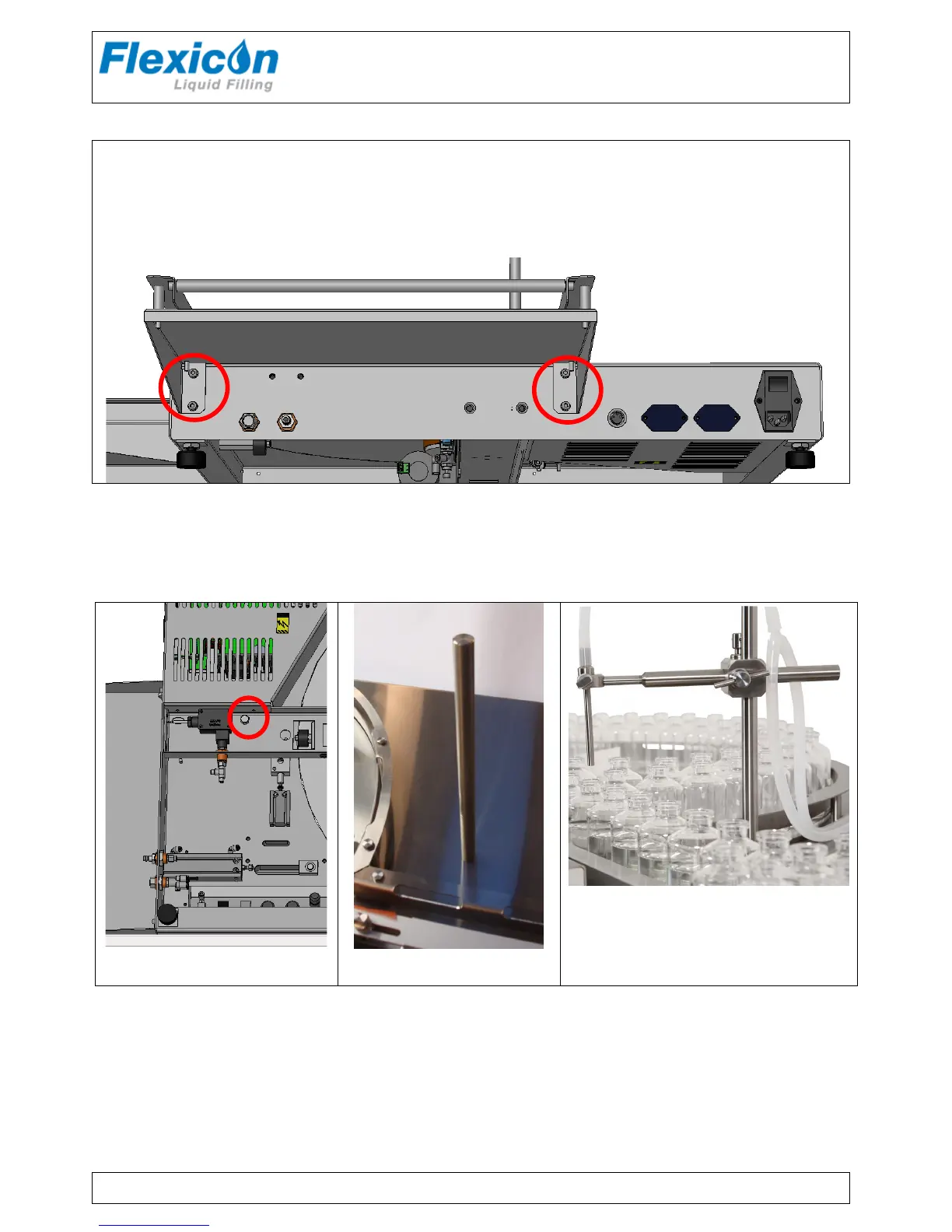

3.3.2.5 Mounting Outlet tray
• Position tray as shown on page 5.
• Mount the screws as shown in the red circles and tighten them loosely.
• Adjust the the tray so it is flush with the top surface of the FF20.
• Tighten the screws.
3.4 Mounting of filling stand
If the filling stand has been removed during shipping it is mounted as shown on the picture.
Fasten the bolt underneath the
base plate.
The filling stand must be
stable and immovable
Mount the nozzle holder on the stand
