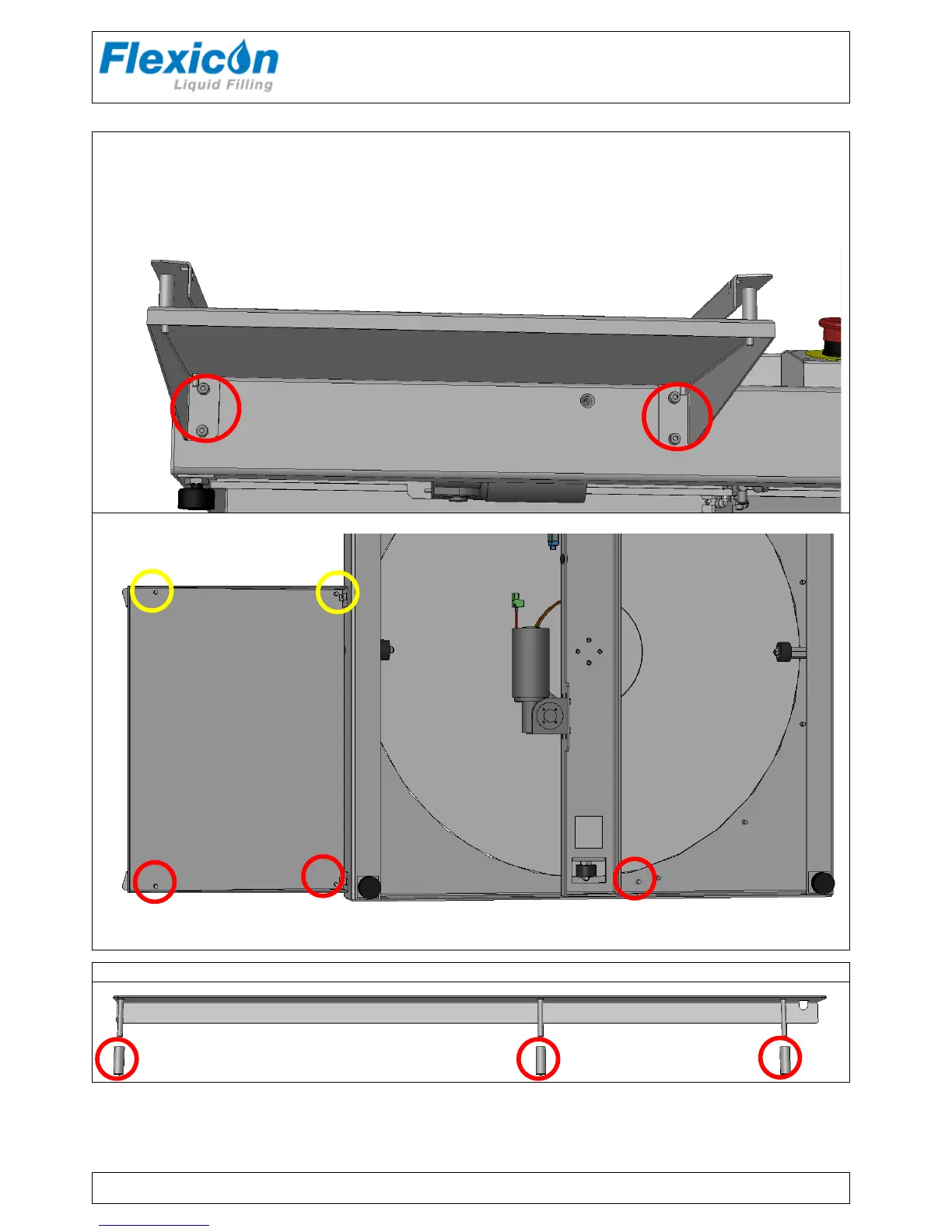

3.3.2.3 Mounting as front infeed tray
• Position tray as shown on page 5.
• Mount the screws as shown in the red circles and tighten them loosely.
• Adjust the the tray so it is flush with the top surface of the FF20.
• Tighten the screws.
3.3.2.4 Mounting the long railing for side infeed.
The FF20 comes with a short railing mounted on the infeed tray- yellow circles.
There are 2 long railings: 1 for side infeed and 1 for front infeed.
Railing for front infeed with spacers
• Position the railing with spacers in the aligning holes – red circles.
• Add nuts and tighten loosely.
• Align the end of the long railing to the circular railing.
• Tighten the nuts.
