FF20 IH EN 74-215-051 v1.02.doc Version: 1.02 Page 5 of 21
3 General information
3.1 Unpacking and inspection
Please check that all ordered items have been received and that no items are damaged during transport.
In case of any defects or omissions, please contact WMF or your supplier immediately.
Note: FF20 is delivered with a communication cable to be used with WM-Flexicon pumps, only.
3.2 Receiving and storing the FF20
Before unpacking or storing of the FF20 it should be checked if the crate is damaged.
In case of long-term storage of the FF20 before installation, the machine must be stored in the crate, and
placed in a dry room. The crate is not water resistant.

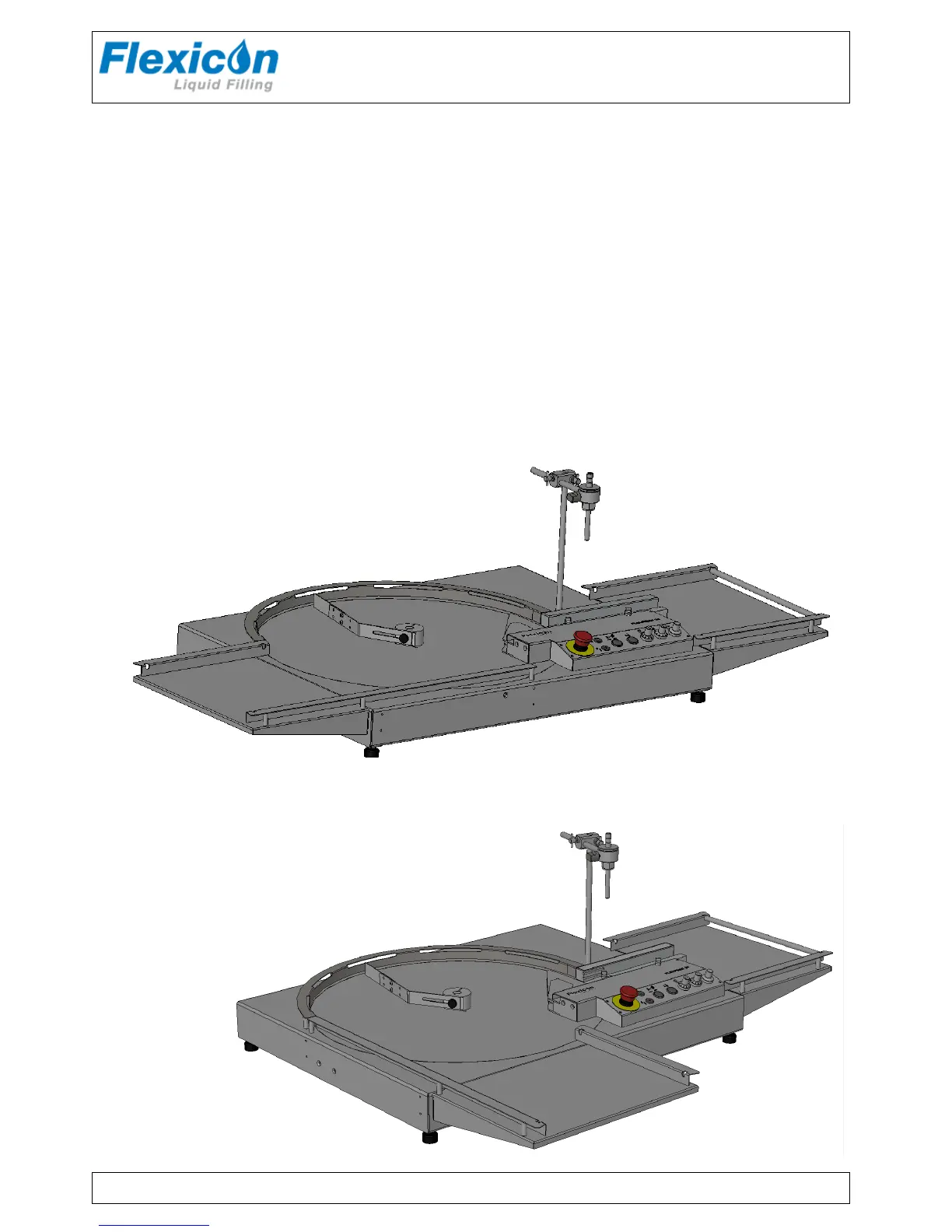

3.3 Mounting of inlet and outlet trays
If the inlet tray or outlet tray have been removed during shipping they must be mounted as shown below.
Use the supplied bolts and fasten them as shown below.
3.3.1 Side infeed
3.3.2 Front infeed
