FF20 IH EN 74-215-051 v1.02.doc Version: 1.02 Page 19 of 21
9 Maintenance & service
9.1 Maintenance

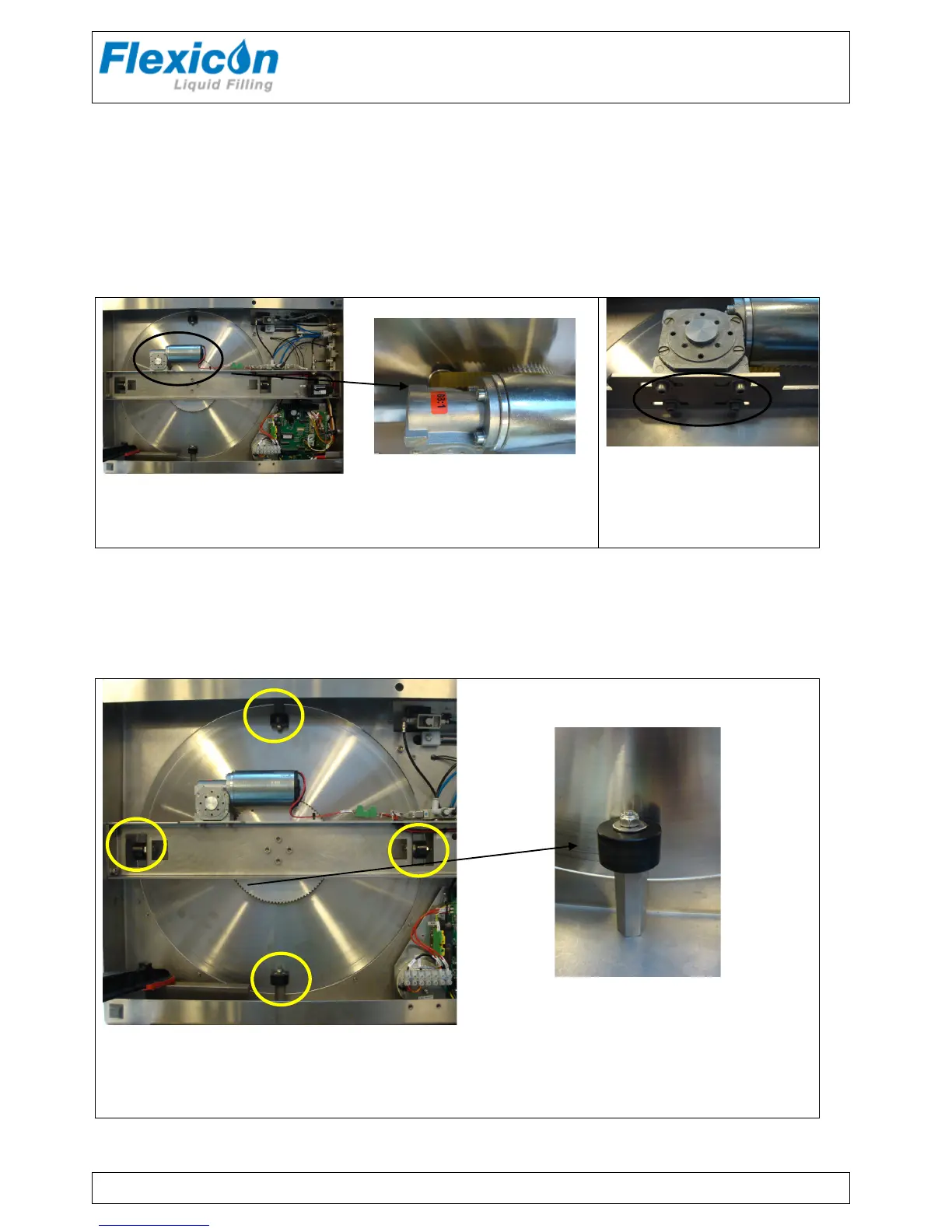

9.1.1 Tension of toothed belt
If the toothed belt is slipping it needs to be tightened.
Turn of power, remove all connections to other equipment and tip
the FF20 to gain access to the toothed belt.
underneath and move the
motor to the left until the belt
*Note - The toothed belt must not be stretched by use of tools while tensioning is being performed.
9.1.2 Alignment of bottle disc (round table)
If the bottle disc has become out of alignment with the inlet tray and the bottle sluice, the bottles will not
glide easily.
The bottle disc can be aligned from underneath the FF20 via the 4 conically shaped plastic rollers.
Turn of power, remove all connections to other equipment and tip the FF20 to gain access to the
plastic rollers.
Loosen the small bolt on the outside of the FF20 and adjust on the hexagon pole inside.
Do not loosen the bolt on top of the roller.
When the bottle disc is aligned all the loosened bolts must be tightened again.
