3.4 Housing Dimensions

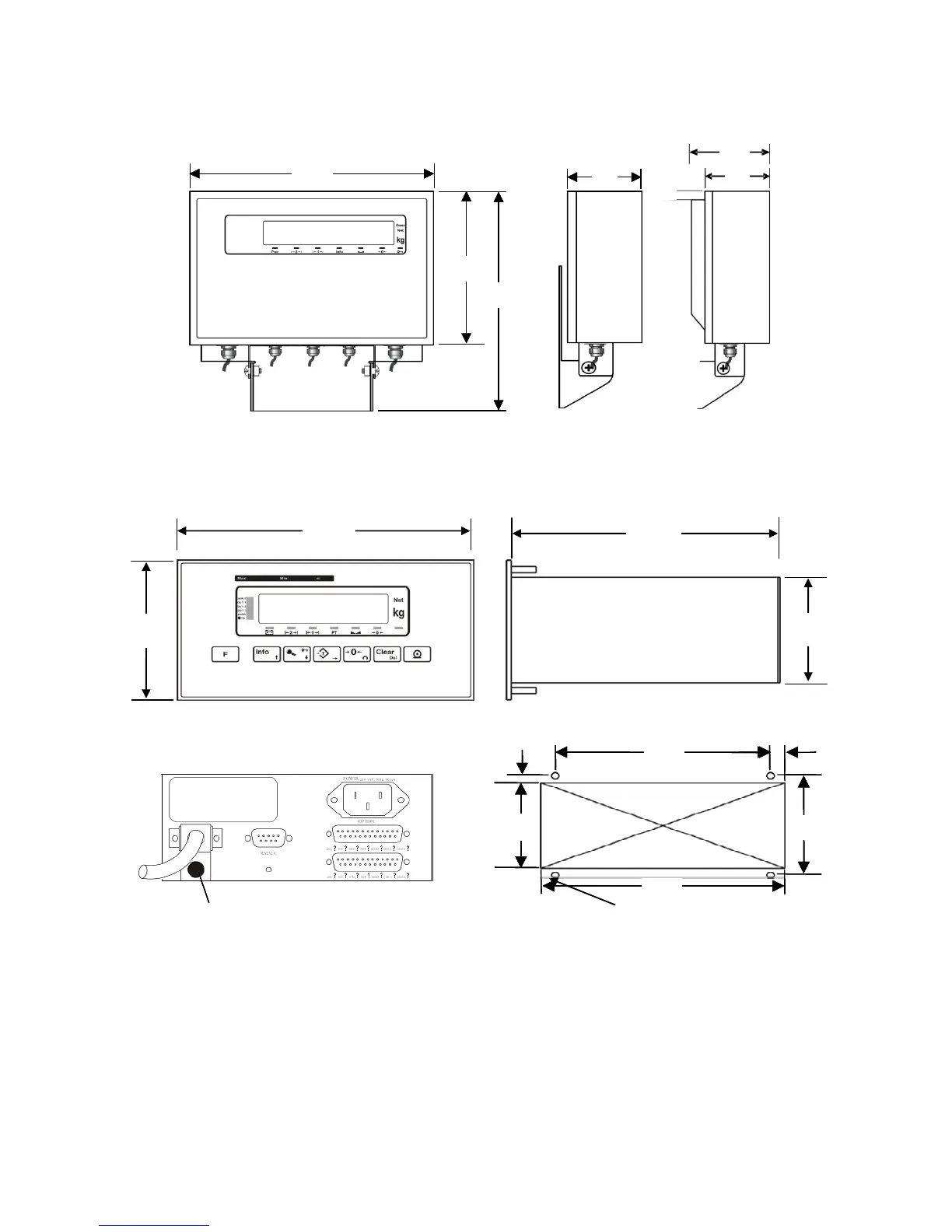

3.4.1 Stainless Steel Housing
70
220
160
230
70
100
15
70
220
160
230
220
160
230
70
100
15
70
100
15
Stainless steel housing front view
Stainless steel housing side view
100 mm deep with big backplane option
3.4.2 Panel Type Housing
Panel type front view
Panel type side view
9
5,5
69
144
80
164
Sticker
9
5,5
69
144
80
164
9
5,5
69
144
80
164
Sticker
Panel type rear view
The hole dimensions for mounting on a panel
175
68
174
90
 5, mounting with 4x M4
