ThermaCAM™ PM575/595 Operator’s Manual
20
The selected item is marked white/dark grey. Pressing the
↵ button normally con-
firms the action (removing the dialog and confirm box) and puts the camera back
in normal mode, i.e. focus/zoom. Pressing the C button removes the confirm box
without any other action.
5.3.4 Result table
When a measurement function is active it is displayed in a result table in the upper
right-hand corner of the screen. The first line contains the selected temperature
unit (see Local adapt…, “Setup menu” on page 35), i.e. degrees Celsius (°C) or
degrees Fahrenheit (°F). The consecutive lines contain one or more measurement
functions, e.g. Sp1, Amin, Amax, Aavg, Cur or Iso and the corresponding values. If
the isotherm is activated together with another measurement function, the Iso
value is located under the measurement function, e.g. Spot 1. If Diff temp (see
“Setup menu” on page 35) is activated, the temperature difference between two
defined measurement functions is displayed. If the reference temperature is acti-
vated (Analysis
→Ref temp), it is displayed in the bottom line of the result table.
If one or two functions are selected, each of these functions’
∆-values are dis-
played in the result table. The
∆-value is calculated as the difference between the
function’s temperature and the reference temperature. If three or more functions
are selected, the
∆-value is only calculated for the last chosen, or last adjusted,
measurement function. The reference temperature can be set to either of the dif-
ferent functions that are active by confirming that particular function in the Analy-
sis menu and then confirming Ref temp in the same menu.
Special signs:
---- Undefined temperature
< Temperature below range
> Temperature above range
* Uncalibrated, i.e. the temperature is outside calibrated range

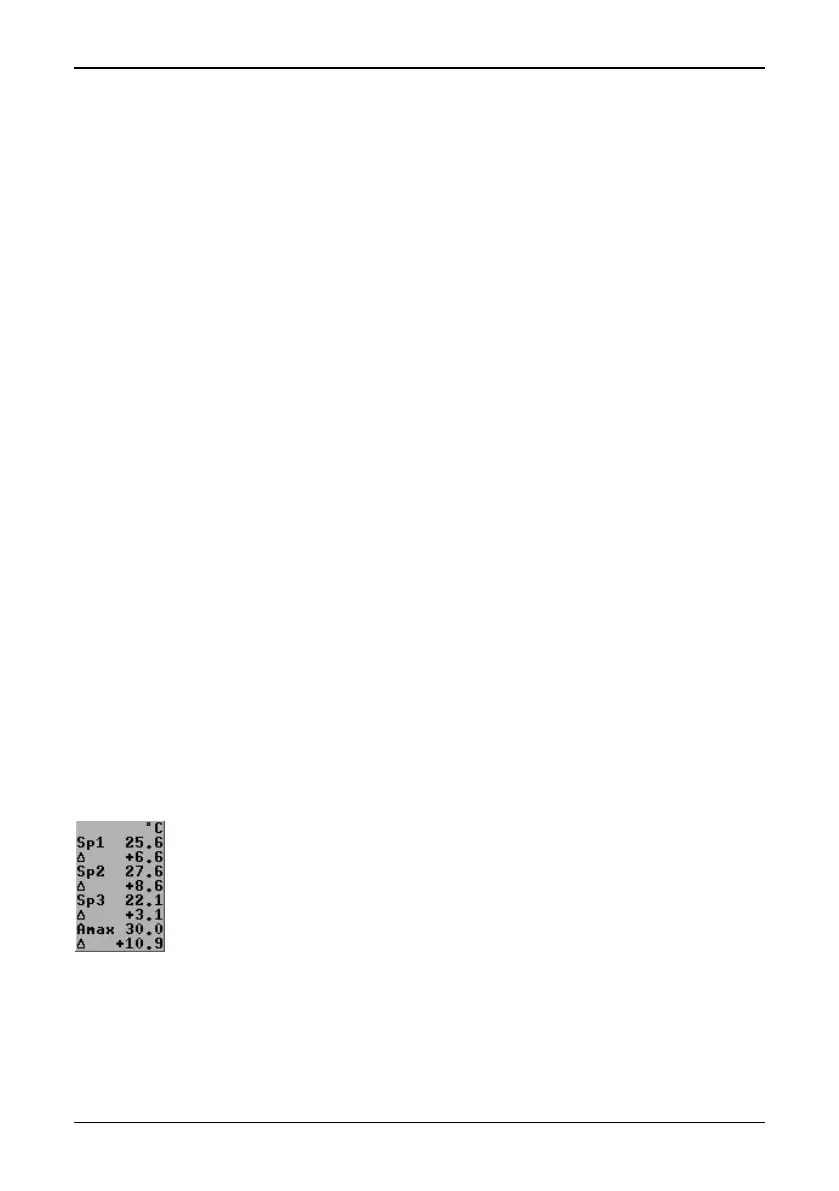

Figure 5.8 Result table – an example.
5.3.5 Data presentation
The data presentation is displayed on the first, second and/or third bottom lines of
the screen. If text comments are attached to an image file, they are displayed
