[7.2 — Input & output connectors]
ThermaCAM™ PM575/595 Operator’s Manual
46
7.2 Input & output connectors

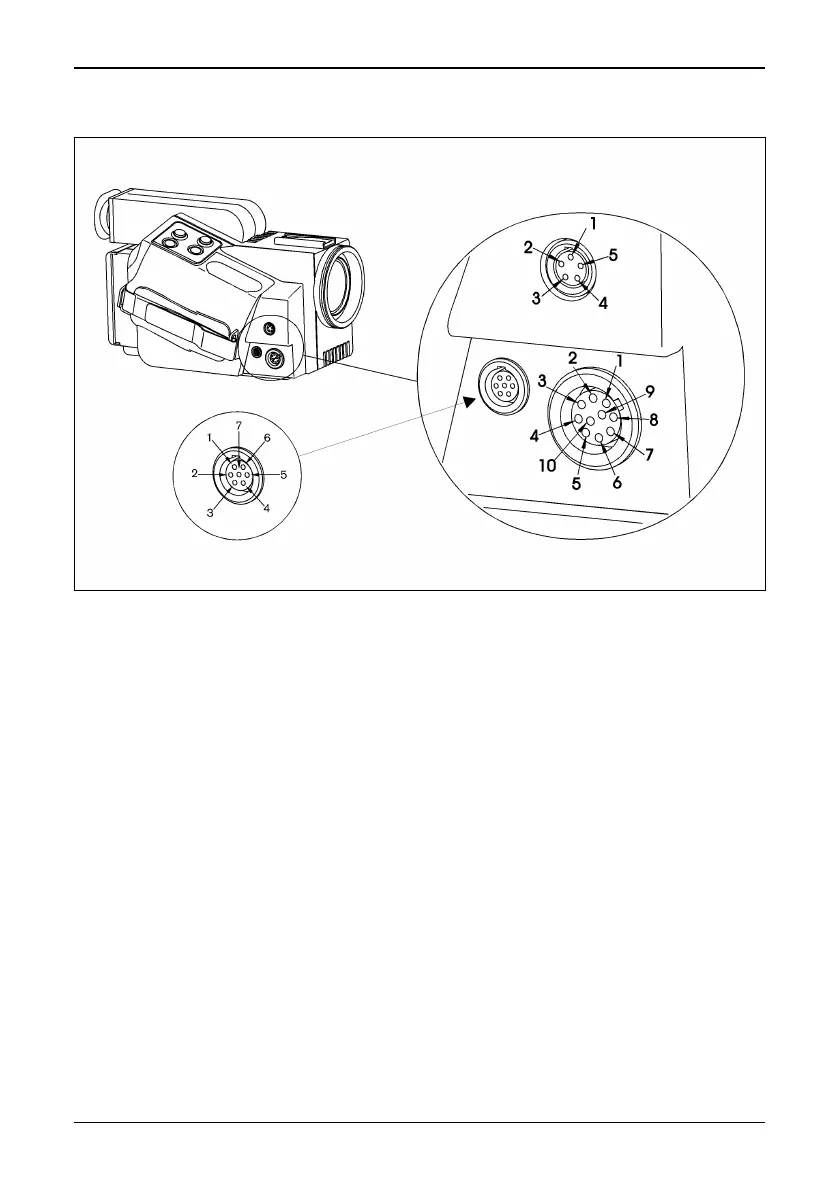

Figure 7.1 Pin configuration.
7.2.1 12 V socket
Pin
[1] RS-232, TxD (output data)
[2] RS-232, RxD (input data)
[3] S-Video Y. (optional 14 bit digital output)
[4] S-Video C. (optional 14 bit digital output)
[5] S-Video ground
[6] Power out 11–16 V
[7] Power in 11–16 V
[8] Ground power
[9] Ground power
[10] Power in 11–16 V
