3.3. Installation
The pedestal base and conduit installation vary according to the charging station configurations.

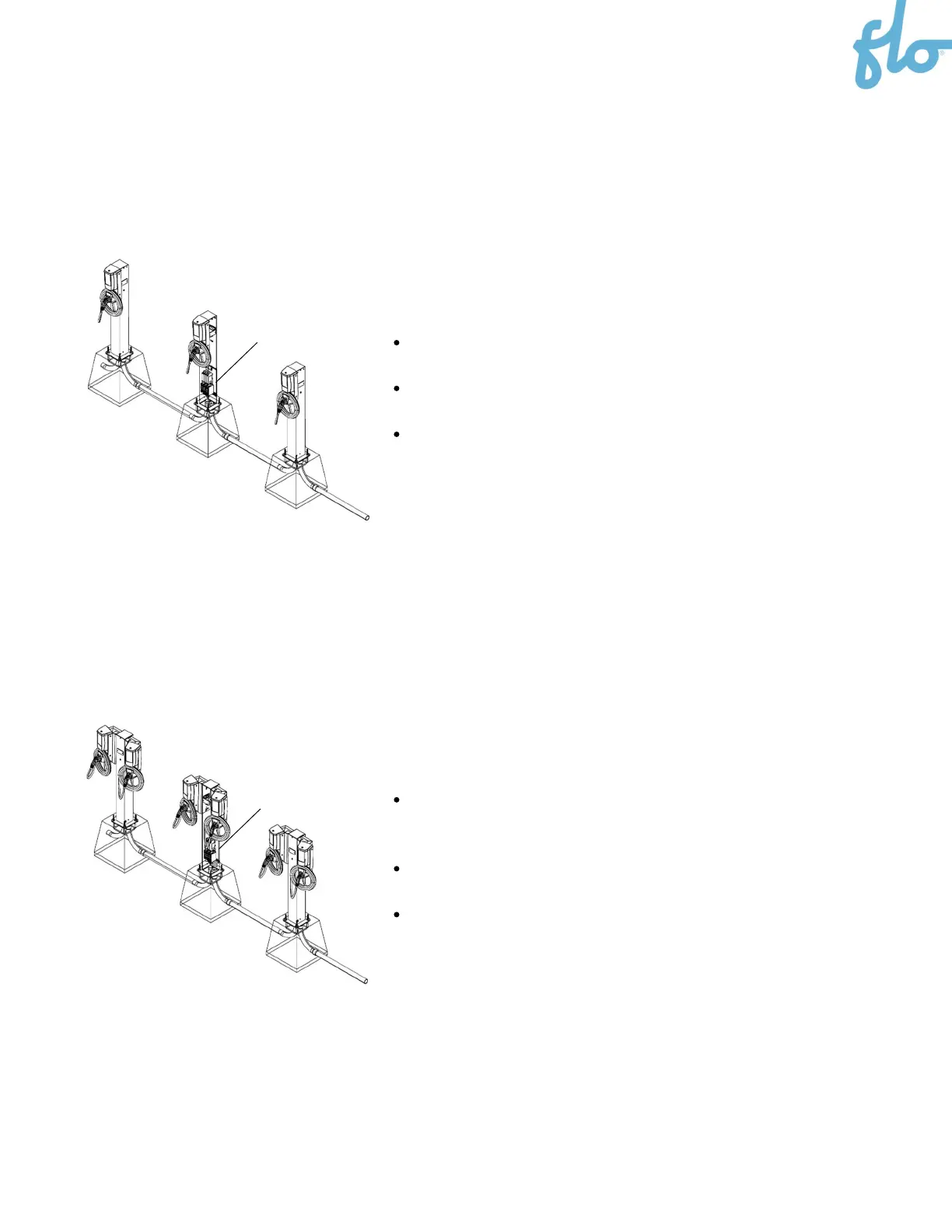

3.3.1. Cascading Single Station Pedestals
Cascading single station pedestals have the following characteristics:
When a single charging station head is mounted on a pedestal,
it should always be facing the parking space it is serving.
When the head is facing the parking space, the pedestal
access door must be at the back of the charging station.
To have the access door on the back side of the charging
station, the conduit configuration must be side-by-side, as
shown.
3.3.2. Cascading Dual Side-by-Side Station Pedestals
Cascading dual side-by-side station pedestals have the following characteristics:
When 2 charging station heads are mounted side by side on a
pedestal, they should always be facing the parking space they
are serving.
When the heads are facing the parking space, the pedestal
access door must be at the back of the charging station.
To have the access door on the back side of the charging
station, the conduit configuration must be side-by-side, as
shown.
Access door side
Access door side
