3.4. Cascading Kit
The cascading kit allows electricians to connect several charging stations to a single circuit from the main
panel. Two versions are available: one without a built-in disconnect device (Pedestals ACPE001040 and
ACPE001060) and one where this device is included (Pedestal ACPE00100). In the latter case, the cascading
kit has 2 separate assemblies, a pre-assembled mounting bracket, and a breaker lock. The breaker lock allows
the breaker to be used as a disconnect device that needs to be locked in the open position while maintenance
is being performed on the EVSE.

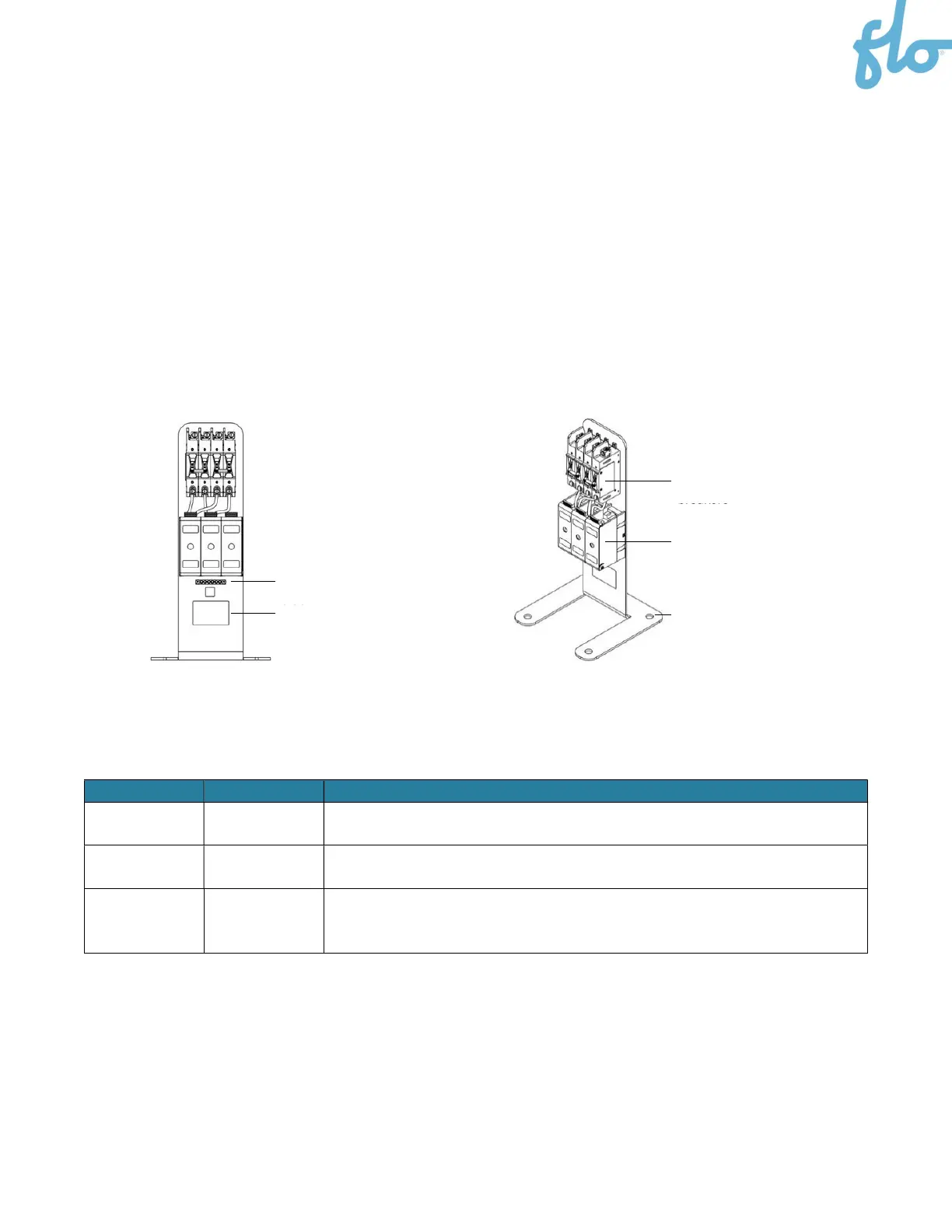

3.4.1. Cascading Kit Mounting Bracket
The cascading kit comes pre-assembled on a mounting bracket.
3.4.1.1. Configurations
The pedestals with cascading functionality are available in three configurations as per the table below:
Pedestal Rating Description
ACPE001040 40 A
One 3-pole terminal block that can accept up to AWG 4/0 90 °C copper or
aluminum conductor and 2x 40 A breakers.
ACPE001060 60 A
One 3-pole terminal block that can accept up to AWG 4/0 90 °C copper or
aluminum conductor and 2x 60 A breakers.
ACPE001100 100 A
One 3-pole terminal block that can accept up to AWG 4/0 90 °C copper or
aluminum conductor and 2x 100 A breakers and a breaker lock
mechanism.
Non-isolated terminal
block
Wiring information
sticker
Mounting
bracket
Dual circuit
breakers
Isolated terminal
block
