6.4. Dual Side-by-Side Charging Station Installation
The section below contains information and instructions on how to complete a dual side-by-side electric
vehicle (EV) charging station installation.
6.4.1. Required Material

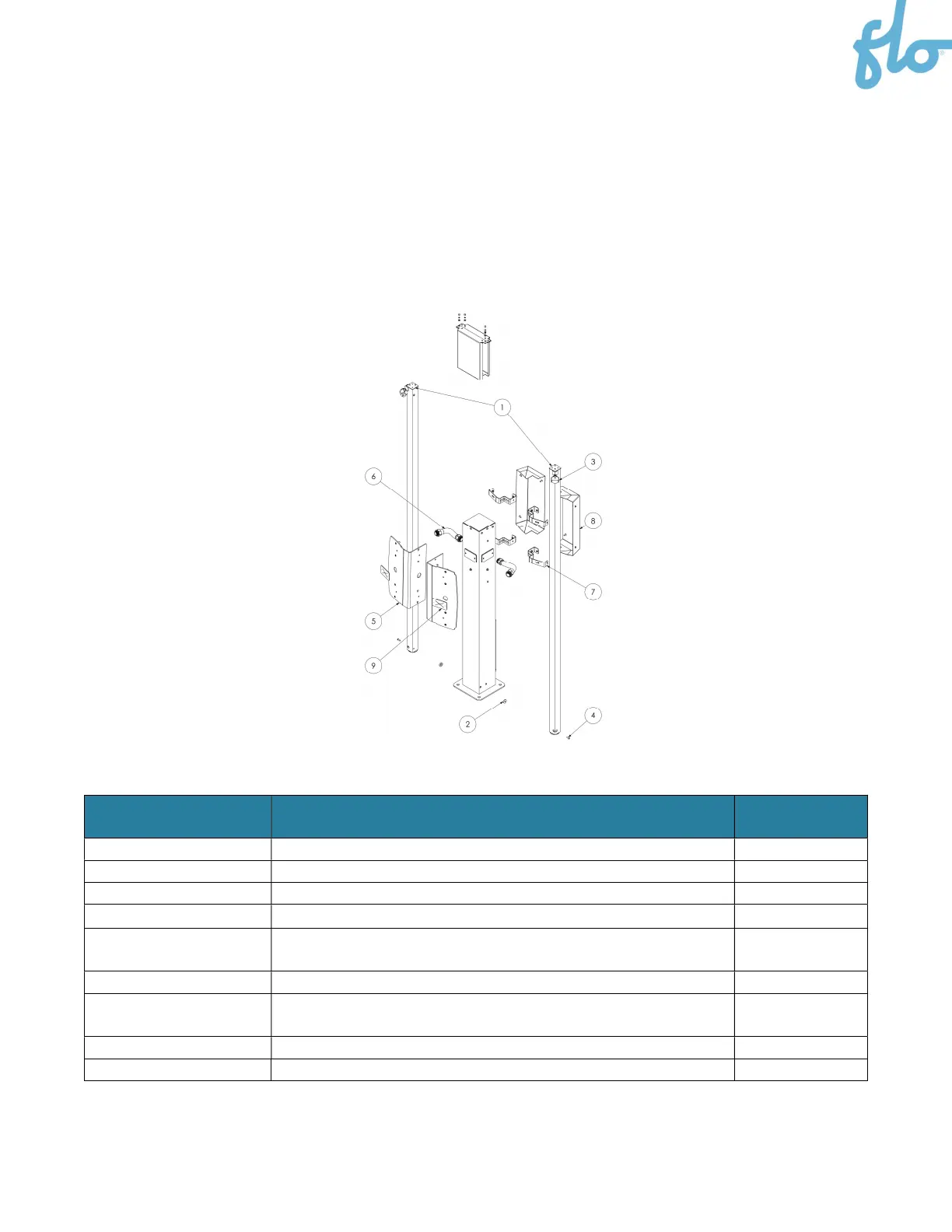

The table below describes the material included with the EV charger. Use the number in the table to refer to
the material in the image.
Image Reference
Number
Included Material Quantity
1 Cable management system columns and cable clamp 2
2 Round spacing shims 2
3 Self-adhesive rubber band 2
4 ¼-20 screws (1’’) (max. torque: 90 LB-IN [10.0 N-M])
2
5
Charging station mount brackets (V-shaped mount) and ¼-
20 screws (max. torque: 90 LB-IN [10.0 N-M])
2
6 Flexible tube 2
7
Column mount brackets, ¼-20 nuts, and washers (max.
torque: 45 LB-IN [5.0 N-M])
4
8 Back cover and screws (max. torque: 90 LB-IN [10.0 N-M]) 2
9 Gasket 2
