CAUTION: This pedestal is certified as an electrical enclosure, and any alteration must comply
with local regulations.
6.3. Dual Back-to-Back Charging Station Installation
The section below contains information and instructions on how to install the cable management system on a
back-to-back electric vehicle (EV) charging station installation.
6.3.1. Required Material

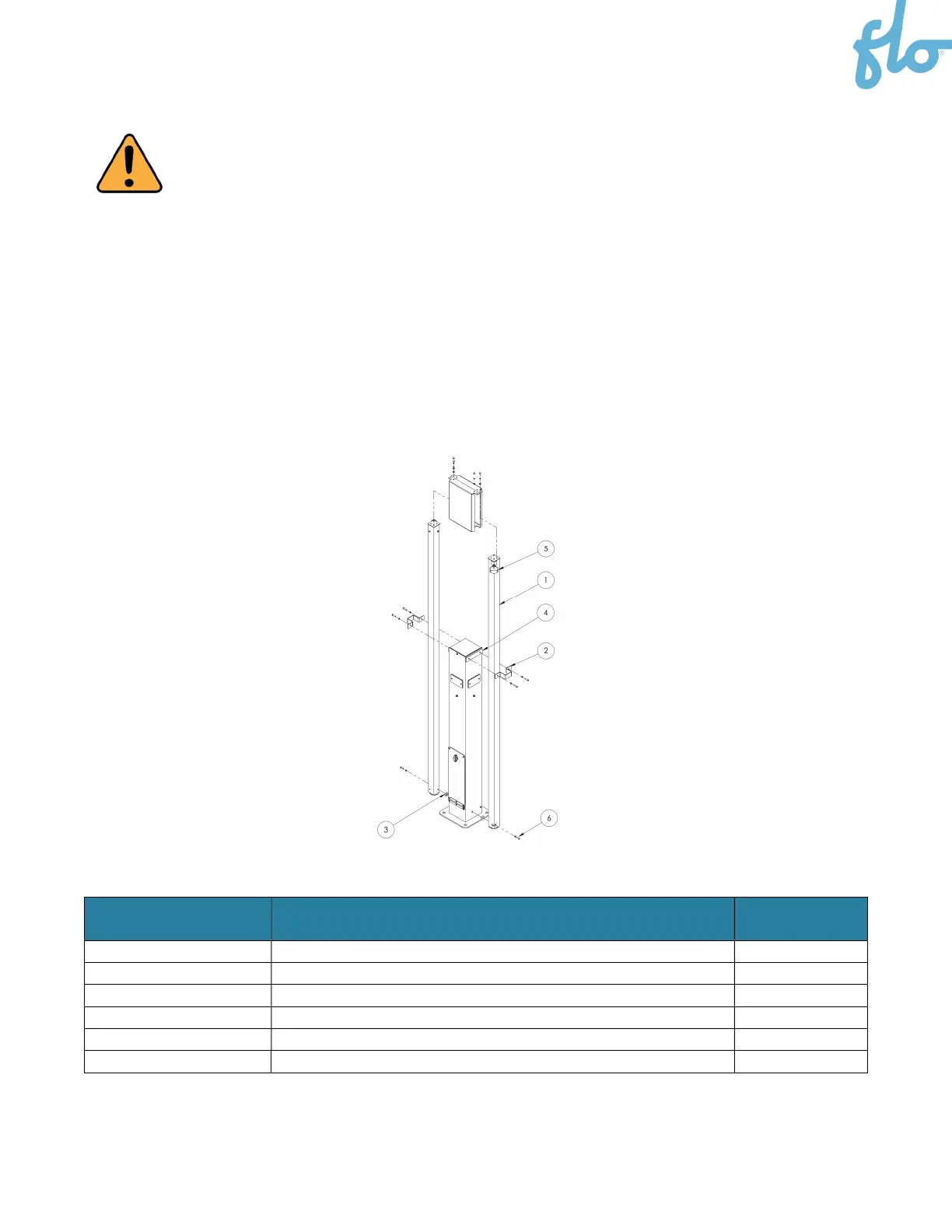

The table below describes the material included with the EV charger. Use the number in the table to refer to
the material in the image.
Image Reference
Number
Included Material Quantity
1 Cable management system columns and cable clamp 2
2 Top mounting brackets 2
3 Round spacing shims 2
4 Rectangular spacing shims 2
5 Self-adhesive rubber band 2
6 ¼-20 screws (1’’) (max. torque: 90 LB-IN [10.0 N-M]) 6
