6.2.2. Before Getting Started

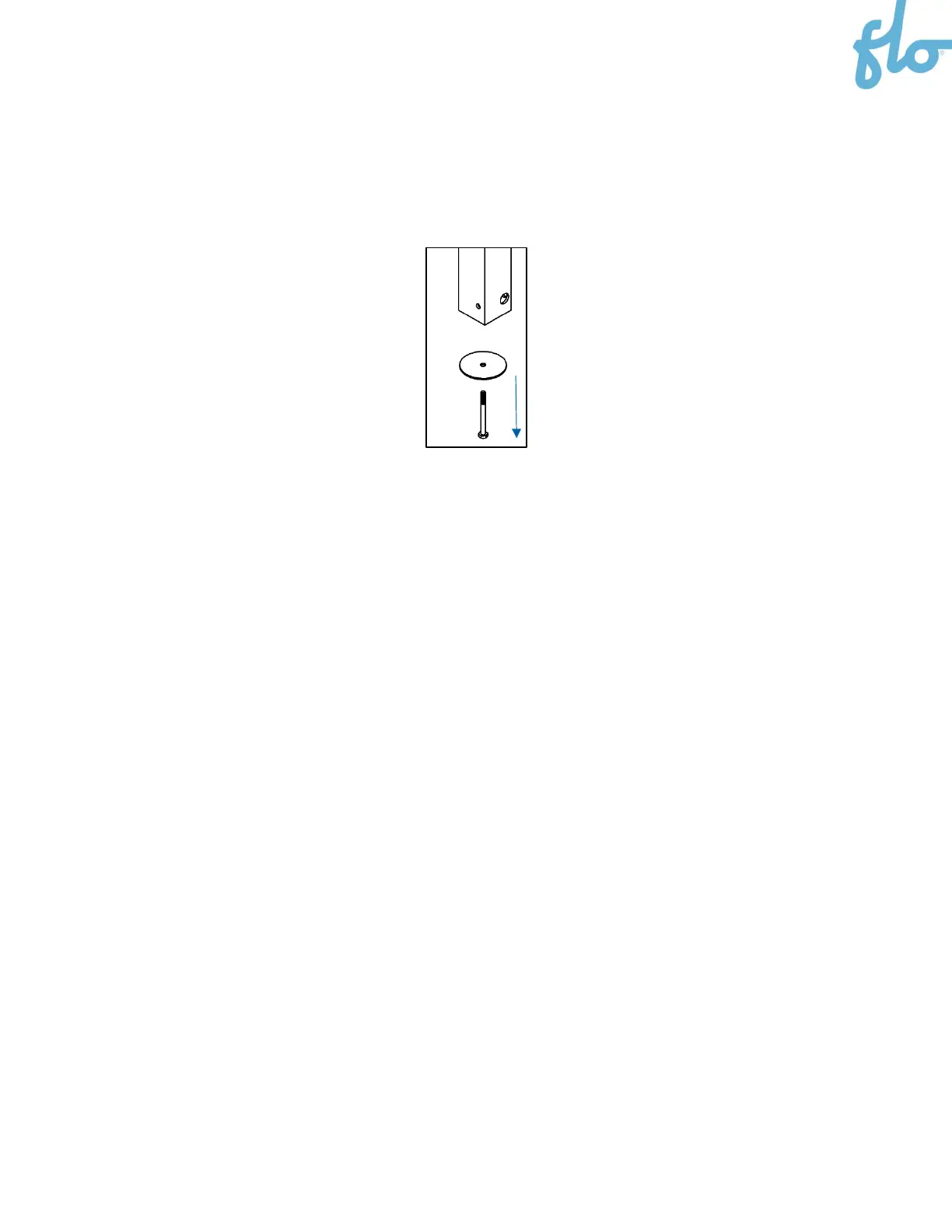

1. Make sure to remove the security screw used to hold the counterweight during transport when unpacking
the Cable Management System (CMS).
2. Install a cable management system on a new station OR install a cable management system on an
existing station by following the steps below:
6.2.2.1. Before Installing a Cable Management System on a New Single
Charging Station
1. First, install the pedestal and the charging station. Refer to the Installing the Pedestal and Charging
Station section for more information and the CoRe+ MAX Installation Guide as needed.
2. Then, install the cable management system as indicated below. Use the ¼-20 screws provided in the
package.
OR
6.2.2.2. Before Installing a Cable Management System on an Existing
Single Charging Station
1. Install the mount bracket for the column with the cable management system and the empty column.
