3.4.2. Cascading Kit Breaker Locks
The breaker lock kit (part number ASME0539) is a separate kit to be assembled on the breaker after
completing the wire connection.
NOTE that the breaker lock kit is only intended for the 100 A circuit cascading kit configuration (part number
ACPE01100). Refer to the section above for more information.

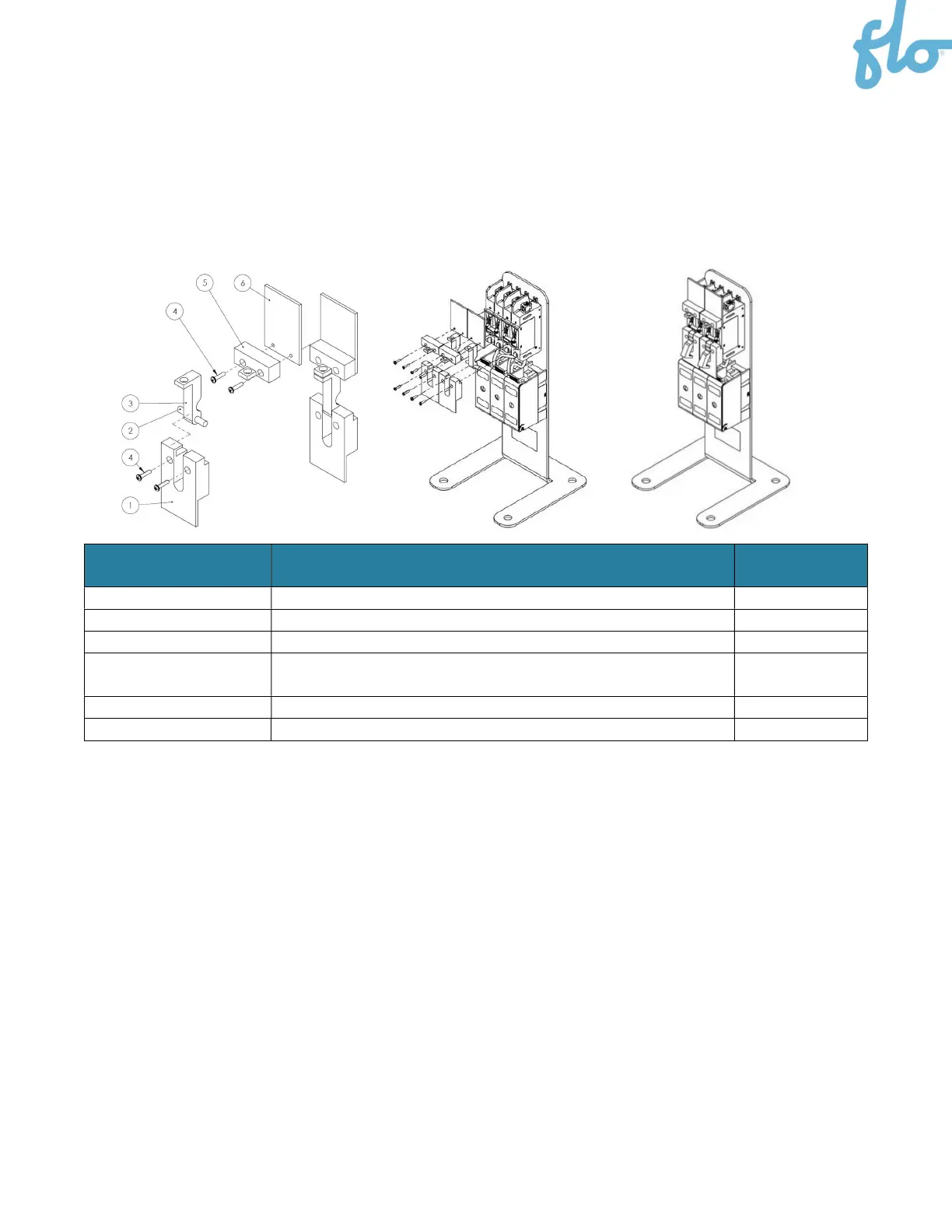

Image Reference
Number
Breaker Lock Kit - Included Material Quantity
1 Breaker lock pivot 2
2 Breaker lock pin 2
3 Breaker lock arm 2
4
18-8 stainless steel pan head Phillips machine screw, 6-32
thread, 5/8” length (max. torque: 8 LB-IN [0.9 NM])
8
5 Breaker lock stopper 2
6 Breaker lock upper cover 2
