17

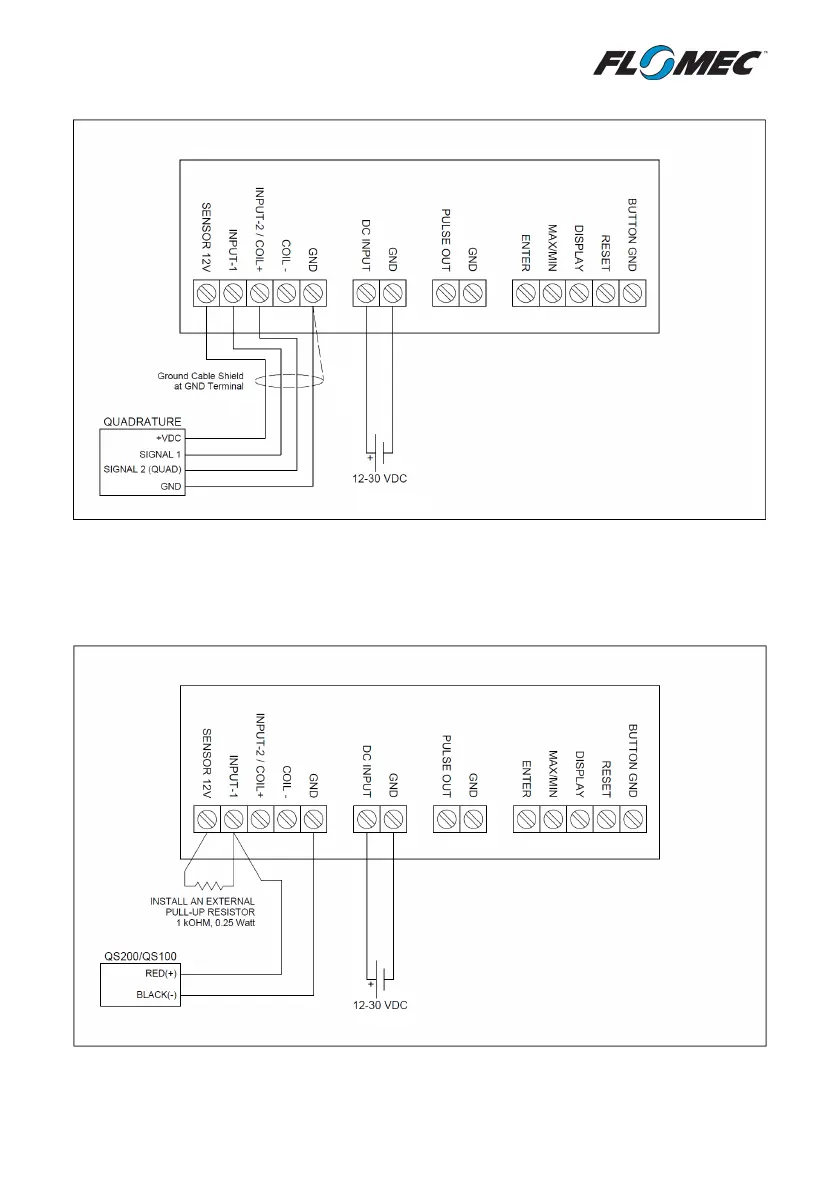

4.2.5 Quadrature Pulse Input (Hall)
Note: If negative flow is displayed during “forward flow” conditions, swap the wiring
connections for signal 1 and signal 2 (Quad).
4.2.6 QS200 / QS100 2 Wire Pulse
