3.2 Machine Overview

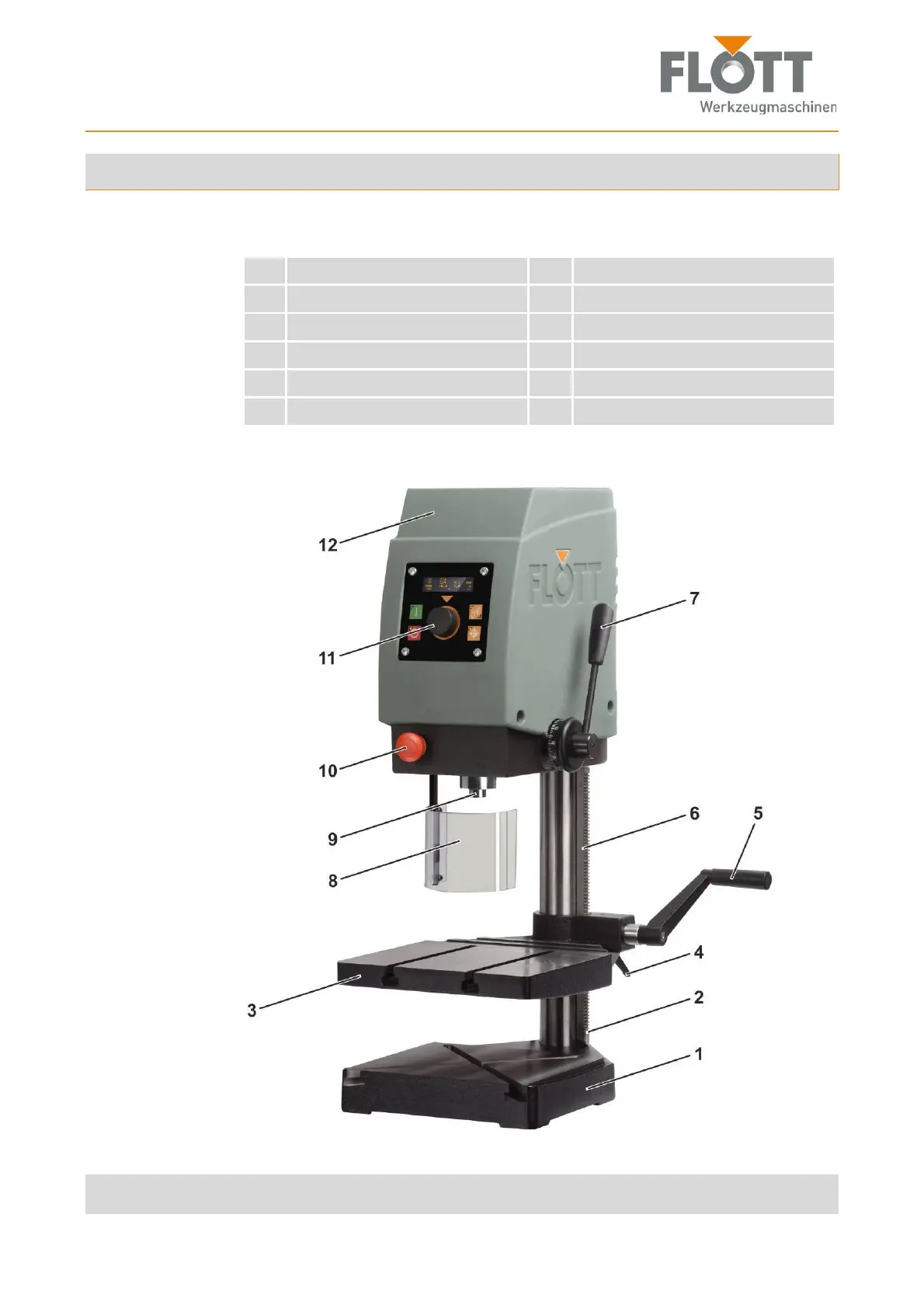

The following figure shows the individual outer components are shown, which
may be different depending on the machine type.
1 Machine base 7 Drill lever
2 Pillar 8 Drill guard
3 Arm / drilling table 9 Spindle
4 Clamping lever 10 Emergency stop button
5 Hand crank 11 Operator panel
6 Toothed rack 12 Protective hood
Machine type: TB 15 Plus
