Installation of the Machine
212601 14/03/2023
27
4 Installation of the Machine
The machine usually comes packaged on a small pallet. Bear in mind the
weight of the machine and, if necessary or appropriate, use transport equip-
ment or a second person.
Warning
Danger of falling down of the transported object.
The machine may only be transported by authorized personnel.
Only use transport equipment and transport aids that comply with the rele-
vant safety regulations and have sufficient load-bearing capacity.
The machine may only be fastened, lifted and transported at the designated
points.
Secure the machine against tilting and slipping with suitable transport aids.
Attention
Danger due to swinging loads.
The machine must be transported without swinging. Every contact with ob-
stacles must be avoided.
Make sure that nobody is in the danger zone or under the machine during
transport.

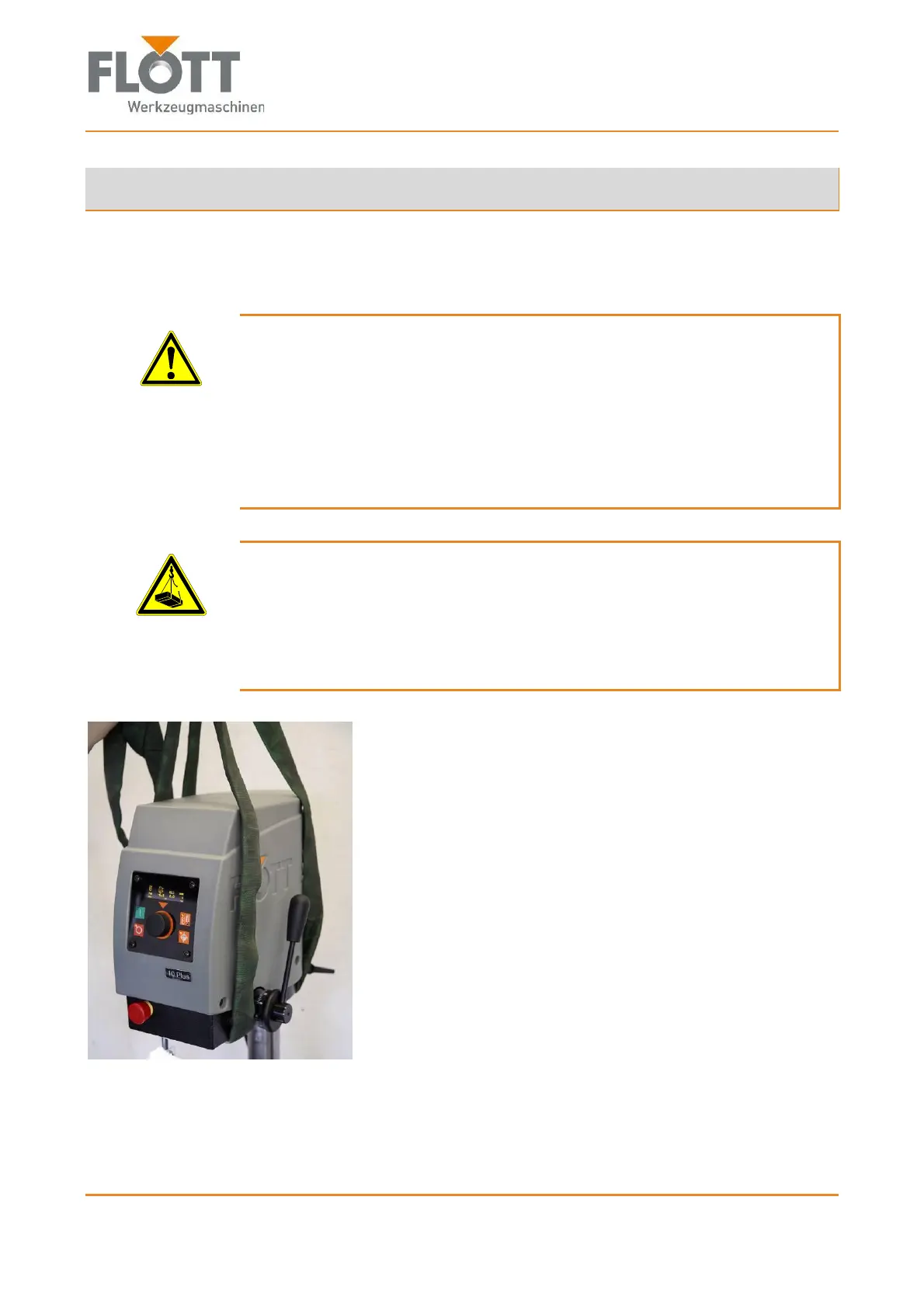

1. Insert the strapsas shown in the figure. Place the straps
in front of and behind the spindle around the machine
head.
2. Use a suitable hoist to carefully lift the machine and
move it to the desired installation location.
Make sure that the machine is raised vertically and not
pulled diagonally to the side.
3. Carefully deposit the machine and remove the straps.
4. Align the machine to its final position.
