Flott TB 10 Plus - Installing the Protective Hood

Maintenance of the Machine
212601 14/03/2023 63

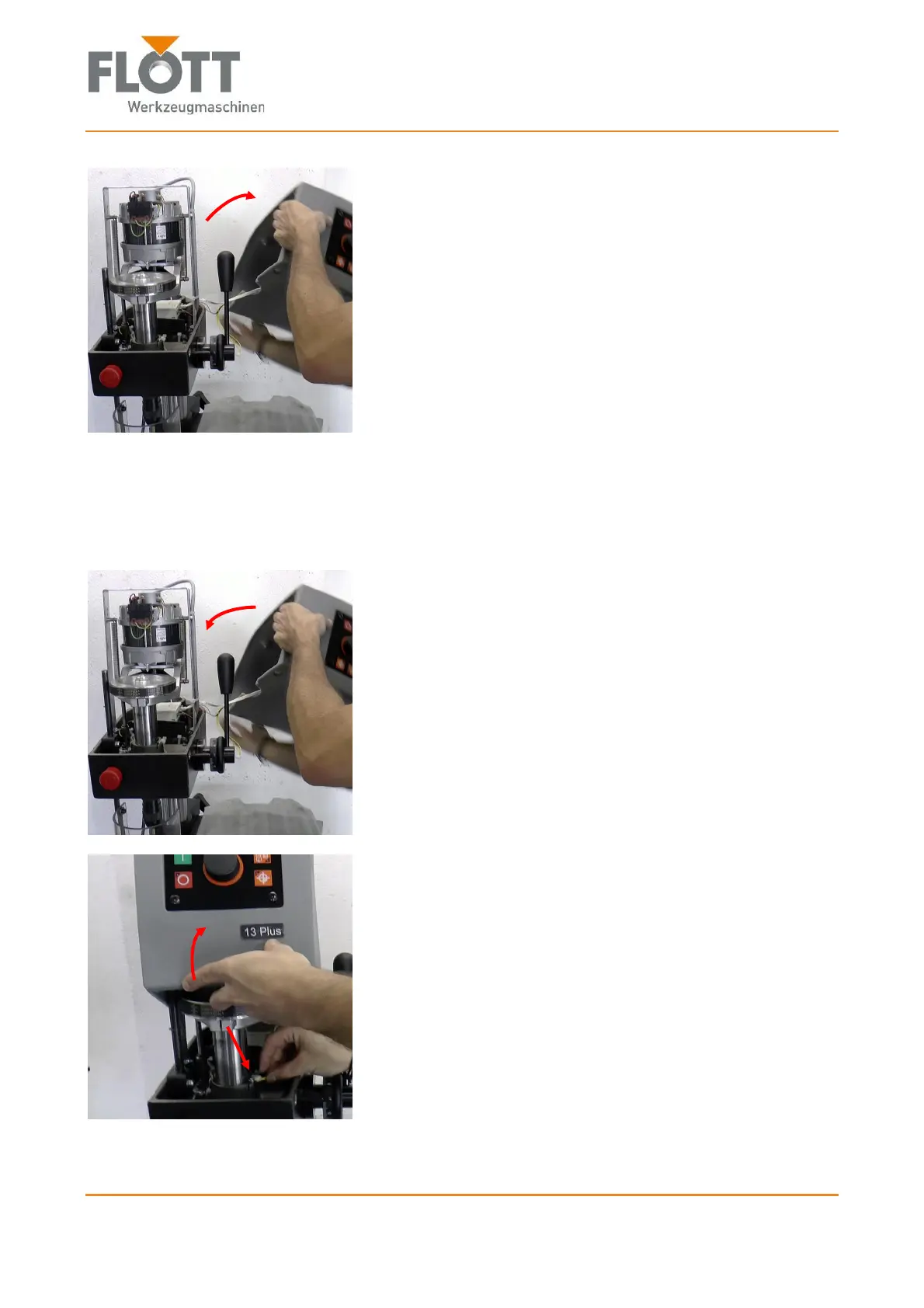

6. Swing the protective hood with the cable connected to the
right behind the drill lever.
7. Place the protective hood on the drilling table.
The head side of the protective hood rests on the drill ta-
ble with the opening facing up.
The protective hood is now dismantled so that the required maintenance and
repair work on the electrical system and the drive unit can be carried out.
9.3.2 Installing the Protective Hood
1. Lift the protective hood off the drilling table and swing it
around the drill lever onto the machine head.
2. Carefully tilt the protective hood slightly backwards and
hold it, so that you can reach under the protective hood
from the front or the side.
3. Insert the plug into the free socket near the quill.
Make sure that
 the plug clicks into place correctly and
 the cable is not jammed between the protective hood
and the machine head.
