Before Using the Machine
212601 14/03/2023
33

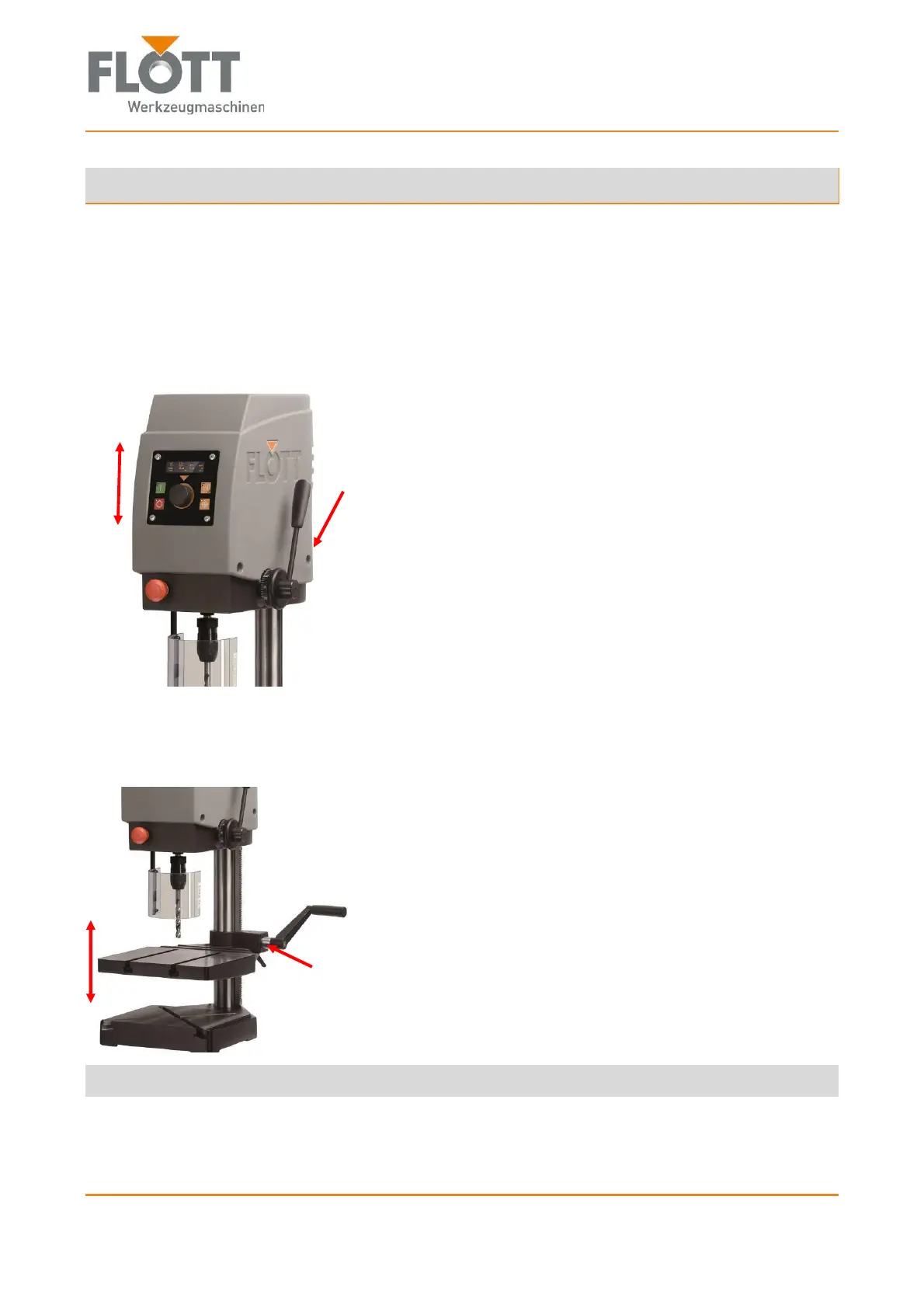

5.2 Adjusting the Height of the Machine
Depending on the design of the machine, the drilling table or the machine
head can be adjusted in height. This is always necessary if the distance from
the drilling spindle to the workpiece has to be changed.
5.2.1 Adjust Turbo Drill and TB 10 Plus in height
These models have no toothed rack adjustment, but they are equipped with a
gas spring in the pillar.
1. Loosen the clamping lever of the machine head on the
rear side of the machine.
2. Move the machine head to the desired height. To do this,
lift it at the front, push upwards and hold in position,
press the machine head down and holding it in posi-
tion.
3. Hand-tighten the clamping lever again to fix the machine
head at the set height.
5.2.2 Adjusting SB 13/15 Plus, TB 13/15 Plus and TBZ 13/15 Plus
in height
These models are equipped with a drilling table with toothed rack adjustment.
1. Loosen the clamping lever of the drilling table on the rear
side of the machine.
2. Move the drilling table to the desired height using the
hand crank
turn clockwise and raise the drilling table,
turn counter clockwise and lower the drilling table.
3. Hand-tighten the clamping lever again to fix the drilling ta-
ble at the set height.
