5.1 Mounting Accessories and Options
Depending on the order, the machine comes without machine vice and drill
chuck. These optional components must be properly installed by the operator
after the machine has been set up.

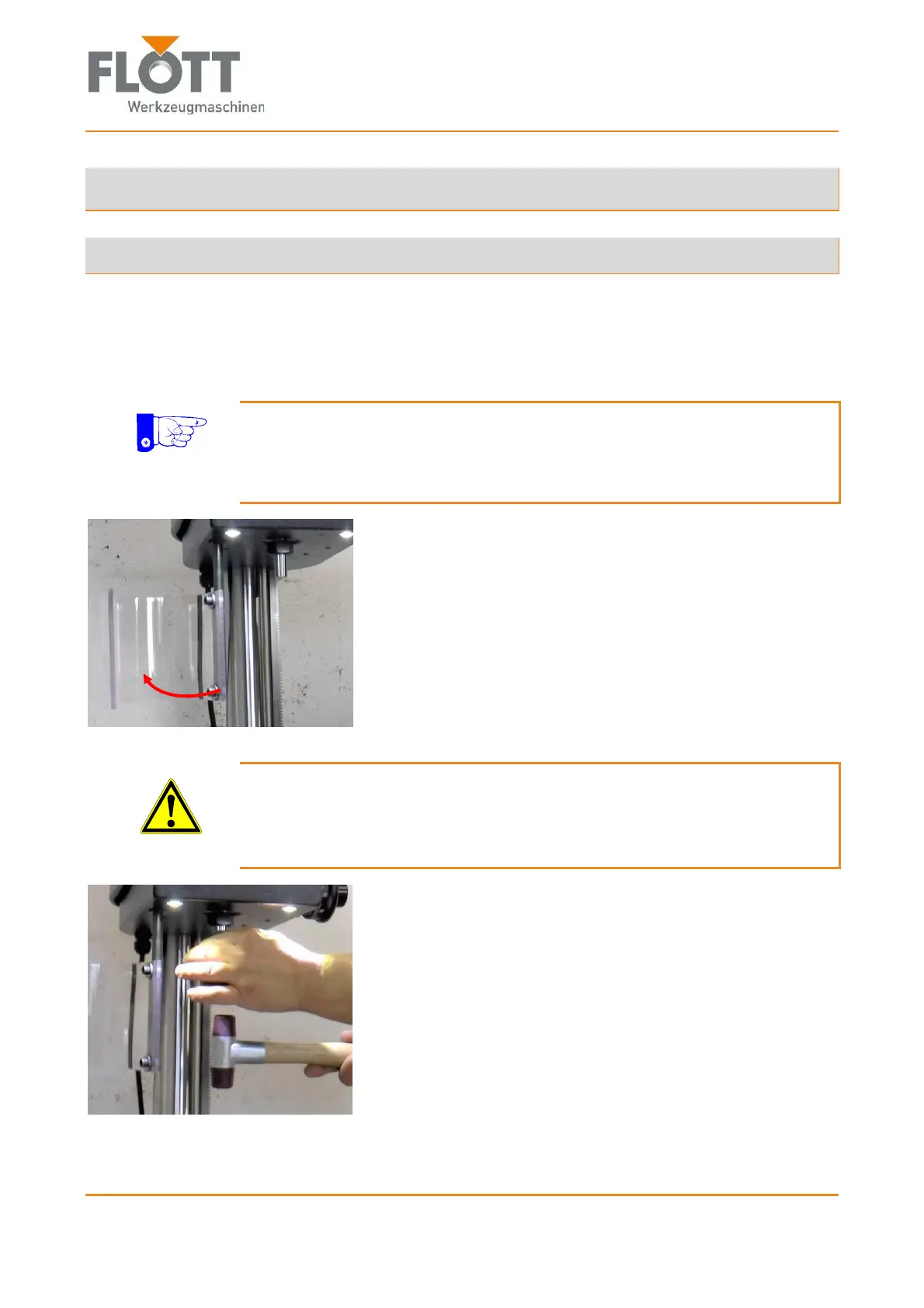

5.1.1 Mount Drill Chuck
Note
Make sure that the appropriate WFA 24 hexagon screw is screwed onto the
spindle with B12 and B16 receptacle. This is necessary for removing the drill
chuck.
1. Manually swivel the drill guide to the left side. This acti-
vates the drill guard switch and prevents the machine
from starting.
2. Check that the cone of the drill chuck and the spindle are
free from contamination and grease.
3. If necessary, add a little spray oil to the cone of the drill
chuck and the spindle.
Warning
Risk of damaging the spindle or the drill chuck.
Never hit the chuck directly with a metal hammer. Insert a rubber mallet or a
wooden board in between.
4. Open the drill chuck as far as possible.
5. Place the drill chuck vertically on the spindle.
6. Attach the drill chuck to the spindle by gently tapping the
drill chuck from below with a rubber mallet.
This jams the chuck on the spindle.
7. Check the tight fit of the drill chuck by gently shaking and
pulling.
How to disassemble a chuck is described in section
9 Maintenance of the machine, page 58.
