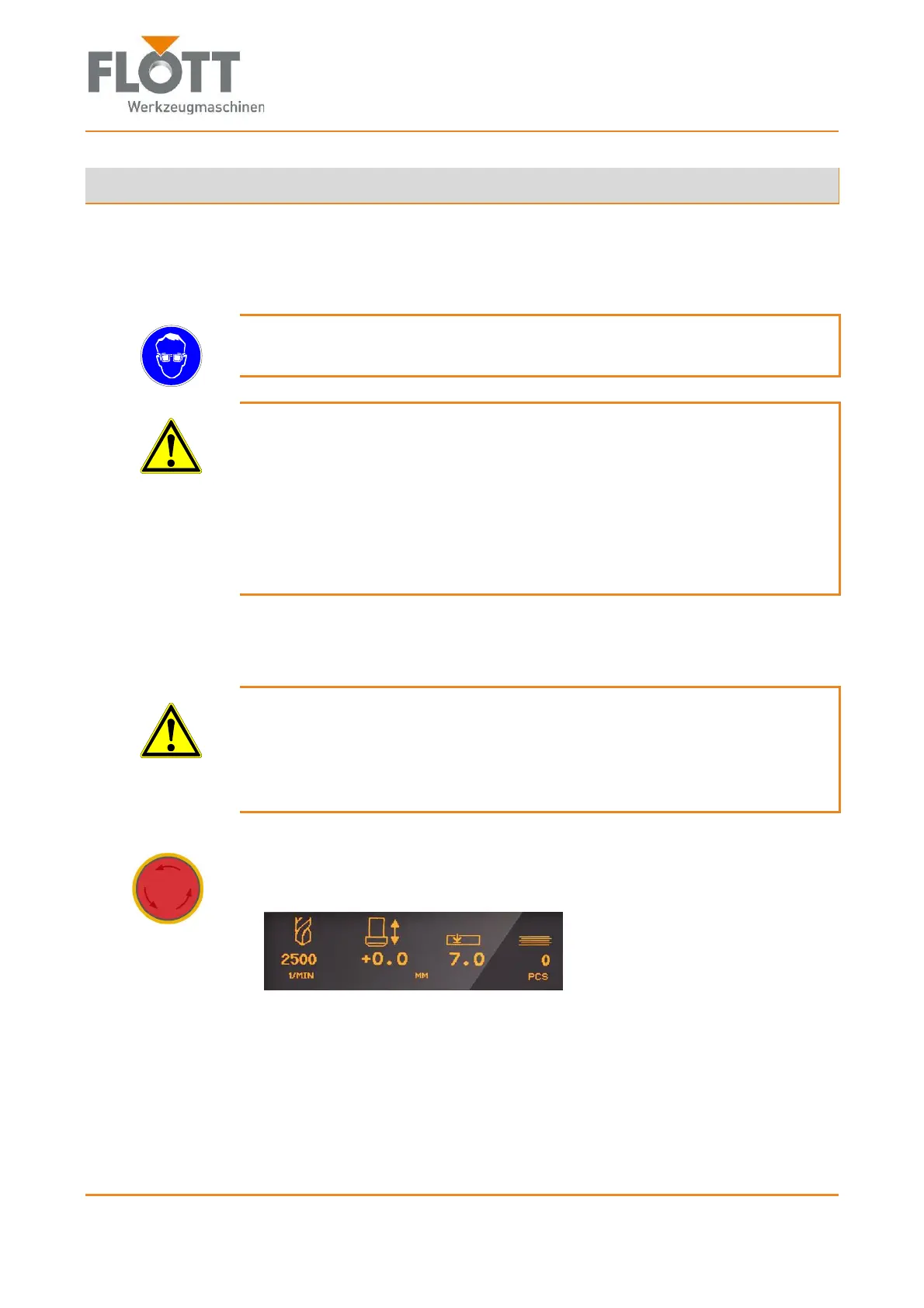

6.3 Drilling Hole with Limiter
You can use the limited if a small series of holes with the same drilling depth is
to be drilled.
Limiter equipped with freewheel ensures the required drilling depth through
mechanical limitation during the drilling operation.
Use safety goggles
Always wear the necessary goggles when working on and with the machine!
Warning
Danger due to fast rotation of the drill spindle.
Fast rotation of the drill spindle can result in hair or clothing being pulled in.
This can lead to serious injuries.
Therefore, during operation of the machine
It is mandatory to wear a hairnet for long hair or a suitable headgear
Never wear gloves, neckties, bracelets, finger rings, chains or other loose
clothing.
1. Carry out all necessary work to prepare the machine (see section 5 Before
using the machine, page 29).
Then the drill is clamped and the machine set to the required height.
Attention
Danger due to repeated loads.
The repeated lifting of heavy weights can lead to unfavourable body loads and
rapid fatigue. When handling workpiece weights > 10 kg, use a suitable hoist
for loading and unloading operations.
2. Clamp the workpiece in the mounted vise.
3. Unlock the emergency stop button.
Then the control system is restarted and the display appears:
After starting the control system, the drilling type Drilling shall always be
preselected.
