Spare Part List
72 14/03/2023 212601
This does not apply to parts no longer manufactured
due to technical innovations!
Order number
Fig. Item Designation SB 13 Plus TB 13 Plus SB15 Plus TB 15 Plus
2 1 Protective hood 212551 212551 212551 212551
2 2 Control panel * 212581 212581 212581 212581
2 3 Stop ring with scale 212545 212545 212545 212545
2 4 Emergency stop push-button * 010053 010053 010053 010053
2 5 Head 212711 212711 212711 212711
2 6 Replacement sight protection 212596 212596 212596 212596
2 7 Ball handle 010048 010048 010048 010048
2 8 Drill lever 120662 120662 120662 120662
2 9 Pinion shaft 212541 212541 212541 212541
2 10 Pillar – 212611 – 212611
2 11 Arm 110144 212707 110144 212707
2 12 Toothed rack 212612 212612 212612 212612
2 13 Clamping lever M8x45 mm 212587 212527 212587 212527
2 14 Hand crank 212559 212559 212559 212559
2 15 Worm wheel * 009657 009657 009657 009657
2 16 Screw * 180145 180145 180145 180145
2 17 Funnel lubrication nipple
DIN3405-D8*
180144 180144 180144 180144
2 18 Stand plate 007534 007534 007534 007534
2 19 Stand pillar 140101 – 140101 –
2 20 Protective hood 140102 – 140102 –
12
7
8
9
1
2
3
4
5
6
12
11
14
10
13
15
16
17
18
11
13
14
20
15
19

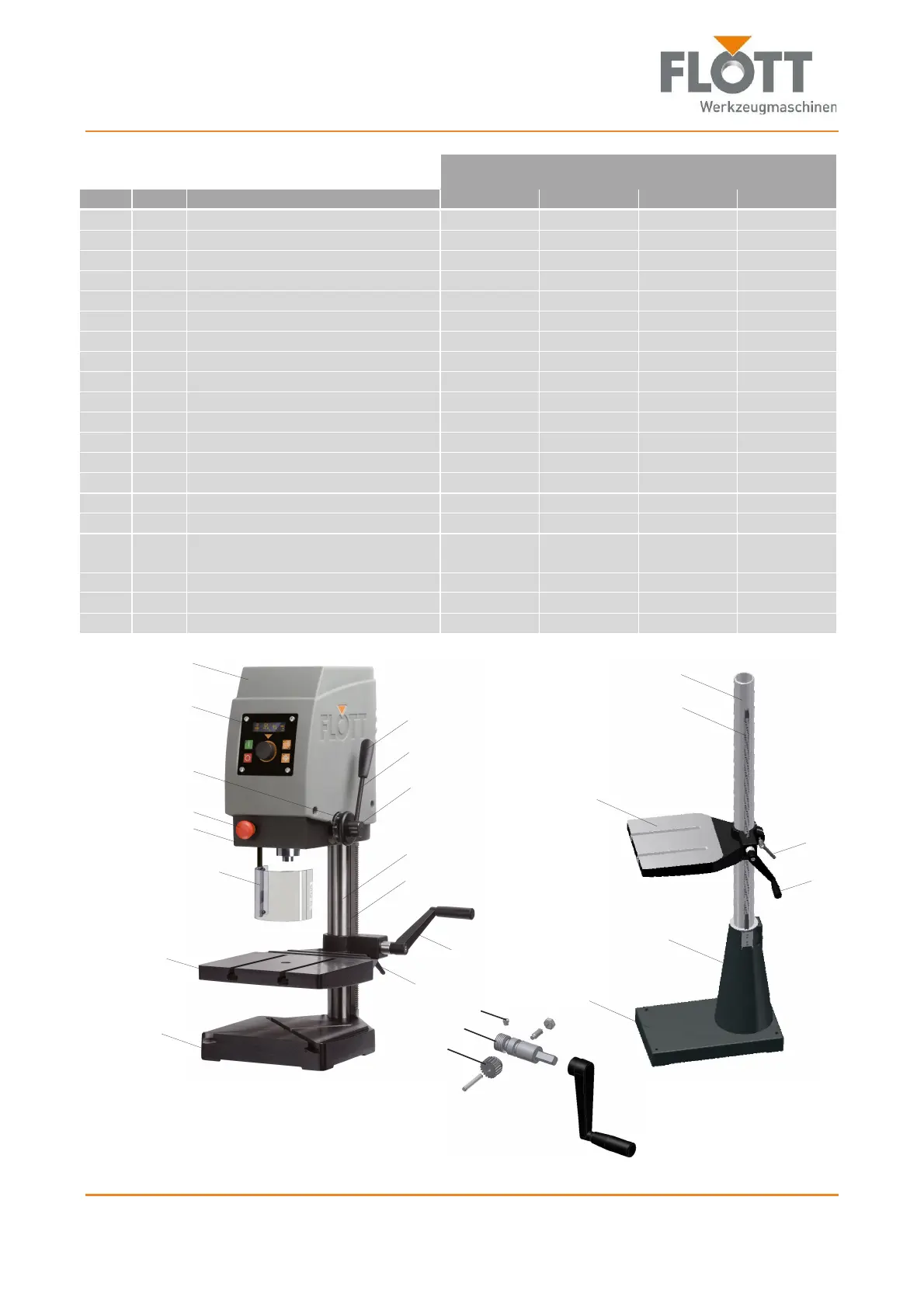

Fig. 2: TB 13 Plus, TB 15 Plus
