EP5 Electro Pneumatic Digital Positioner FCD PMENIM0006-00-A5 12/18
7
Storage Seal (P5/EP5)
P5/EP5 is supplied with all enclosure entry points sealed. The seal is only a storage seal, not to be
used as seal when P5/EP5 is in operation. If Storage Seal is removed or damaged, make sure all
open enclosure entry points are proper resealed before further shipping or storage.
Use circular stickers marked I, S and OUT, supplied on Storage Seal or vapour proof tape.
P5
Remove Storage Seal from connection block, mount positioner on actuator/valve, make
connections according to section 5, (Page 10). Calibrate span and Zero according to section 7,
(Page 13).
Clean any oil/debris off the connecting block, then reseal open enclosure entry ports, use circular
stickers marked I, S and OUT, supplied on Storage Seal or vapour proof tape.
EP5
Follow P5 instructions as above. Remove Storage Seal for conduit entry I
E
, connect input signal
cable and install proper cable gland to secure the units sealing.

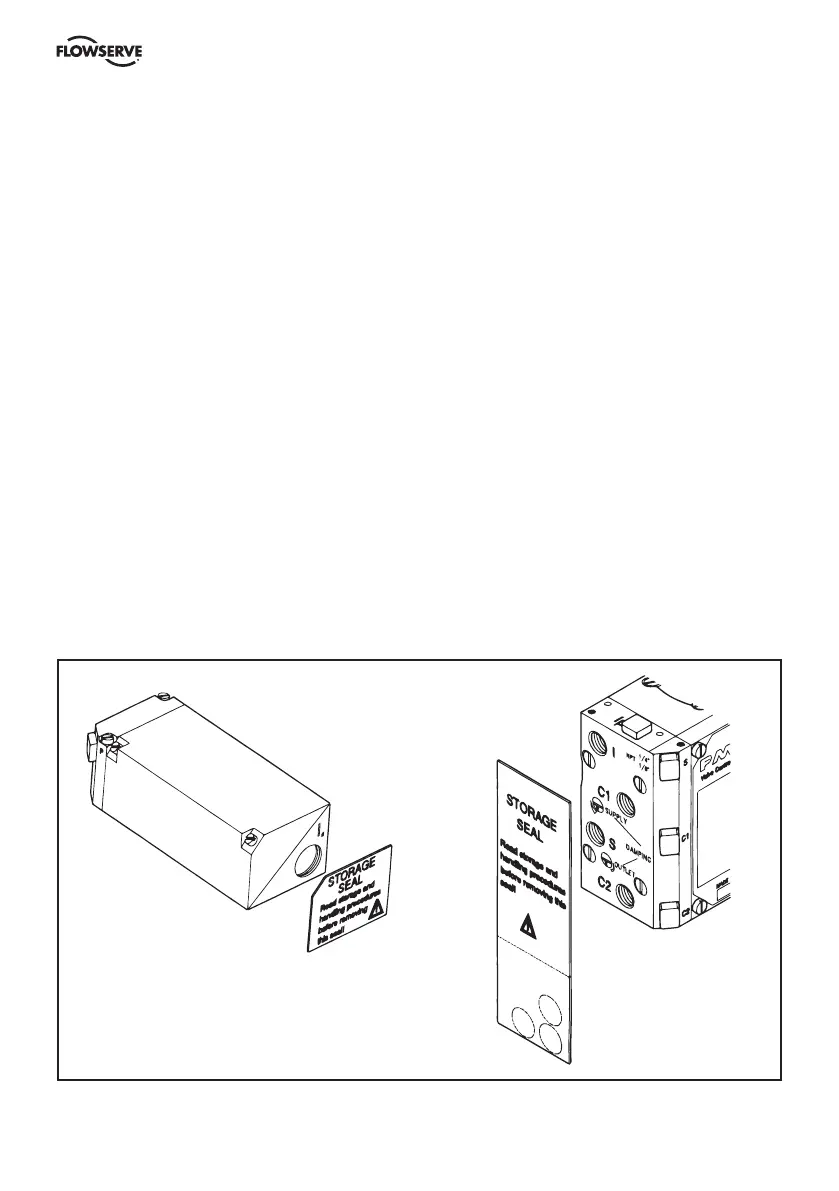

IP5 seal
P5 seal
