Mechanical Assemblies
4.1 Motor
NOTE: Proper motor testing is required when replacing motor. Consult your Limitorque representative
or the Limitorque factory to replace with correct motor.
Table 4.1 – Motor Parts List
Part Number Description Qty.
4-1 Motor cover 1
4-2 Stator 1
4-3 Rotor assembly 1
4-4 Bearing 1
4-8 Bearing preload spring 1
4-9 Setscrew 1

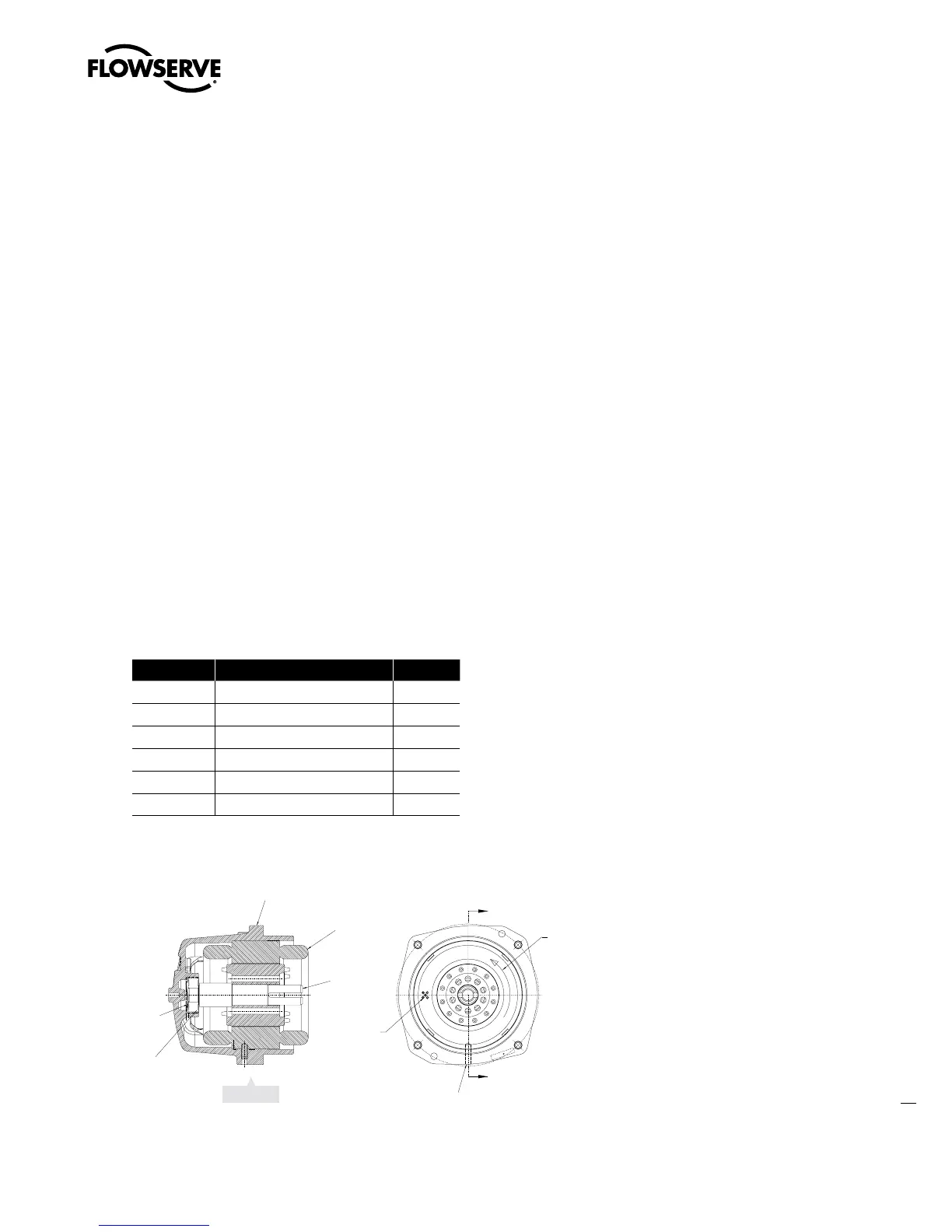

Figure 4.1 – Motor (MX-05, -10, -20, and -40)
A
A
4- 1
4- 2
4- 3
4- 4
Motor
leads
4- 8
4- 9
A ssembly must have
rotation of rotor as shown.
Phase connections are:
T1-Phase 'A '
T2-Phase 'B '
T3-Phase 'C '
View A-A
