Flowserve Limitorque MX-05 - Side-Mounted Handwheel Without Spur Gear Attachment (MX-10, -20, -85, -140, and -150); Figure 4.8 - Side-Mounted Handwheel (MX-10 and -20); Table 4.8 - Side-Mounted Handwheel Parts List (MX-10 and -20)

35
Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
flowserve.com
4.4 Side-Mounted Handwheel Without Spur Gear
Attachment (MX-10, -20, -85, -140, and -150)
Table 4.8 – Side-Mounted Handwheel Parts List (MX-10 and -20)
Part Number Description Qty.
13-1 Handwheel wormshaft 1
13-2 Handwheel worm cap 1
13-3 Ball bearing 1
13-4 Quad ring 1
13-5 Seal retainer 1
13-6 O-ring 1
13-7 Roll pin 1
13-8 Ball bearing 1
13-9 Socket head cap screw 2 (MX-10), 4 (MX-20)
13-10 Side-Mounted handwheel 1

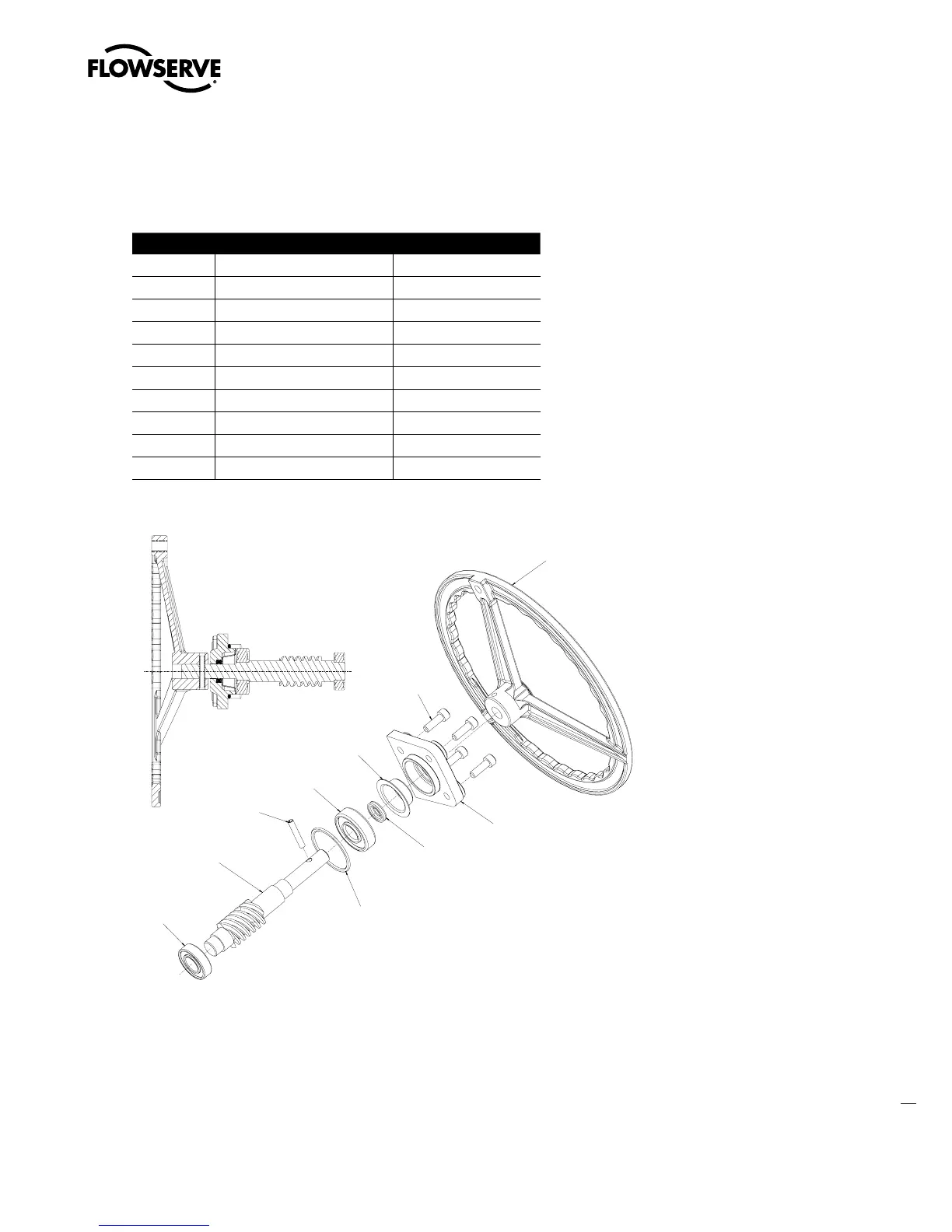

Figure 4.8 – Side-Mounted Handwheel (MX-10 and -20)










c
WARNING: Do not manually operate the actuator with devices other than the installed
handwheel and declutch lever. Using force beyond the ratings of the actuator and/or additive
forces such as cheater bars, wheel wrenches, pipe wrenches, or other devices on the actuator
handwheel or declutch lever may cause serious personal injury and/or damage to the actuator
and valve.
