Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
flowserve.com
4.11 Drive Sleeve (MX-05 and -10)
Table 4.18 – Drive Sleeve Parts List (MX-05 and -10)
Part Number Description Qty.
2-1 Drive sleeve 1
2-2 Worm gear 1
2-3 Encoder drive gear 1
2-4 Ball bearing 1
2-5 Retaining ring 1
2-6 Drive sleeve key 1
2-7 Clutch 1
2-8 Clutch spring 1
2-9 Retaining ring 1

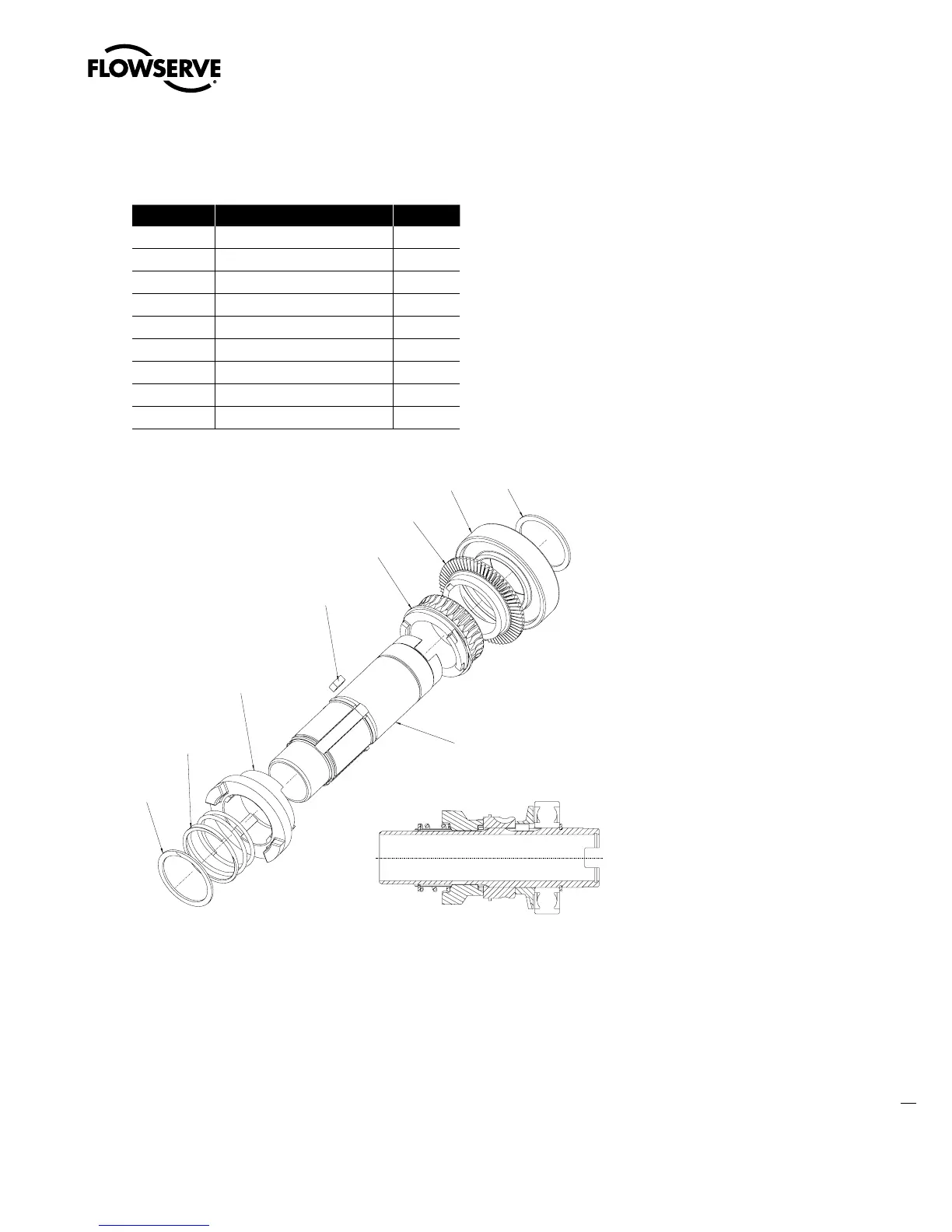

Figure 4.19 – Drive Sleeve (MX-05 and -10)









