Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
flowserve.com
Table 4.14 – Type A1 Thrust Base Parts List (MX-85, -140, and -150) - F25 Flange
Part Number Description Qty.
10-1 Thrust Base Housing 1
10-2 Thrust Base Plate 1
10-3 Thrust Nut 1
10-10 Socket Head Cap Screws 4
10-11 Pipe Plug 1
10-12 Thrust Bearing 2
10-13 Thrust Washer 4
10-14 Quad Ring 2
10-15 O-ring 1
10-17 Socket Head Cap Screws 6

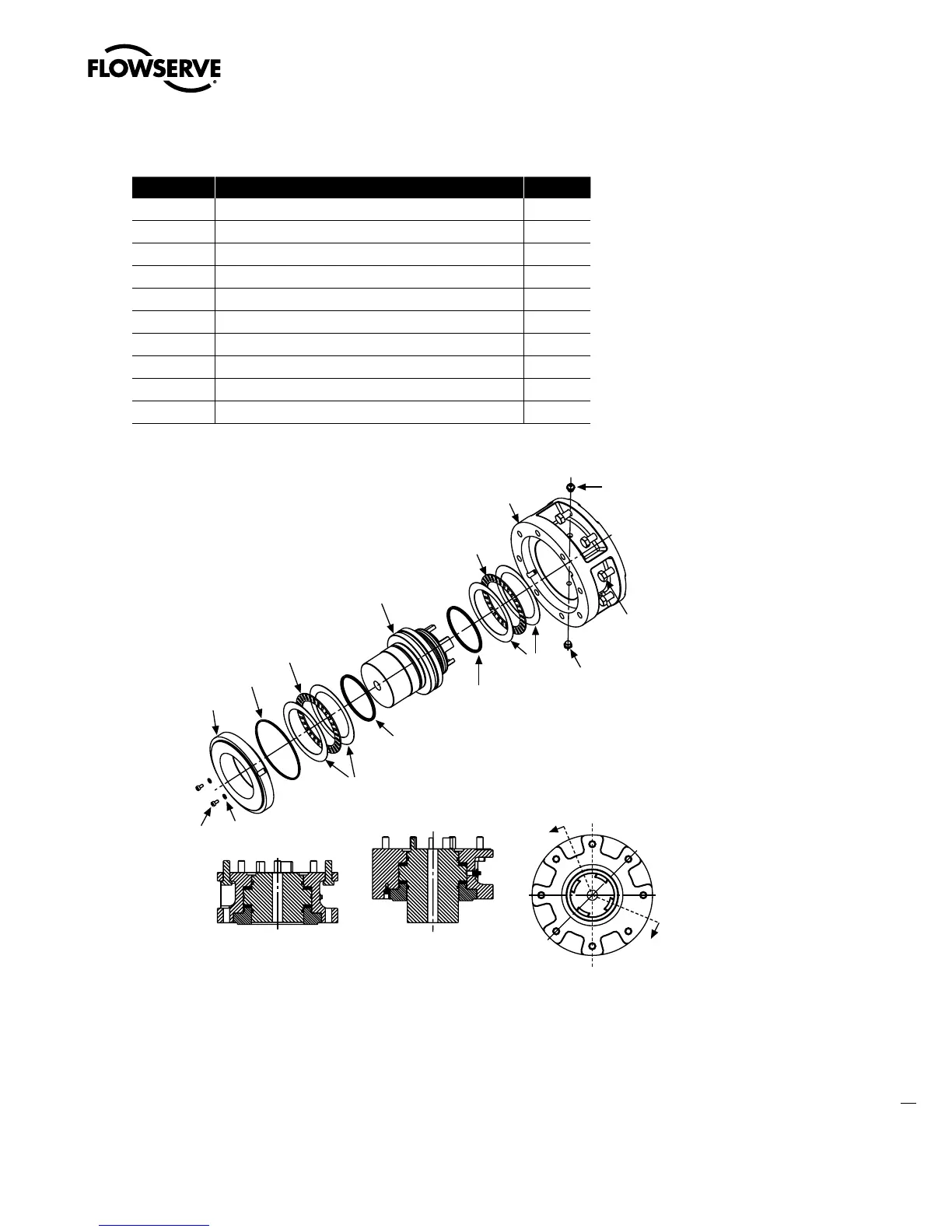

Figure 4.14 – Type A1 Thrust Base (MX-85, -140, and -150) - F25 Flange
4PDLFU
IFBEDBQ
TDSFXT
)PVTJOH
5ISVTU
CFBSJOH
2VBESJOH
5ISVTUOVU
5ISVTU
XBTIFS
5ISVTU
CFBSJOH
0SJOH
4PDLFUIFBE
DBQTDSFXT
8BTIFS
5ISVTU
QJMPU
1JQFQMVH
1JQFQMVH
4FDUJPO""
7JFXTIPXOXJUI
TUBOEBSEOVU
4FDUJPO##
7JFXTIPXOXJUI
FYUFOEFEOVU
"
#
#
"
2VBESJOH
5ISVTU
XBTIFS
