Limitorque MX Maintenance and Spare Parts FCD LMENIM2314-00 – 07/08
26
Table 4.5 – Declutch Parts List (MX-20 and -40)
Part Number Description Qty.
5-1 Declutch cover 1
5-2 Declutch shaft 1
5-3 Declutch cam 1
5-4 Declutch spring 1
5-5 Cam spring 1
5-6 Declutch latch 1
5-7 Latch spring 1
5-8 Cam plate 1
5-9 Retaining ring 2
5-10 Socket head cap screw 1
5-11 O-ring 1
5-12 Socket head cap screw 2
5-13 Dowel pin 1
5-14 Roll pin 1
5-15 O-ring 1
5-16 Dowel pin 1

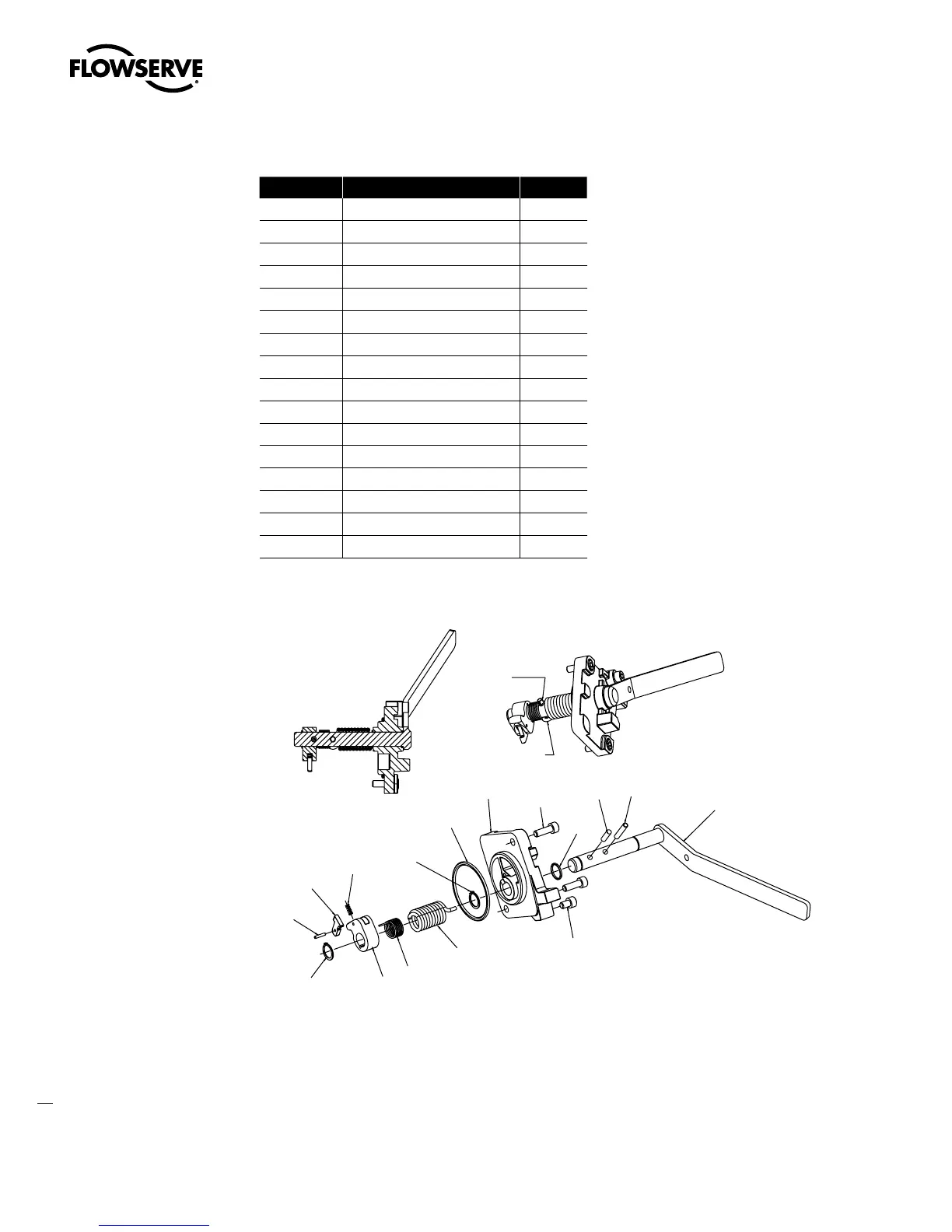

Figure 4.5 – Declutch (MX-20 and -40)
PC. NO. 5-5
Spring,
Declutch
cam
PC. NO. 5- 4
Spring, Declutch shaft
5- 2
5-14
5-13
5-12
5-10
5-11
5- 1
5-15
5- 9
5- 4
5- 5
5- 7
5- 6
5-16
5- 9
5- 3
